access and should be used to minimise the required extension leads, and to bypass obstacles.
4 Installation
FirePro generators must remain disconnected until system is completed and fire control panel
is no longer in a fault or alarm condition. The FirePro Test Module (P/N FP-08800) can be used
to take the panel out of a fault condition.

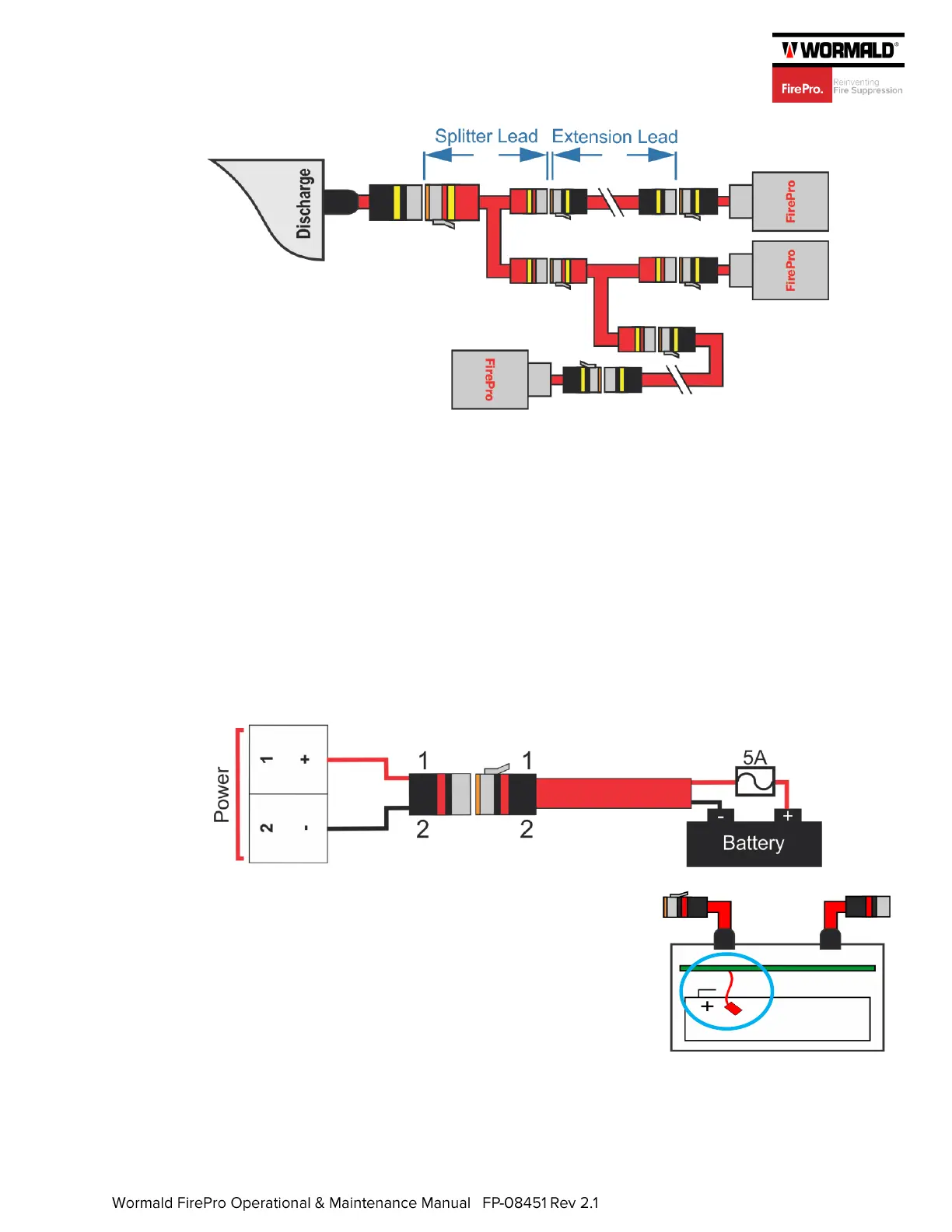

Note: Any required extension leads must be constructed as per the instructions in 3.8 Cabling
Requirements.
Note: It is recommended that one circuit is installed and connected at a time to isolate the
cause of any faults that may occur during installation. The supplied End-of-line plugs and Test
Module may be used to keep the control panel out of a fault condition.
1. Power: When panel has been mounted in a suitable location, connect main supply power
using a FP-14016 Battery Lead to the power input (marked red).
Where a Power Control Module (FP-08870 / 08871) is used,
the battery lead should be connected to the “Primary Power
Supply” Input and the “Battery Backup” output to the control
panel. The internal battery connection will need to be
connected for the control panel to operate.
See FP-08870 / 08871 product manual for further
details.
