Worx Landroid Installation Guide

12
EN
2.3

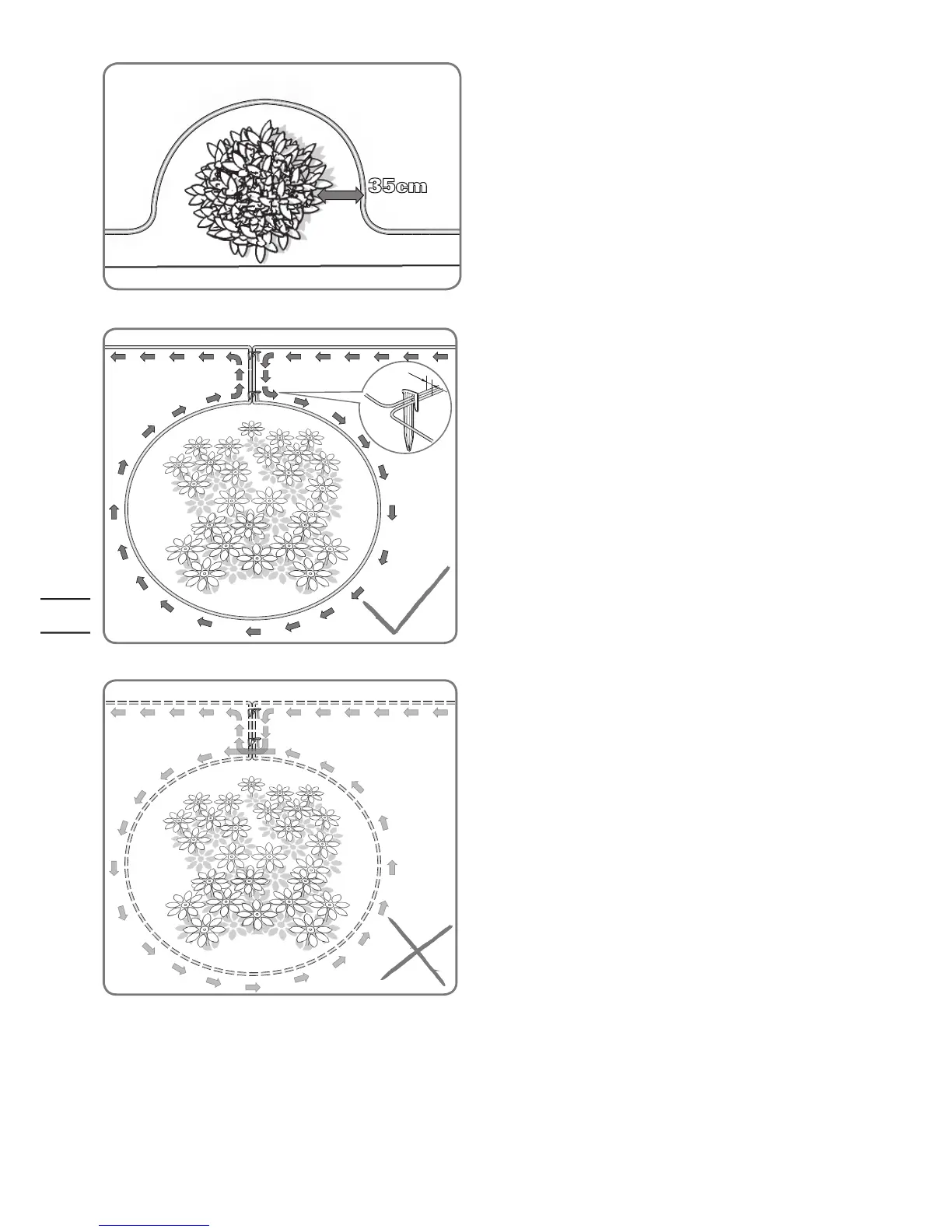

If there is an island that sits inside your lawn where you don't want
Landroid
®
M to go, please follow the path as shown in the picture to
peg your wire.
The wire should run from the perimeter to outline the defined island
and then return back to the perimeter. The boundary wire between
the island and perimeter should be laid close together and held in
place by the same wire peg. During operation, the Landroid
®
M will be
able to freely pass over this part of the wire.
<2cm
<2cm
2.2
A feature, such as flowers or shrubs that are close to the mowing
boundary, should be part of the boundary as shown in the picture.
10cm
35cm
35cm
35cm
35cm
35cm
35cm
>1m

Worx Landroid Specifications

General

Battery Voltage	20 V
Battery Type	Lithium-ion
Rain Sensor	Yes
App Control	Yes
Cutting Height Range	30-60 mm
Battery Capacity	2.0 Ah
Weight	9 kg
Maximum Incline	35%
Connectivity	Wi-Fi
Blade Type	3 floating blades
Noise Level	Approx. 60-65 dB
