Worx WX333 Safety And Operating Manual

Rotary hammer WX333
CHUCK CAN BE DAMAGED IF YOU DO SO.
Inserting a drill bit into chuck. (See B2)
Before installing drill bit, remove mains plug from
mains supply.
Place chuck key into chuck, turn key anti-clockwise to
undo/loosen chuck, insert drill/tool and firmly tighten
chuck by turning key clockwise. Remove key and
replace in Blow Mould Case.

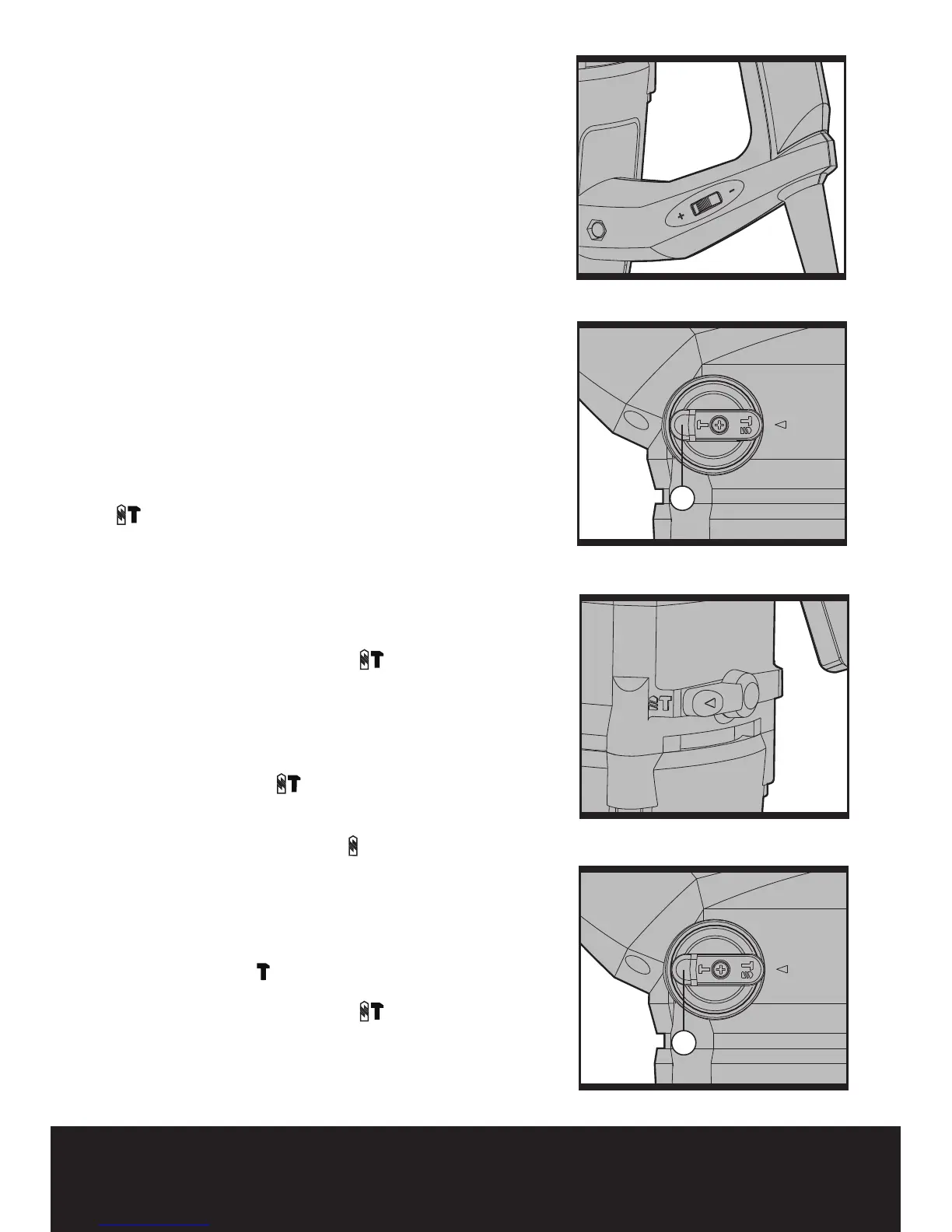

6. OPERATING THE ON/OFF SWITCH (See C)
Depress the switch to start the tool and release it to
stop your tool.
7. USING THE VARIABLE SPEED CONTROL (See
D)
The speed increases as you turn the switch towards
the higher number and decreases on the lower
number.
8. HAMMER DRILL FUNCTION (See E,F)
1) For drilling concrete, masonry etc, press the lock
button (A) and rotate the selector switch to make sign
“ “ point to the triangle. (See E)
NOTE: You must press the selector switch lock button
before adjusting the selector switch. If the selector
switch cannot go into the required position, switch on
your hammer a little, then adjust the selector switch
again.
2) Turn the hammer or drilling action selector switch
pointing to the hammer action “ “ position. (See F)
3) You are now set up for hammer drilling into
masonry.
9. DRILLING FUNCTION (See G,H)
1) Press the lock button (A) and rotate the selector
switch to make sign “ “ point to the triangle. (See
G)
2) Turn the hammer or drilling action selector switch
pointing to the drilling action “ “ position. (See H)
3) You are now set up for drilling function.
10. CHISEL FUNCTION (See I,J)
1) For chipping, grooving or demolition operation,
press the lock button (A) and then rotate the selector
switch make sign “ “ pointing to the triangle . (see I)
2) Turn the hammer or drilling action selector switch
pointing to the hammer action “ “ position. (see J)
3) You are now set up for chisel work using Chisel
action.
!
!
!
& ' (
) * +
, - .
# $ %
!
!
!
& ' (
) * +
, - .
# $ %
!
!
!
& ' (
) * +
, - .
# $ %
!
!
!
& ' (
) * +
, - .
# $ %

Worx WX333 Specifications

General

Drilling	Yes
Chuck type	SDS Plus
Motor type	Brushed
Screwdriving	-
Product design	Pistol grip drill
Idle speed (max)	750 RPM
Chuck capacity (max)	- mm
Impact rate (high speed)	3700 bpm
Drilling diameter in wood (max)	40 mm
Drilling diameter in steel (max)	13 mm
Drilling diameter in concrete (max)	32 mm
Product color	Black, Orange, White
Cable length	2.8 m
Output power	1250 W
Power source	AC
AC input voltage	220 V
Impact energy (max)	5 J

Weight and Dimensions

Depth	180 mm
Width	490 mm
Height	350 mm
Weight	6100 g
