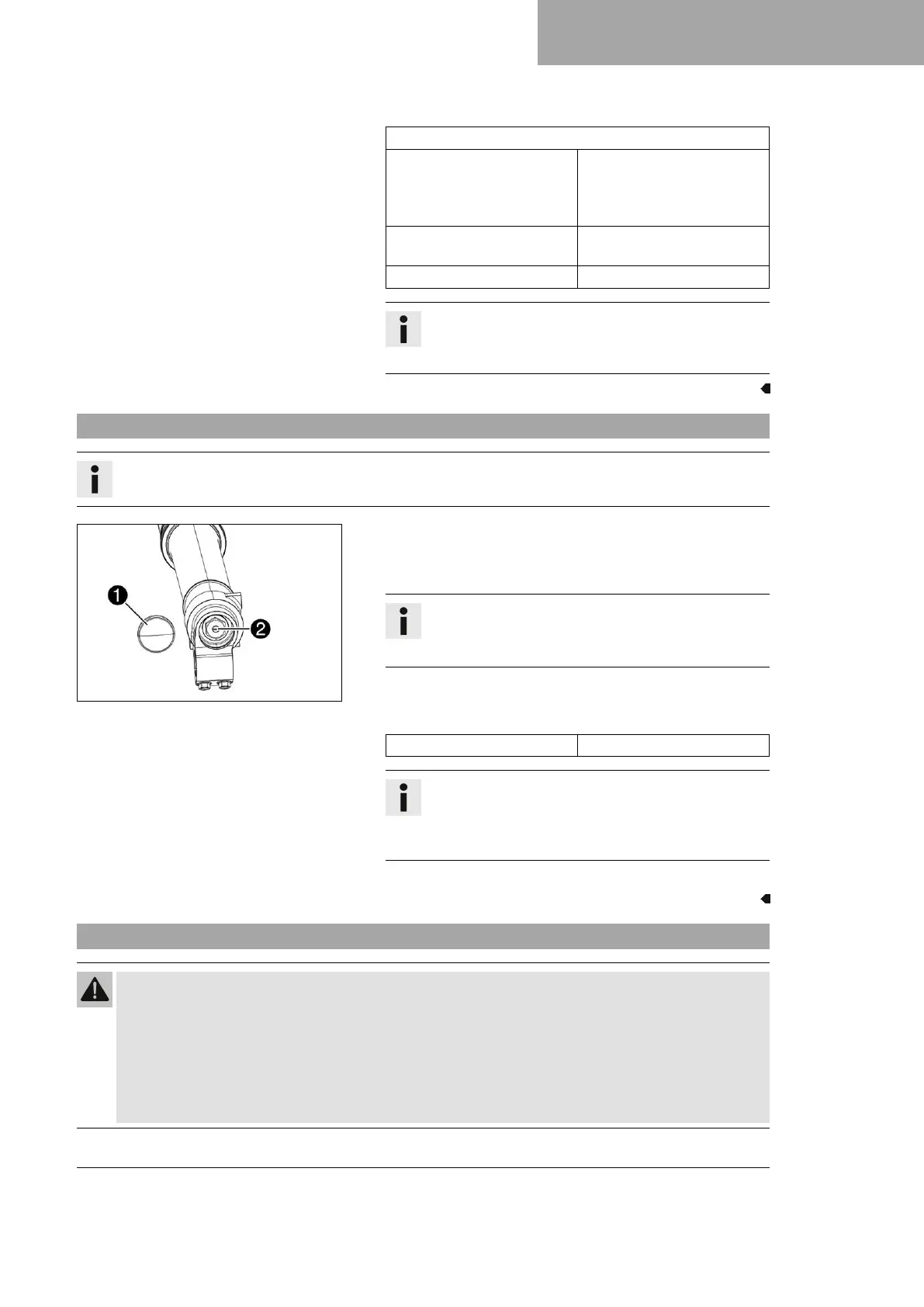

TUNING THE CHASSIS 9
15
Guideline
Compression damping
125/150/250 SX EU,
450 SXF EU
TC 125/250 EU,
FC 450 EU
18 clicks
250/350 SXF EU
FC 250/350 EU
14 clicks
All US versions 15 clicks
Info
Turn clockwise to increase damping; turn counter-
clockwise to reduce damping during compression.
9.4 Adjusting the rebound damping of the fork
Info
The hydraulic rebound damping determines the fork suspension behavior.
M01747-10
Remove protection cap
1
.
Turn adjusting screw
2
clockwise up to the last perceptible
click.
Info
Adjusting screw
2
is located at the lower end of the
right fork leg.
Turn counterclockwise by the number of clicks correspond-
ing to the fork type.
Guideline
Rebound damping 20 clicks
Info
Turn clockwise to increase the damping; turn
counterclockwise to reduce damping when the shock
absorber rebounds.
Mount protection cap
1
.
9.5 Setting the fork air pressure of the positive chamber
Warning
Danger of accidentModifications to the suspension setting may seriously alter the handling charac-
teristic.
Extreme modifications to the suspension setting may cause a serious deterioration in the handling
characteristic and overload components.
Only make adjustments within the recommended range.
Ride slowly to start with after making adjustments to get the feel of the new handling characteristic.
