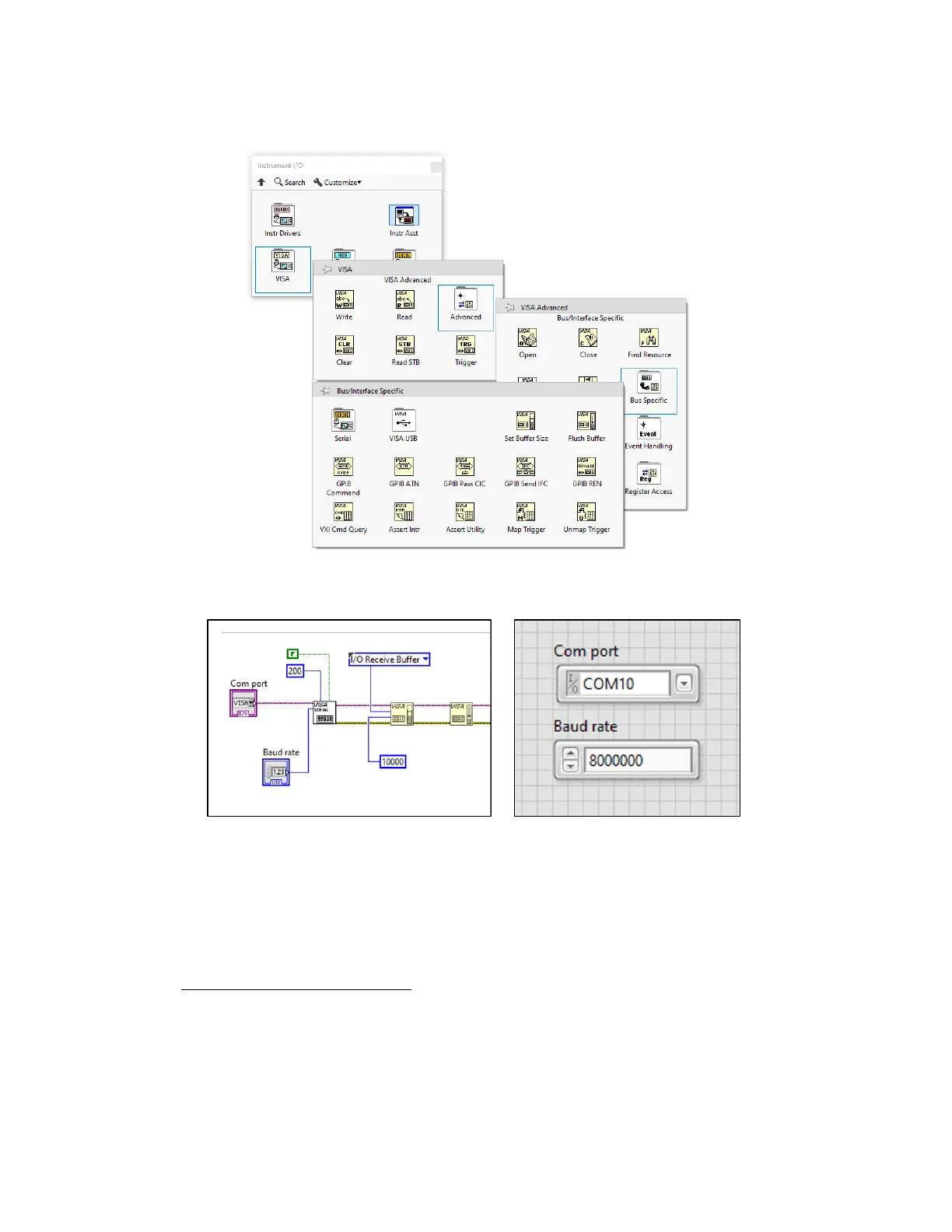

Figure 11: VISA Set I/O Buffer Size and Flush I/O Buffer
Figure 12: Open a VISA port to communicate with BEAR.
To use the write subVIs, connect VISA resource and Error lines to corresponding terminals,
then specify the ID of the target BEAR as well as the address and value of the target registers
to write to. This can be done by creating controls from the corresponding terminals. Multiple
registers can be written at once as shown in figure 14.
Configuration vs Status Registers
Certain registers are Configuration Registers which are persistent after shutdown, and need
