BASE UNIT
150 - 300 Pull Out
Assembly Guide
For Internal Use: FI.WR.INS.029_WKIN00101_BASE_PullOut_150-300_1Dr_Rev4.indd
Page 2

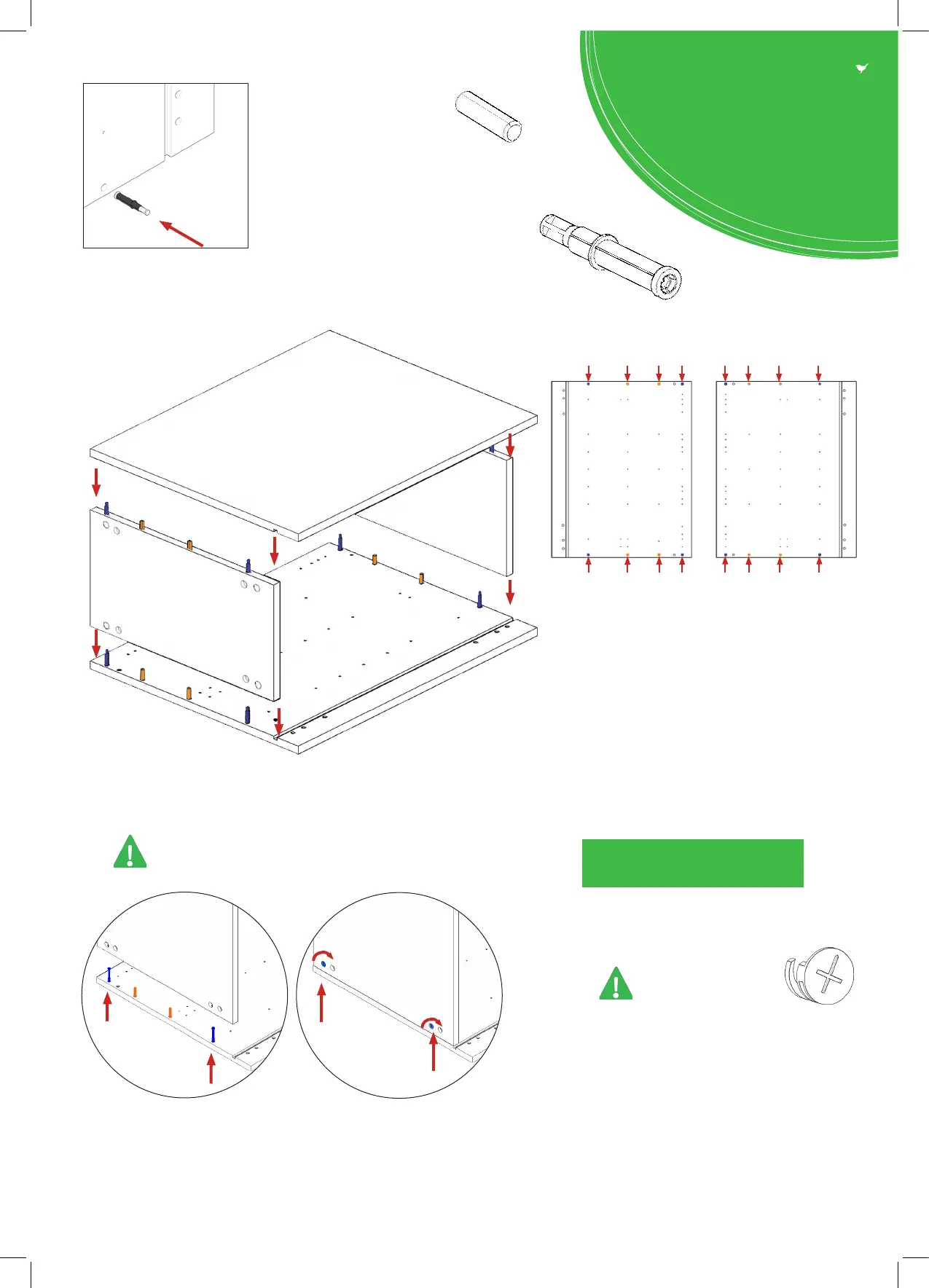

Step 1.
Seat dowel (F) into
holes in both end
panels (B) as shown.
Step 2.
Seat cam dowel (G) into
holes in both end panels (B)
as shown.
Step 3.
Attach panels (C) to panels (B), using
cam dowel (G) & cam lock (H)
(in blue), and also using dowels (F)
(in orange) in positions as shown.
Step 4.
Join panels (C) to (B).
Insert cam lock (H).
Do NOT tighten until Step 6.
All Cam Locks (H) are to be positioned facing the
outside of the unit carcass, for ease of tightening.
Do NOT use power tools with
cam dowel (G) or cam lock (H)
Dowel (F)
& Cam Dowel (G)
location detail
G
G
G
G
G
G
G
G
F
F
F
F
F
F
F
F
B
B B
B
C
C
Seat (G)
cam dowel
into hole as
shown.
B
B
View from underside View from underside
H
G
G
H
