BASE UNIT
150 - 300 Pull Out
Assembly Guide
For Internal Use: FI.WR.INS.029_WKIN00101_BASE_PullOut_150-300_1Dr_Rev4.indd
Page 4
C
B

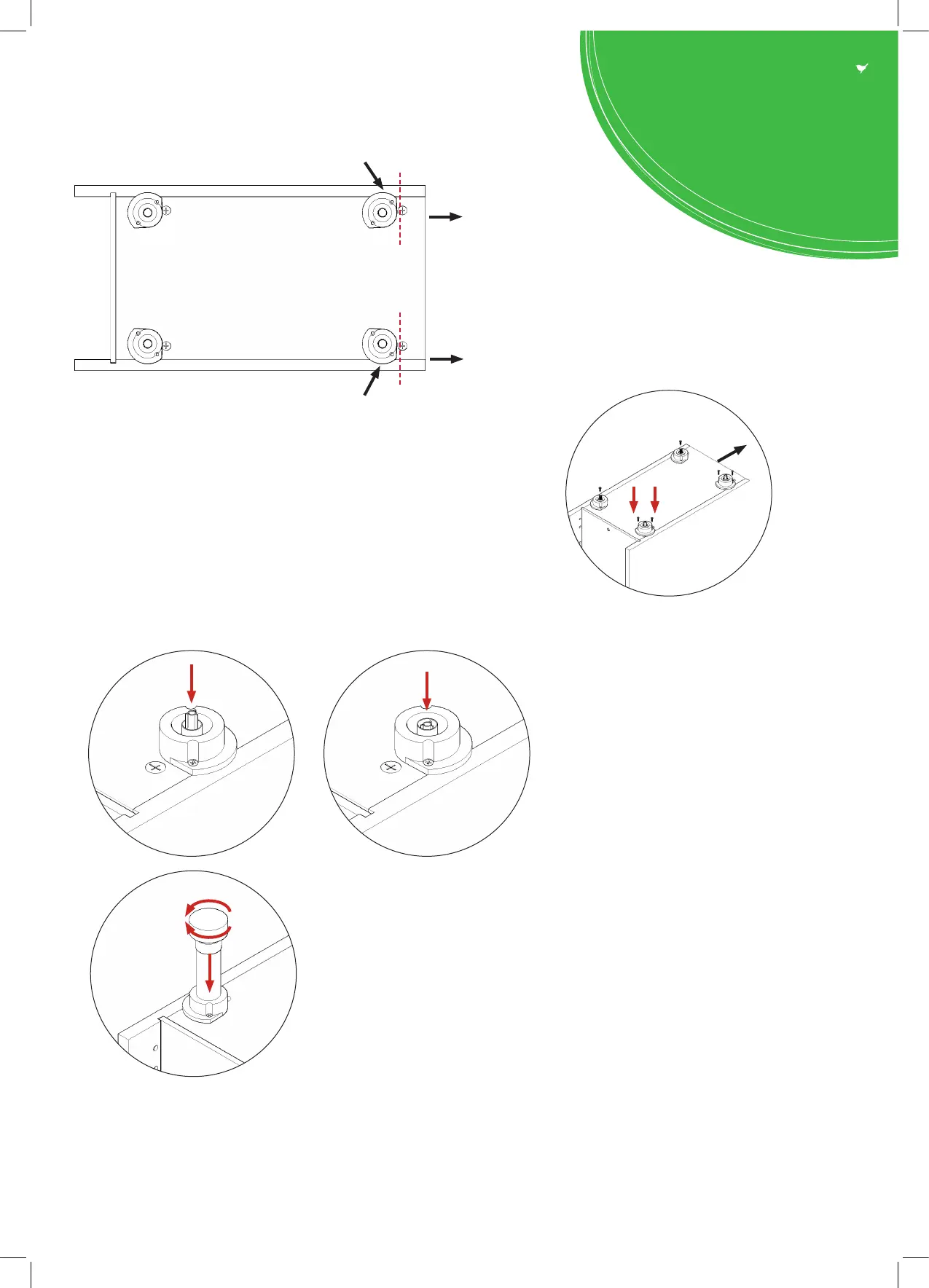

Step 8.
Secure each of the legs into
place with 2 x 15mm screws
(L) per leg.
Step 9.
Lightly hit centre peg of leg
base with hammer until ush.
Step 10.
Push leg rmly down into leg base.
Adjust legs to 155mm before turning carcass
upright. Once in situ level accordingly.
Ensure legs are rotated as shown so that part
of it is supporting the end panels (B).
Front legs should have at edge to the front.
C
B
B
B
B
Front
Front
Front
C
L L
B
Leg Position Diagram
C
To Next Page
