WRIGHT WSR48 - Tracking Adjustments Z

Wright Z
Tracking Adjustments
¾Check and adjust tire pressure

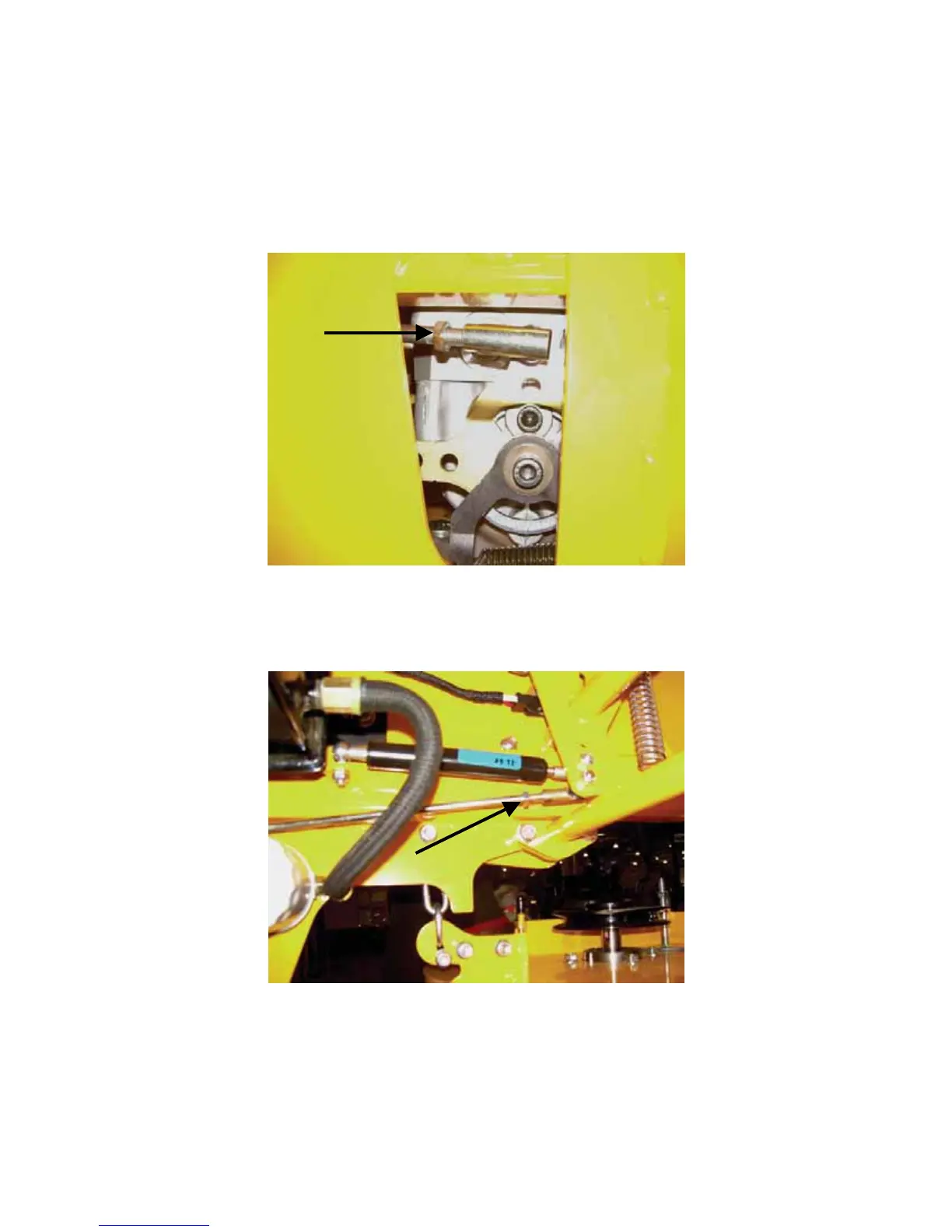

¾Remove rear tires and loosen locking nuts at both pumps. (Fig 1)
NOTE: If motor supports are in rearward holes for the bagging system
then it is not necessary to remove the rear wheels.
¾Replace rear tires
¾Release seat platform latch and raise seat.
¾Loosen front locking nuts at control levers. (Fig 2)
¾Rotate the connecting rod CCW to speed up and CW to slow down.
¾Tighten front lock nut and drive
Figure 1
Figure 2
35
