Deck Height Adjustments
WSS
Blade Adjustments and Height-of-Cut
Before Adjusting the Height-of-Cut be sure of proper air pressure in all four tires and check
for even tire wear. The height-of-cut can be adjusted the following ways:

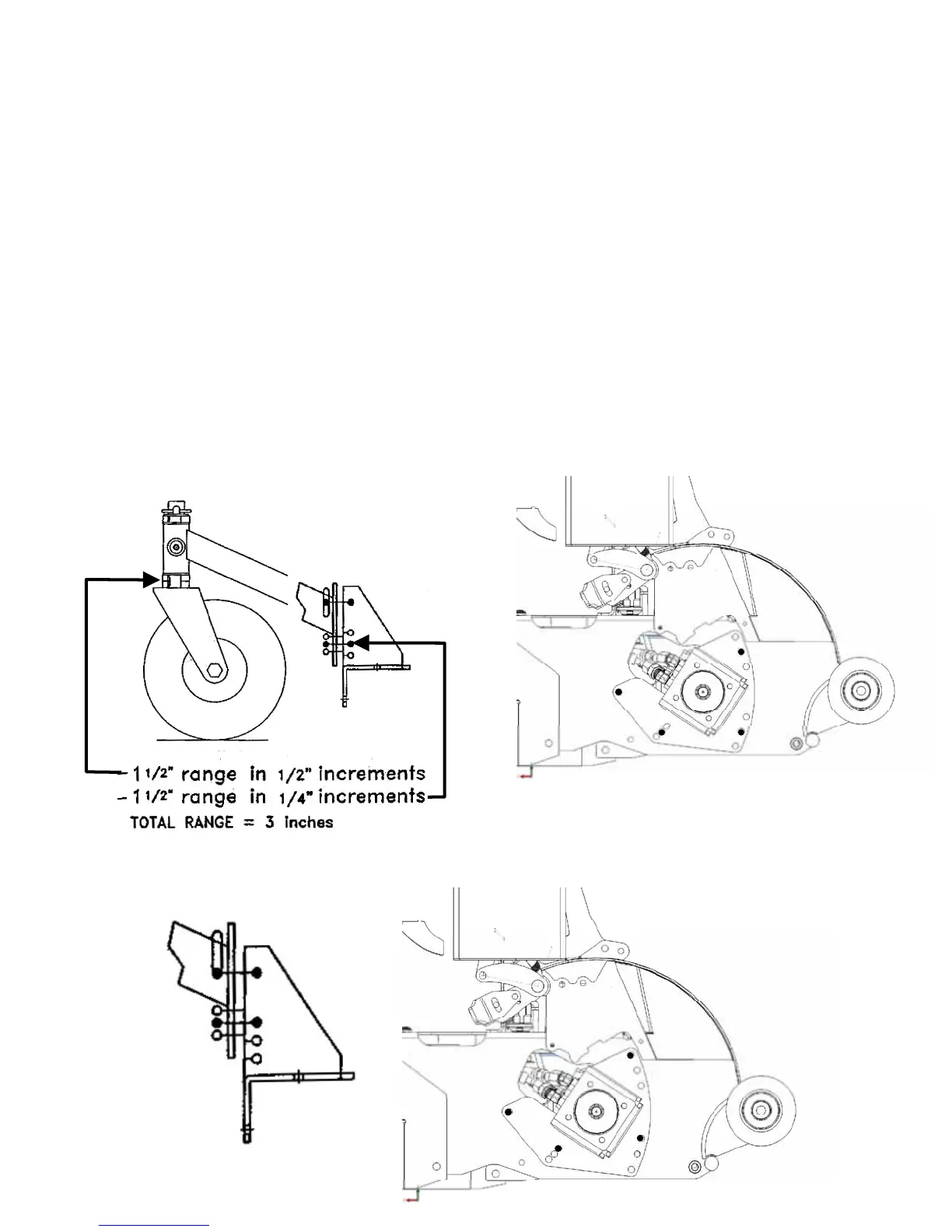

¾Coarse Adjustment: For the coarse adjustment the rear motor support (1) and the front
caster arm (2) should be adjusted at the same time. Adjust the rear wheel motor
supports equally in one of the three settings up or down 0.75" each in a 1.5" total range.
¾Fine Adjustment: Adjust the blades equally in five settings up or down 0.25" each in a
1.25" total range. The shims on the blade bolts are moved from under the spindle to the
top of the spindle. If possible, leave at least one shim at the top and the bottom of the
spindle shaft.
Use the middle holes in tractor frame for cutting heights of 2.5" - 3.75", factory
setting 3”.
Use the highest holes in tractor frame for cutting heights of 1.75" - 3.0".
