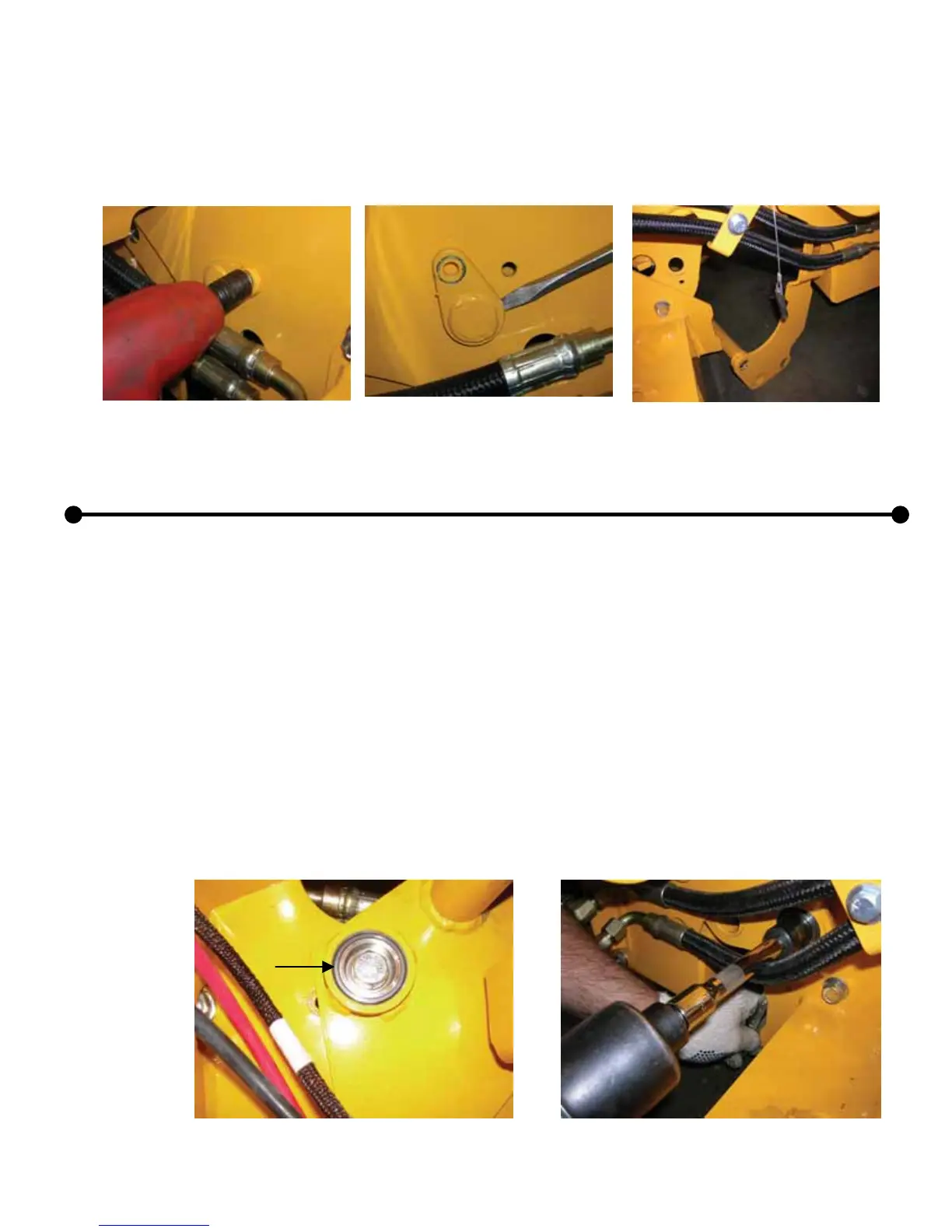

11. Removing the Rear Lift-Axle Pins:
a. Remove both rear lift axle pins (Fig. 10, A); ensure deck weight is resting on
2X4’s.
b. Pry or punch pins to remove (Fig. 10, B). Be careful as mower may shift when
pins are removed.
c. Drop rear lift axle and discard. (Fig. 10, C)
Installation of Improved Deck-Lift System
1. Install New Rear Lift Axle and Rear Pins:
a. Install rear lift axle from the bottom of mower, lift evenly into place lining up rear
pin hole as close as possible.
NOTE: It may be necessary to spread the frame in the front to ease lift axle
into place.
b. Install rear pins from inside of the assembly. The 7/8” machined shoulder of the
pin should fit in the 7/8” hole in the frame sidewall originally used by the old pin
system.
c. Make sure the pin is flush with the face of the housing (Fig. 11, A). Tighten with
¾” socket and wrench (Fig. 11, B)
Fig. 10, C
Fig. 10, B
Fig. 10, A
Fig. 11, A
Fig. 11, B
