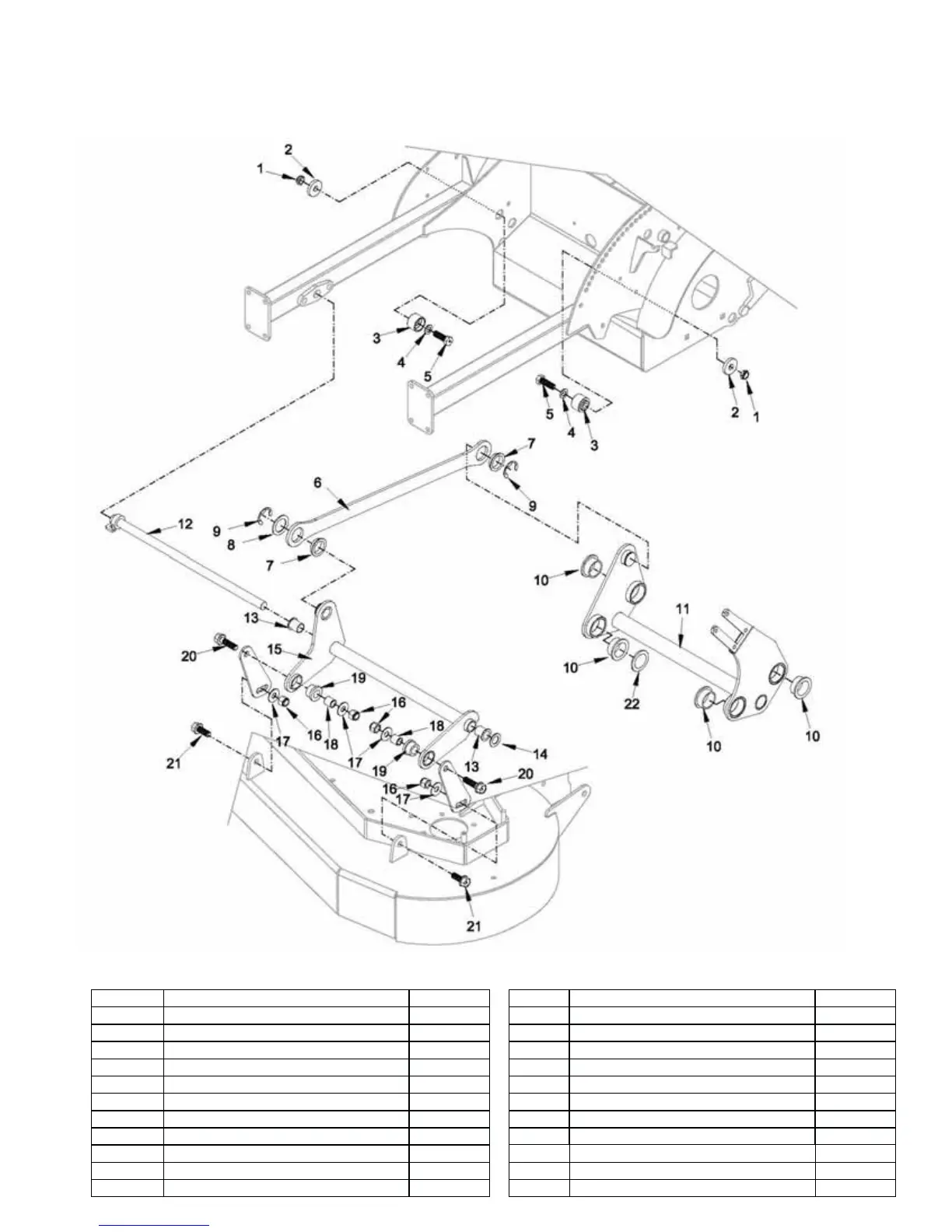

Deck-Lift Parts Diagram
REF # DESCRIPTION PART # REF # DESCRIPTION PART #
1 1/2" LOW PROFILE NUT (4) 12990018 12 FRONT S.S. AXLE (1) 93460078
2 HEAVY WASHER (4) 93490009 13 FRONT LIFT-AXLE BUSHING (1) 25410007
3 S.S. MACHINED PIN (4) 24420033 14 3/4 MACH BUSH, 14 GA (1) 13990019
4 14 GA MACHINE BUSH. (4) 13990035 15 FRT EXT ASSY w/#13 & 2x#19 (1) 93460076
5 HEX BOLT 1/2 – 20 x 1.5 (4) 11990055 16 1/2-13 NYLOCK NUT (4) 12990055
6 DECK-LIFT LINKAGE w/ #7 (1) 93460079 17 7/16 FLAT WASHER (4) 13990002
7 LINKAGE BUSHING (2) 25410008 18 LIFT HANGER SPANNER (2) 96460003
8 1 1/4 MACH. BUSH, 14 GA (1) 13990023 19 FRONT DECK LINK BUSHING (2) 17460005
9 1 1/4 E-CLIP (2) 15990032 20 1/2-13 x 1 3/4 FLANGE BOLT (2) 11990109
10 REAR LIFT-AXLE BUSHING (4) 25410006 21 1/2-13 x 1 1/4 FLANGE BOLT (2) 11990015
11 REAR LIFT-AXLE w/ 4x#10 (1) 93460077 22 2 1/8 MACH. BUSH., 14 GA (1) 13990036
