Revision 1.0 - 12/08/2013 35
3.0 PROCEDURE - DMUX BUS DISPLAY INDICATIONS AND WARNINGS

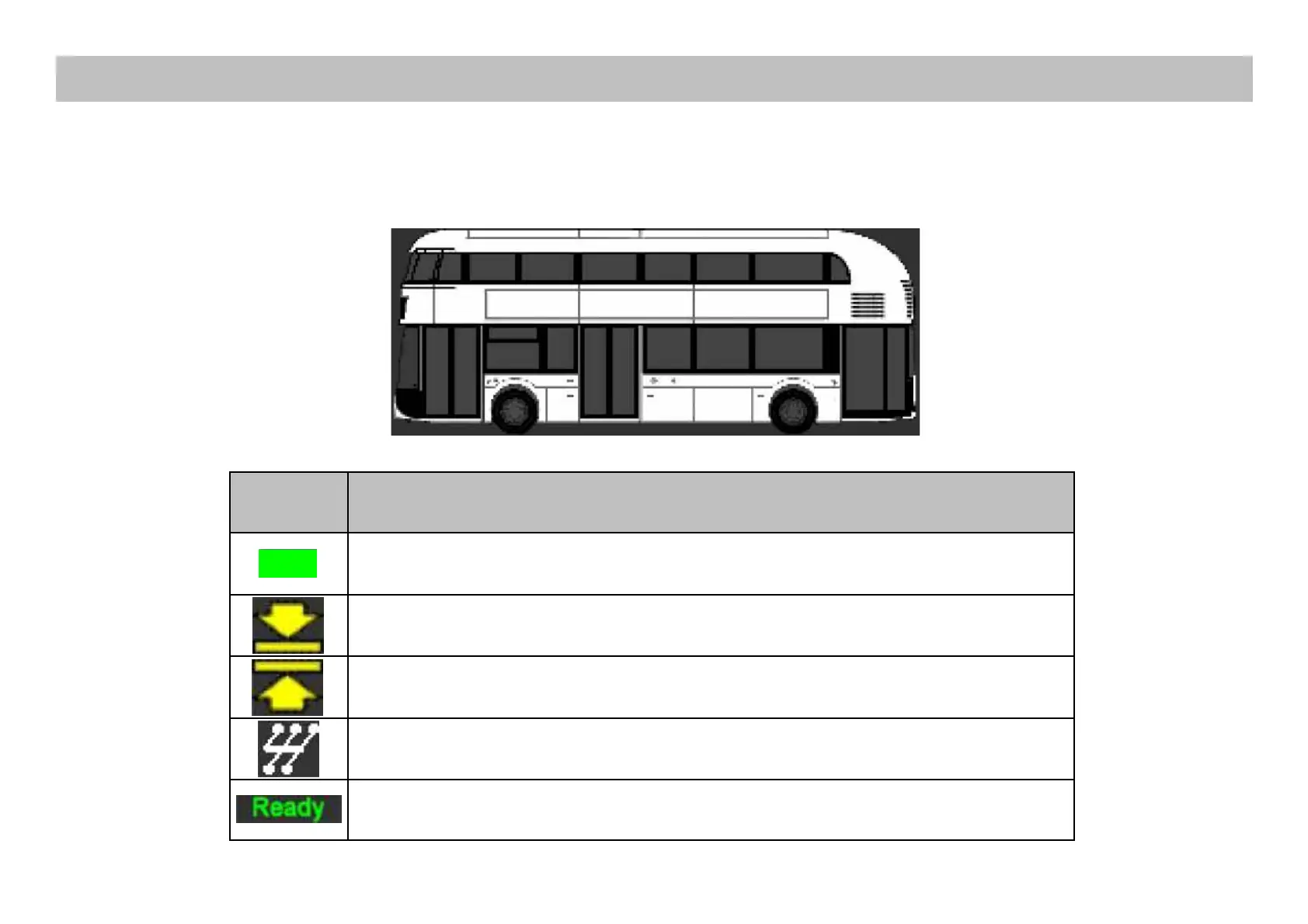

3.1 The DMUX will have a visual representation of the vehicle on the display (Fig. 1), Visual warnings will appear on or around the image
during various vehicle operations, as detailed in Table 4.
ICM Warning Indicators
TABLE 4
Fig. 1
Icon Description
Vehicle ramp not stowed or in an extended position warning
Vehicle suspension knelt warning - separate symbol displayed below front and rear wheel
Vehicle suspension in ferry lift position warning - separate symbol displayed below front and rear wheel
Vehicle drive selected - a ‘D’ (Drive) ‘N’ (Neutral) or ‘R’ (Reverse) will be displayed beside the icon
shown to indicate the current drive selected
Drive Ready
