Revision 1.0 - 12/08/2013 36
ICM Warning Indicators
4.0 PROCEDURE - ICM LED WARNING INDICATIORS

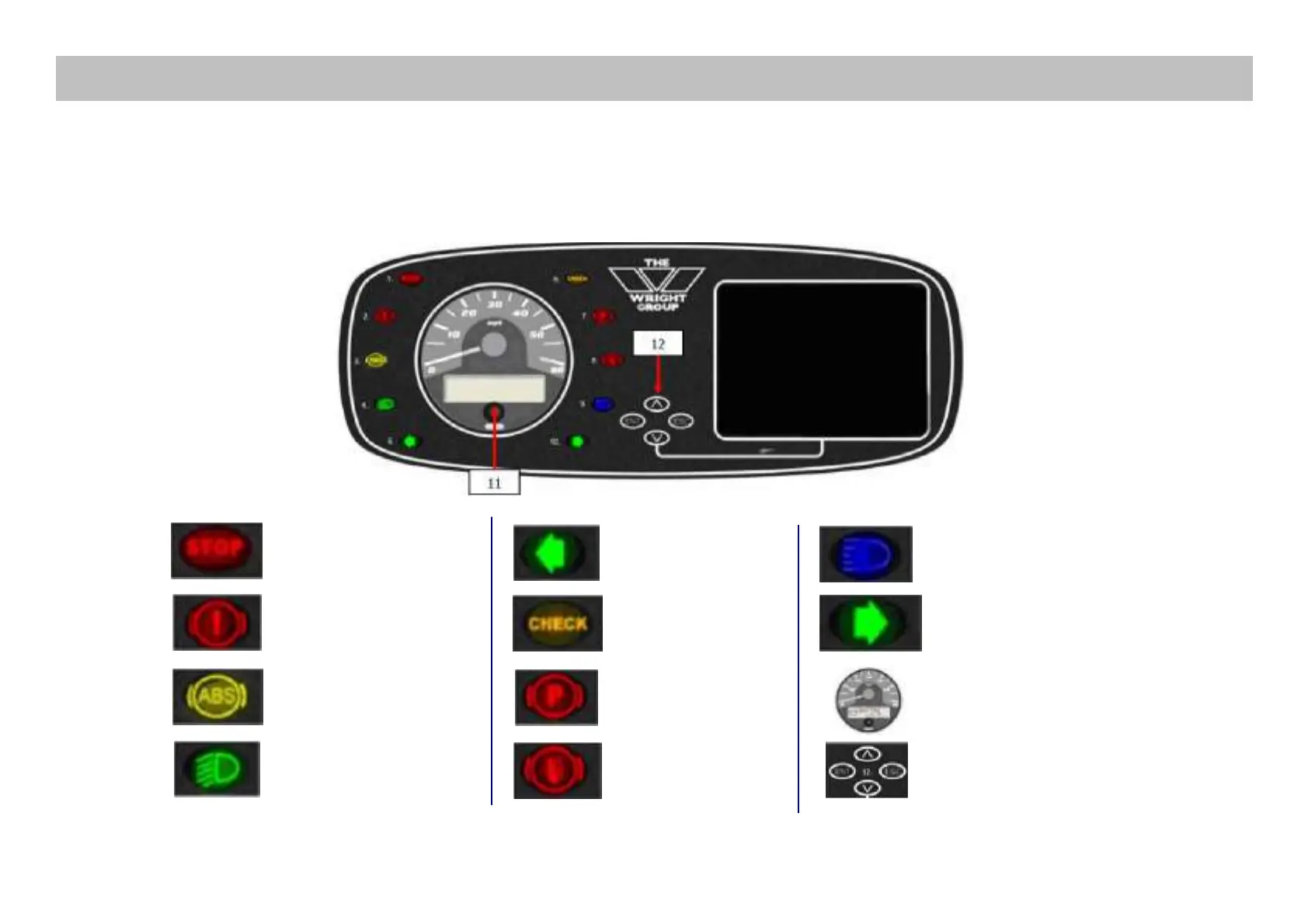

4.1 Fig. 2 shows a representation of the ICM with all warning indicators active, Table 5 shows the function of each warning.
Fig. 2
1. Stop. If this light comes
on, stop immediately but
safely.
2. Low air pressure.
3. ABS Braking System.
4. Headlights on - low.
5. Left Indicator on.
6. Check at the next stop.
7. Parking brake is applied.
8. Door brake status.
9. Headlights on - Full.
10. Right Indicator on.
11. Speedometer
12. Keypad to navigate LCD
Display area
Note :- Speedometer on NBFL has the dual functionality of displaying mileage and speed in kph in the LCD display. Switch between function
by pressing the push button.
