5-S15
BX1800 · BX2200, WSM
HYDRAULIC SYSTEM
[2] MOWER LIFT LINKAGE
Disassembling Mower Linkage
W1016616
1. Remove the clevis pin and remove the mower rear link (1), (15)
and lift link (2), (14).
2. Remove the clevis pin and remove the lift link rear LH (13).
3. Remove the clevis pin and mower lift arm mounting screws, and
remove the lift link rear RH (3) with mower lift arm (4) as a unit.
4. Remove the both side of bushes (7), (11) and remove the rear lift
link shaft (9).
5. Remove the cutting height adjusting dial knob (8).
6. Remove the nut and remove the adjusting cam (12) and cutting
height adjusting rod (10).
(When reassembling)
W1016794

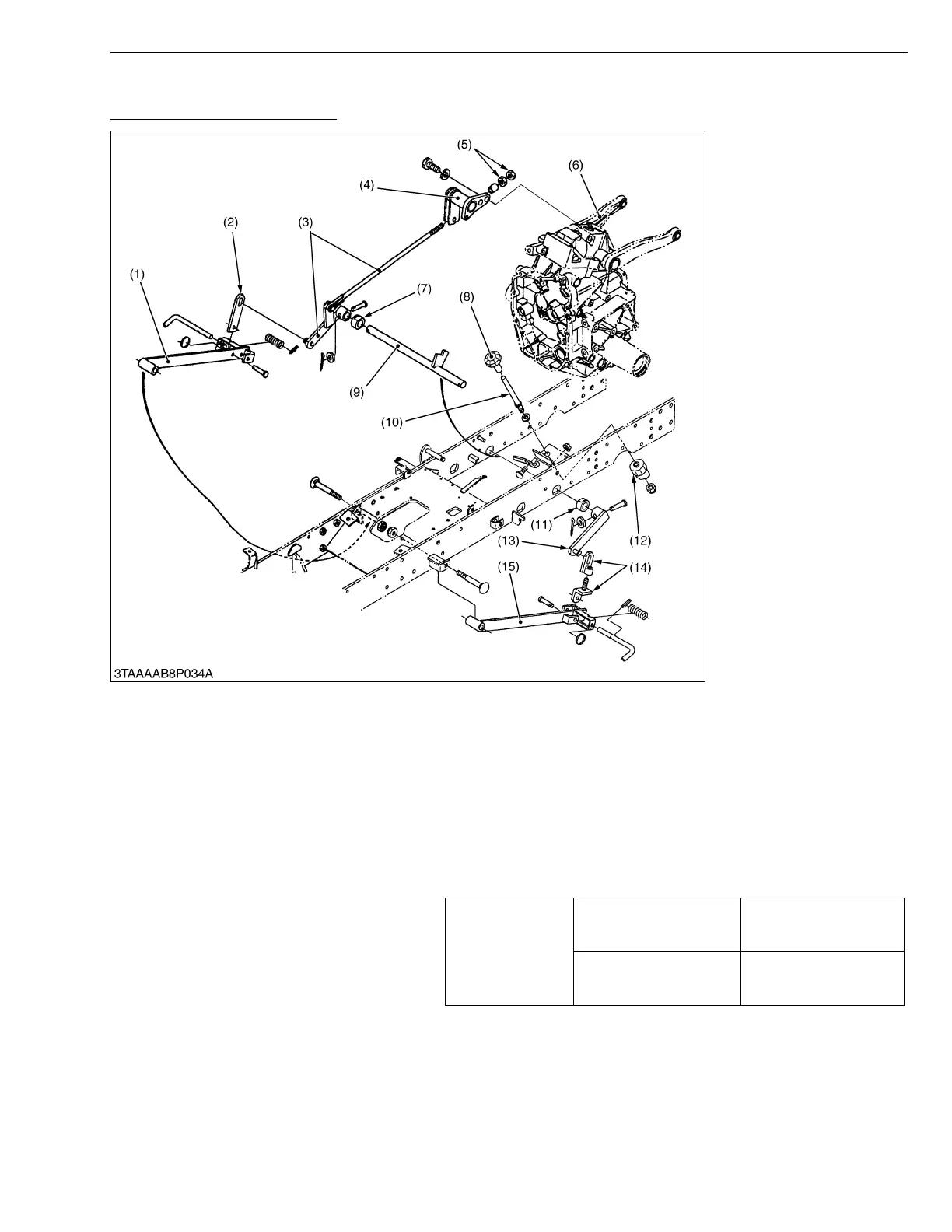

(1) Mower Rear Link RH
(2) Lift Link RH
(3) Lift Link Rear RH
(4) Mower Lift Arm
(5) Link Adjusting Nut
(6) Lift Arm RH
(7) Bush
(8) Cutting Height Adjusting
Dial Knob
(9) Rear Lift Link Shaft
(10) Cutting Height Adjusting
Rod
(11) Bush
(12) Adjusting Cam
(13) Lift Link Rear LH
(14) Lift Link LH
(15) Mower Rear Link LH
Tightening torque
Mower lift arm mounting
screw
77.4 to 90.2 N·m
7.9 to 9.2 kgf·m
57.1 to 66.5 ft-lbs
Mower rear link mounting
bolt and nut
124 to 147 N·m
12.6 to 15.0 kgf·m
91 to 108 ft-lbs
KiSC issued 07, 2006 A
