wsm Kubota L4100 User Manual

CLUTCH
L4100, WSM
2-S12
(EU)
(2) PTO Clutch
[A] Separating Engine from Clutch Housing
• Refer to "[2] PREPARATION FOR TRAVELING CLUTCH" in this section.
9Y1210278CLS0009US0

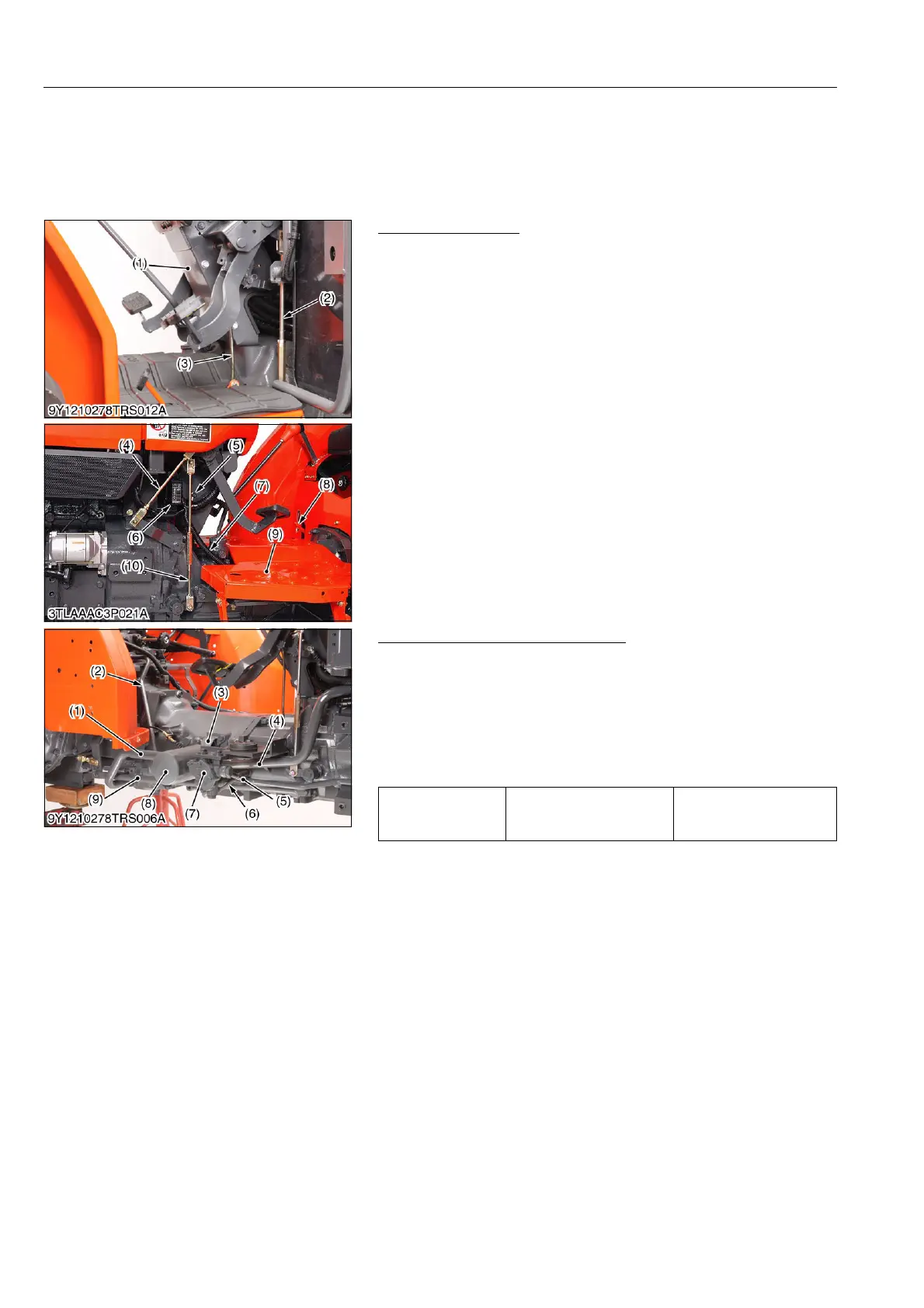

[B] Separating Clutch Housing Mid Case
Outer Components
1. Disconnect foot accelerator rod (3).
2. Remove brake rod R.H. (2) and L.H. (10).
3. Remove mounting bolts and steering support (1).
4. Remove clutch rod (4).
5. Remove fuse box (6) and ground cable (5).
6. Disconnect differential lock pedal (8).
7. Remove step (9) and wiring harness (7).
9Y1210278CLS0035US0
Suction Pipe and Hydraulic Block
1. Remove suction pipe (1), (4).
2. Remove oil filter bracket (3) together with oil filter (8).
3. Remove hydraulic block (7) together with return pipe (6).
4. Remove 3P delivery pipe (2), I-PTO delivery pipe (5).
5. Remove the brake connecting rod (9). (R.H. and L.H.)
(When reassembling)
• Apply grease to the O-rings
9Y1210278CLS0011US0
(1) Steering Support
(2) Brake Rod R.H.
(3) Foot Accelerator Rod
(4) Clutch Rod
(5) Ground Cable
(6) Fuse Box
(7) Wiring Harness
(8) Differential Lock Pedal
(9) Step
(10) Brake Rod L.H.
Tightening torque 3P delivery pipe joint bolts
49 to 69 N·m
5.0 to 7.0 kgf·m
37 to 50 lbf·ft
(1) Suction Pipe
(2) 3P delivery Pipe
(3) Oil Filter Bracket
(4) Suction Pipe
(5) I-PTO Delivery Pipe
(6) Return Pipe
(7) Hydraulic Block
(8) Oil Filter
(9) Brake Connecting Rod
