wsm L2800 Workshop Manual

1-M3
L3130 · L3430 · L3830 · L4630 · L5030, WSM
ENGINE
3. LUBRICATING SYSTEM
W1012968

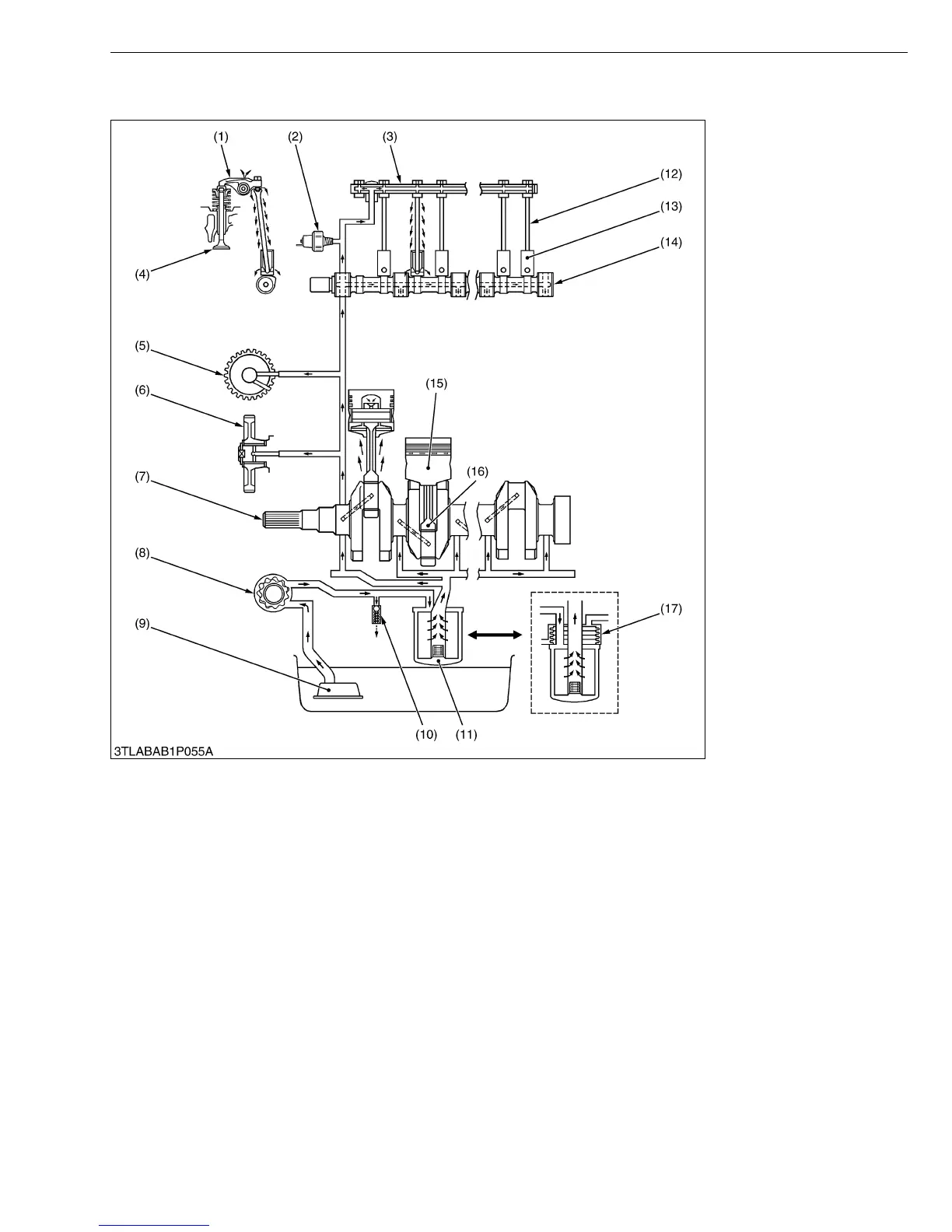

A lubricating system consists of an oil strainer (9), oil pump (8), relief valve (10), oil filter cartridge (11), oil cooler
(17) and oil pressure switch (2).
The oil pump sucks lubricating oil from the oil pan through the oil strainer and the oil flows down to the oil filter,
cartridge where it is further filtered. Then the oil is forced to crankshaft (7), connecting rods (16), idle gear (6),
governor shaft (5), camshaft (14) and rocker arm shaft (3) to lubricate each part through the oil gallery.
(1) Rocker Arm
(2) Oil Pressure Switch
(3) Rocker Arm Shaft
(4) Valve
(5) Governor Shaft
(6) Idle Gear
(7) Crankshaft
(8) Oil Pump
(9) Oil Strainer
(10) Relief Valve
(11) Oil Filter Cartridge
(12) Push Rod
(13) Tappet
(14) Camshaft
(15) Piston
(16) Connecting Rod
(17) Oil Cooler (L4630, L5030)
KiSC issued 02, 2007 A

wsm L2800 Specifications

General

Engine Power	28 hp
Drive	4WD
Engine Type	Diesel
Transmission	Hydrostatic
Hydraulic System	Open Center
Type	Tractor
Fuel Tank Capacity	6.6 gal
