wsm L3400 Workshop Manual

8-M23
L3130 · L3430 · L3830 · L4630 · L5030, WSM
HYDRAULIC SYSTEM

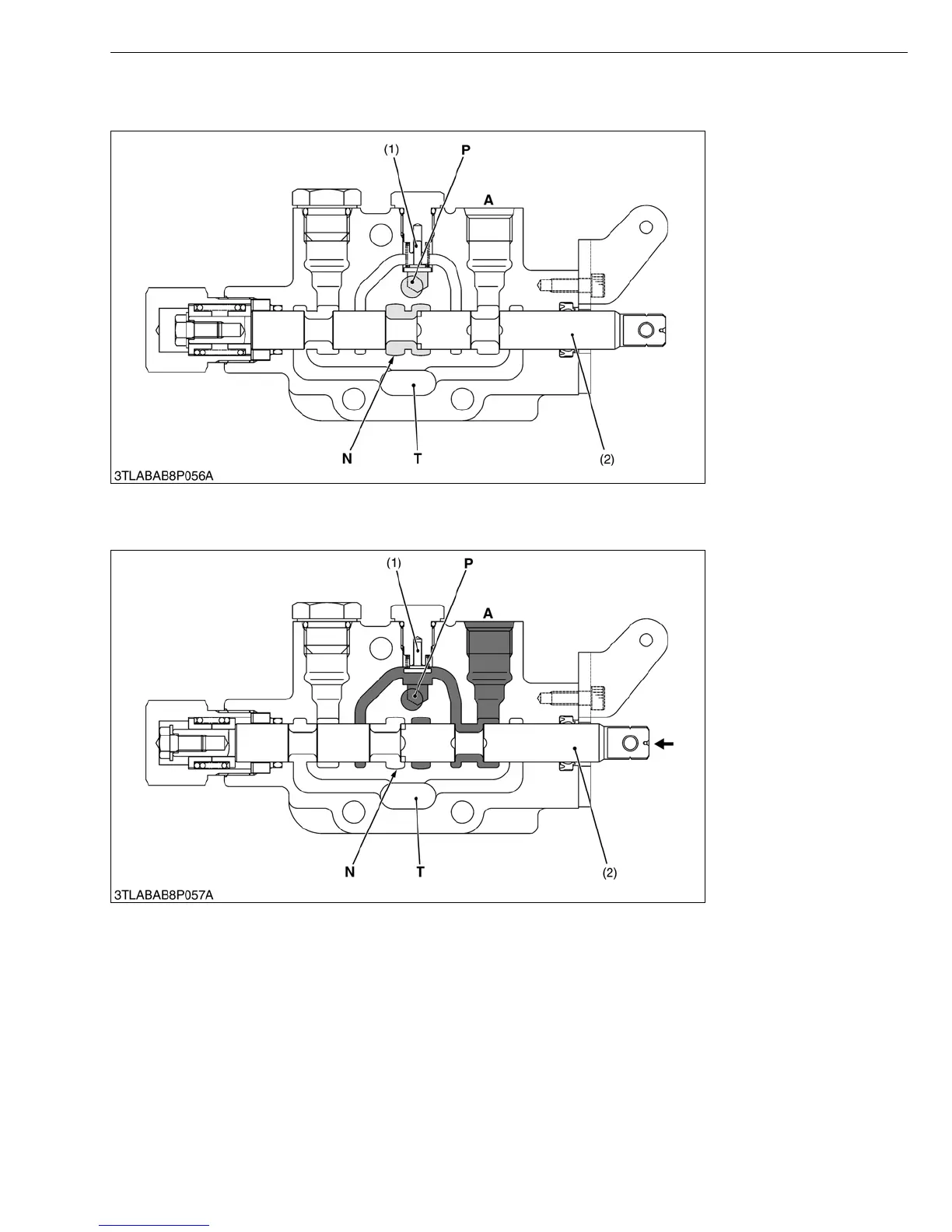

[3] SINGLE ACTING TYPE
■ Neutral
Pressure-fed oil from the hydraulic pump is delivered into the P port, and flows to the position control valve via N
port.
■ Lift
When the spool (2) is moved in the direction of the arrow, the pressure-fed oil in the P port opens the check valve
(1) and flows to the implement cylinder via A port.
(1) Check Valve
(2) Spool
A : A Port
(Implement Cylinder)
P : Pump Port
N : Neutral Port
T : Tank Port
(1) Check Valve
(2) Spool
A : A Port
(Implement Cylinder)
P : Pump Port
N : Neutral Port
T : Tank Port
KiSC issued 02, 2007 A
