TRANSMISSION
L3301, L3901, L4701, WSM
3-M11
L4701
The independent PTO operated by PTO clutch pack (3) is adopted to L4701.
The rear PTO is "ENGAGED" or "DISENGAGED" by pushing the PTO clutch control switch.

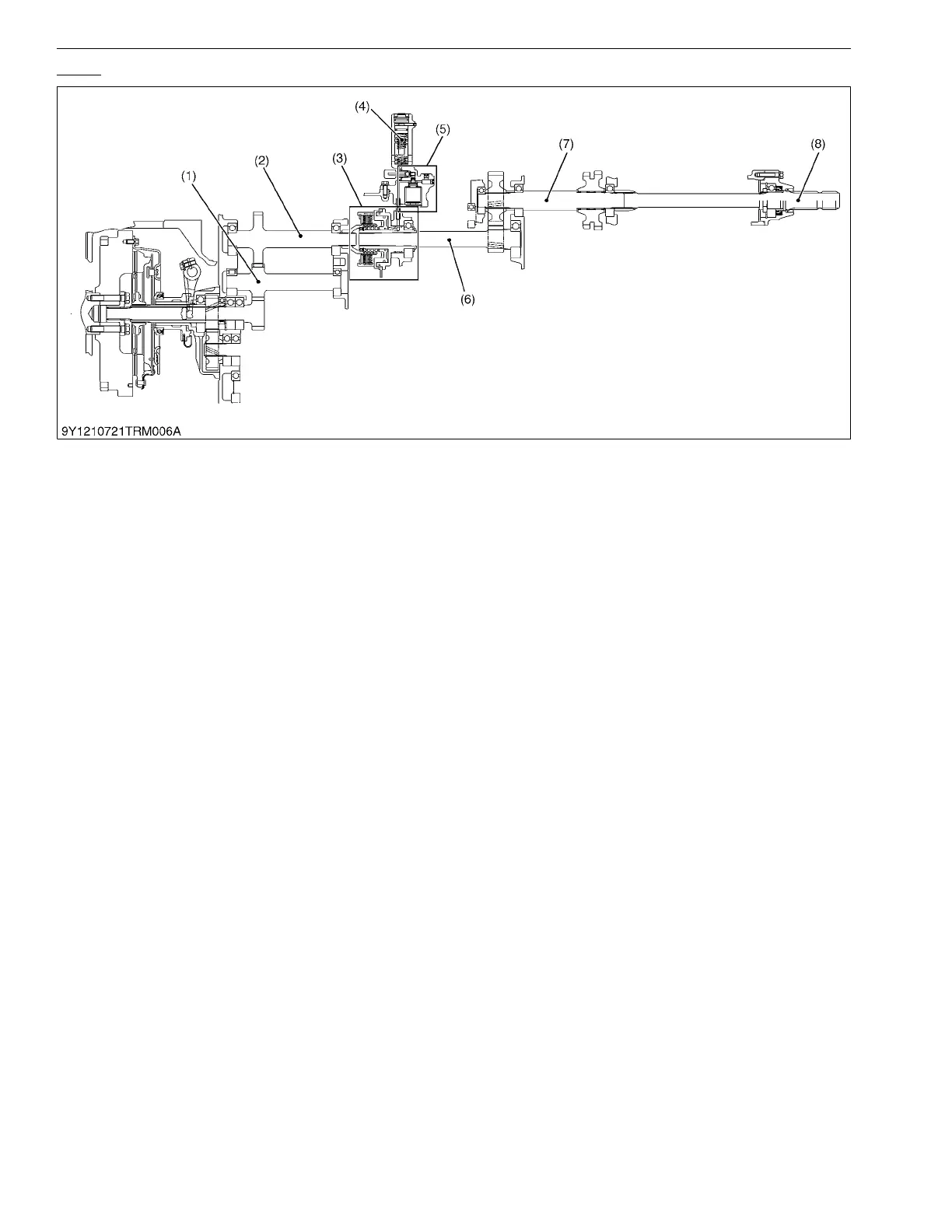

The PTO power train from the clutch to the rear PTO shaft is composed as shown in the figure above.
9Y1211012TRM0011US0
(1) PTO Gear Shaft 1
(2) PTO Gear Shaft 2
(3) PTO Clutch Pack
(4) Accumulator
(5) PTO Clutch Valve
(6) PTO Gear Shaft
(PTO Clutch Shaft)
(7) PTO Drive Shaft
(8) Rear PTO Shaft
KiSC issued 09, 2016 A
