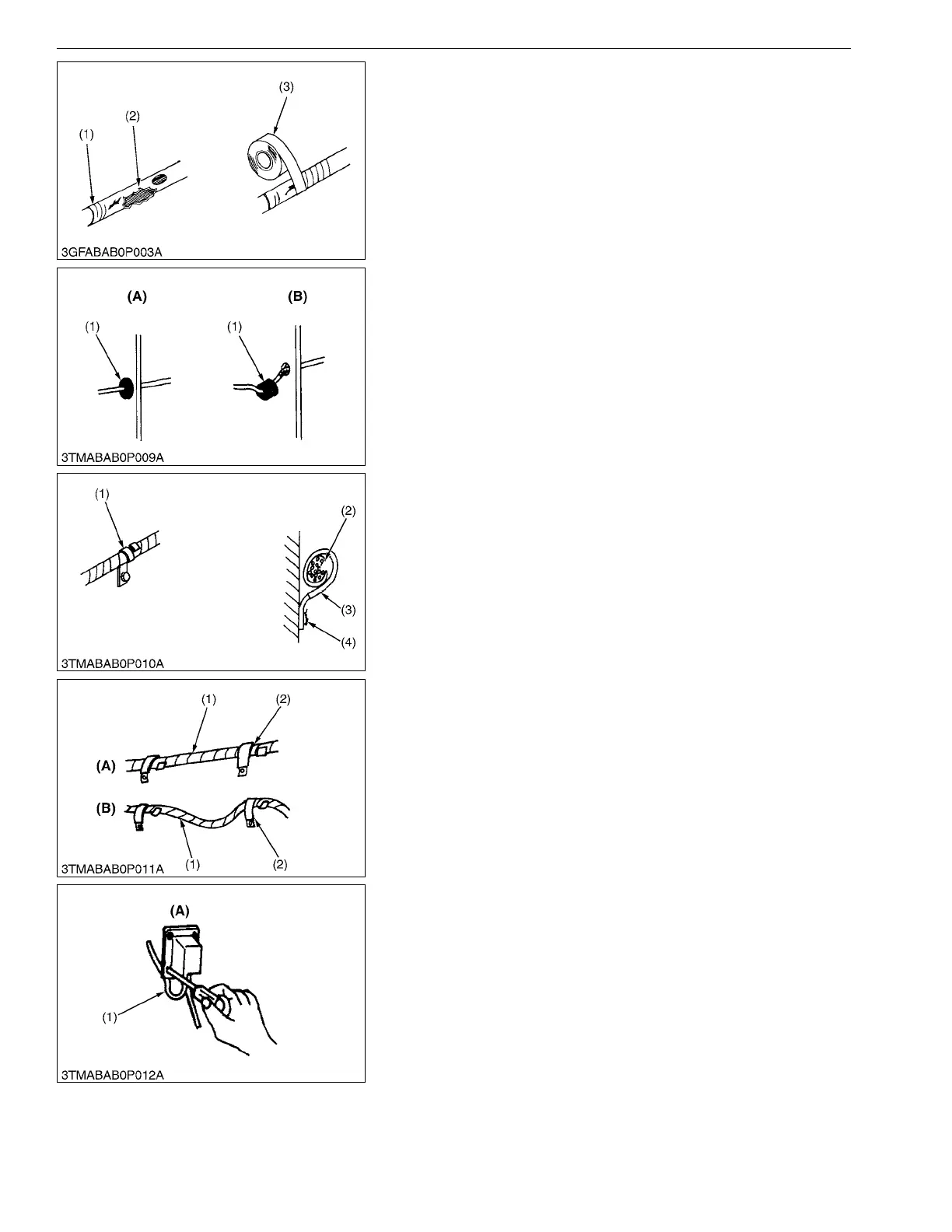

• Repair or change torn or aged wiring immediately.
WSM000001GEG0065US0
• Securely insert grommet.
WSM000001GEG0066US0
• Securely clamp, being careful not to damage wiring.
WSM000001GEG0067US0
• Clamp wiring so that there is no twist, unnecessary sag, or
excessive tension, except for movable part, where sag be
required.
WSM000001GEG0068US0
• In installing a part, be careful not to get wiring caught by it.
WSM000001GEG0069US0
(1) Aged
(2) Torn
(3) Insulating Vinyl Tape
(1) Grommet (A) Correct
(B) Incorrect
(1) Clamp
(Wind Clamp Spirally)
(2) Wire Harness
(3) Clamp
(4) Welding Dent
(1) Wiring
(2) Clamp
(A) Correct
(B) Incorrect
(1) Wiring (A) Incorrect
