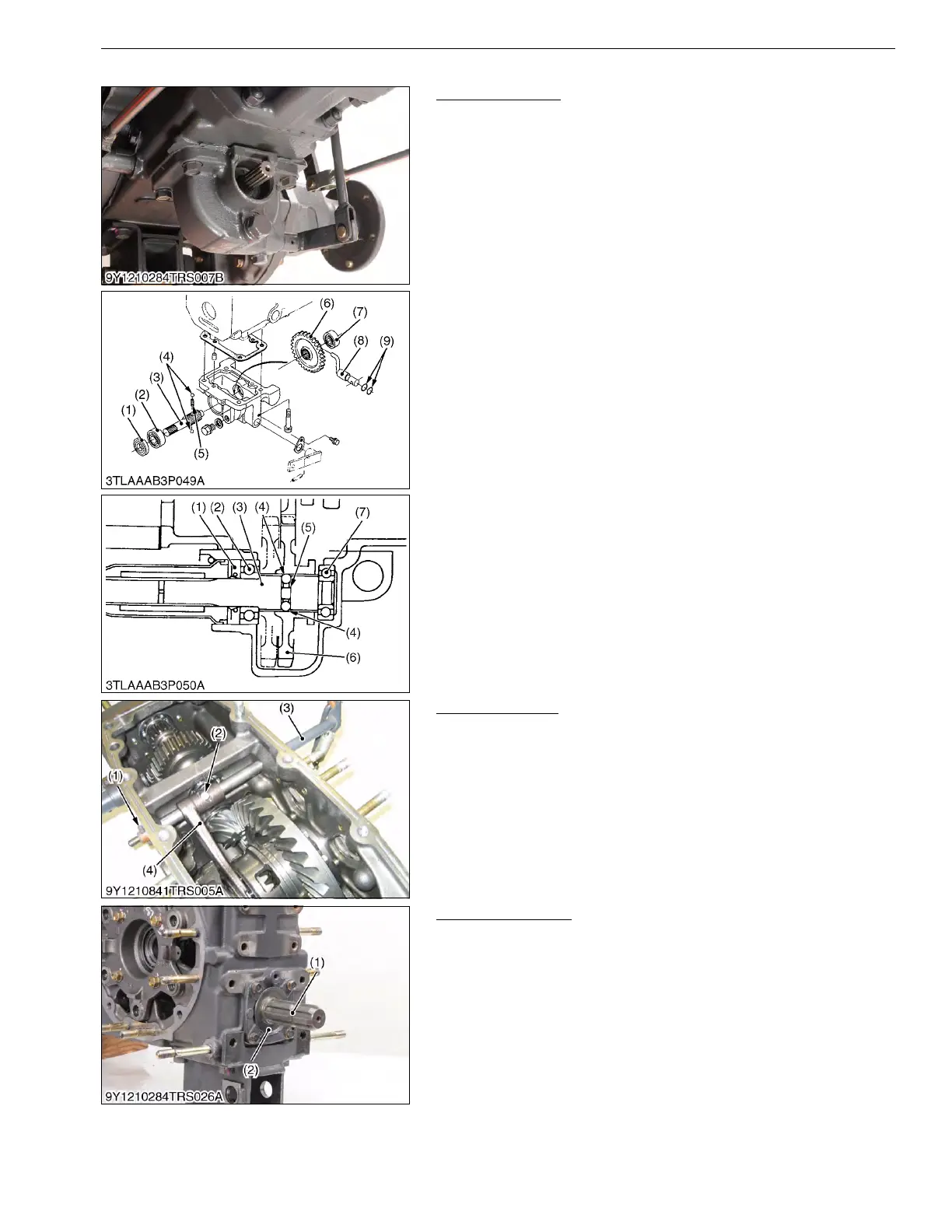

[B] Transmission Case
Front Drive Case
1. Remove the front drive case.
2. Remove the oil seal (1).
3. Tap out the propeller shaft 1 (3) to the front.
4. Remove the shift gear (6).
(When reassembling)
• Replace the oil seal (1) with new one and apply grease to its
inside.
• Apply liquid gasket (Three Bond 1206C or equivalent) to both
faces of the gasket that is to be installed between the front drive
case and the transmission case.
9Y1211012TRS0040US0
Differential Lock
1. Remove the clevis pin (2).
2. Remove the spring pin (1).
3. Draw out the differential lock fork shaft (3).
4. Remove the shift fork (4).
9Y1211012TRS0041US0
PTO Bearing Case
1. Remove the bearing case (2) mounting screws.
2. Remove the PTO shaft (1) with bearing case.
9Y1211012TRS0042US0
(1) Oil Seal
(2) Ball Bearing
(3) Propeller Shaft 1
(4) Balls
(5) Spring
(6) Shift Gear
(7) Ball Bearing
(8) Shift Lever
(9) O-ring
(1) Spring Pin
(2) Clevis Pin
(3) Fork Shaft
(4) Shift Fork
(1) PTO Shaft (2) PTO Bearing Case
