STEERING
L3301, L3901, L4701, WSM
7-S12

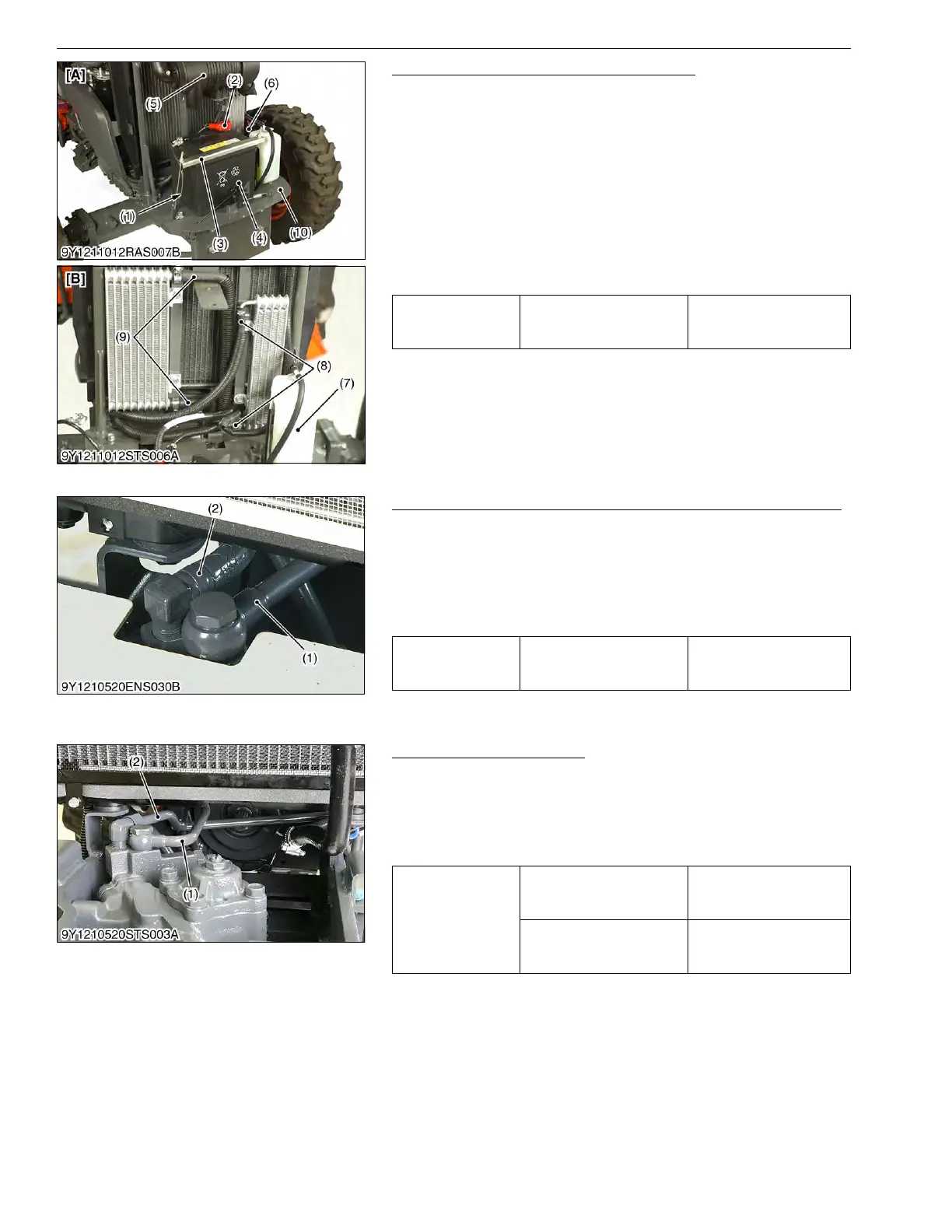

Reserve Tank, Battery and Front Support
1. Remove battery negative cable (1).
2. Disconnect battery plus connector (2).
3. Remove battery stay (3).
4. Remove battery (4).
5. Remove air cleaner assembly (5).
6. Remove slow blow fuse boxes (6).
7. Disconnect reserve tank hoses and remove reserve tank (7).
8. Disconnect fuel cooler hoses (8) from fuel cooler.
9. Disconnect oil cooler hoses (9) from oil cooler.
10. Remove front support (10).
(When reassembling)
9Y1211012STS0013US0
Delivery Pipe and Return Hose [Manual Transmission Model]
1. Disconnect the power steering delivery pipe (1) and return hose
(2).
(When reassembling)
• Install the new copper washers to the delivery pipe joint screw
securely.
• Wind seal tape on joint elbow part of return hose (2).
9Y1211012STS0014US0
Delivery Pipe [HST Model]
1. Disconnect the return pipe (2).
2. Remove the joint screw and disconnect the delivery pipe (1).
(When reassembling)
• Install the new copper washers to the delivery pipe joint screw
securely.
9Y1211012STS0015US0
Tightening torque Oil cooler hose clamp
2.0 to 2.4 N·m
0.20 to 0.25 kgf·m
1.5 to 1.8 lbf·ft
(1) Battery Negative Cable
(2) Battery Plus Connector
(3) Battery Stay
(4) Battery
(5) Air Cleaner Assembly
(6) Slow Blow Fuse Box
(7) Reserve Tank
(8) Fuel Cooler Hose
(9) Oil Cooler Hose
(10) Front Support
[A] Manual Transmission Model
[B] HST Model
Tightening torque Delivery pipe joint bolt
40 to 49 N·m
4.0 to 5.0 kgf·m
29 to 36 lbf·ft
(1) Delivery Pipe (2) Return Hose
Tightening torque
Delivery pipe joint bolt
40 to 49 N·m
4.0 to 5.0 kgf·m
29 to 36 lbf·ft
Return pipe retaining nut
30 to 49 N·m
3.0 to 5.0 kgf·m
22 to 36 lbf·ft
(1) Delivery Pipe (2) Return Pipe
