STEERING
L3301, L3901, L4701, WSM
7-S19

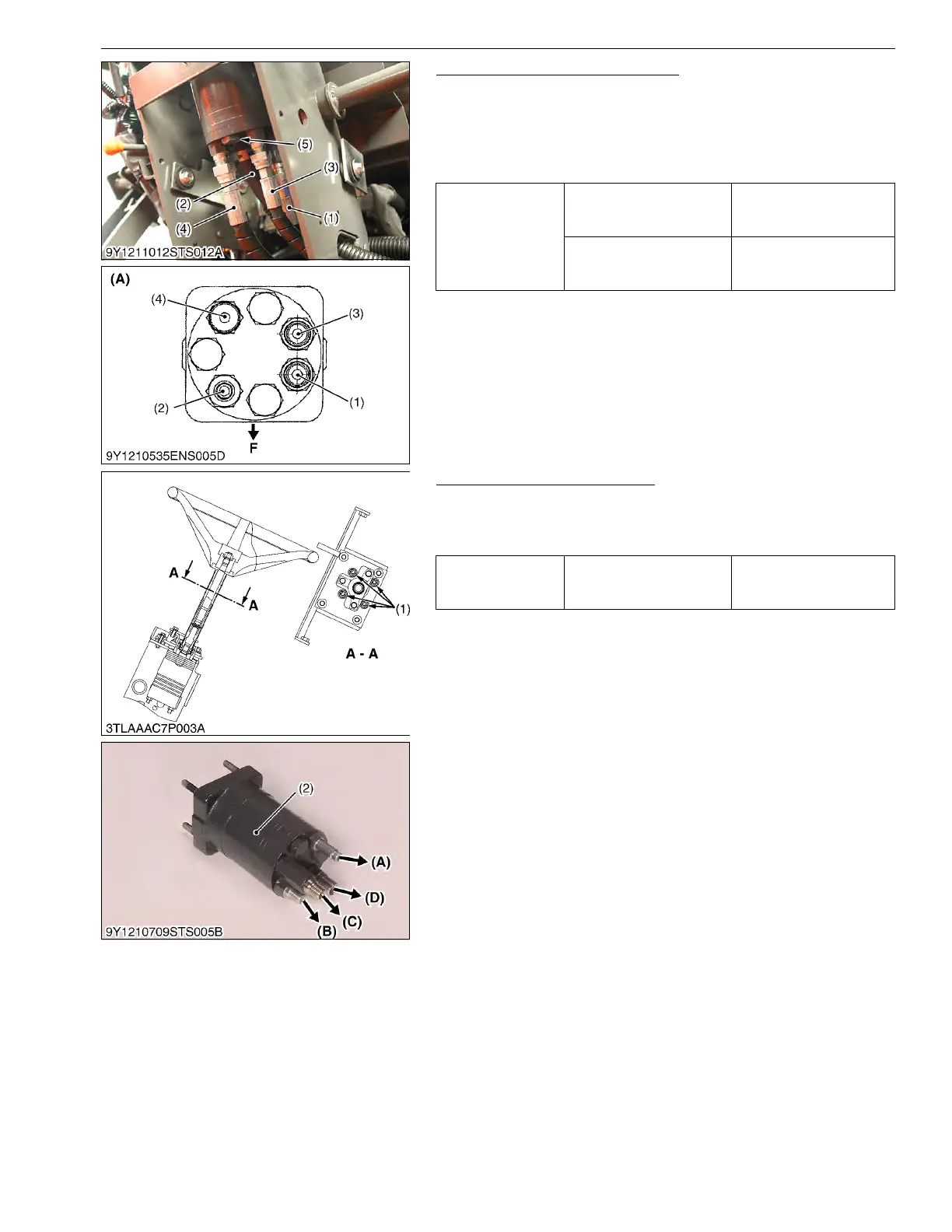

Power Steering Controller Hoses
1. Mark the hoses to identify which port the hoses are connected
shown in figure.
2. Remove the hoses.
(When reassembling)
• Be sure to connect the both delivery hoses to original position.
9Y1211012STS0038US0
Steering Controller Assembly
1. Remove steering controller mounting nuts (1) and then remove
steering controller assembly.
(When reassembling)
9Y1211012STS0039US0
Tightening torque
Main delivery hose
retaining nut
46.6 to 50.9 N·m
4.8 to 5.2 kgf·m
35 to 37 lbf·ft
Delivery hose retaining nut
24.5 to 29.4 N·m
2.5 to 3.0 kgf·m
18 to 21 lbf·ft
(1) Delivery Hose (R.H.)
(2) Return Hose
(3) Delivery Hose (L.H.)
(4) Main Delivery Hose
(5) Plug
(A) Steering Controller View From
the Bottom Side
F: Front
Tightening torque
Steering controller
mounting nut
23.5 to 27.5 N·m
2.4 to 2.8 kgf·m
17.3 to 20.3 lbf·ft
(1) Steering Controller Mounting Nut
(2) Steering Controller
A: Upper View
(A) Connected to return hose
(B) Connected to right turning
delivery hose
(C) Connected to left turning delivery
hose
(D) Connected to main hose
KiSC issued 09, 2016 A
