HYDRAULIC SYSTEM
L3301, L3901, L4701, WSM
8-S13
[B] L4701

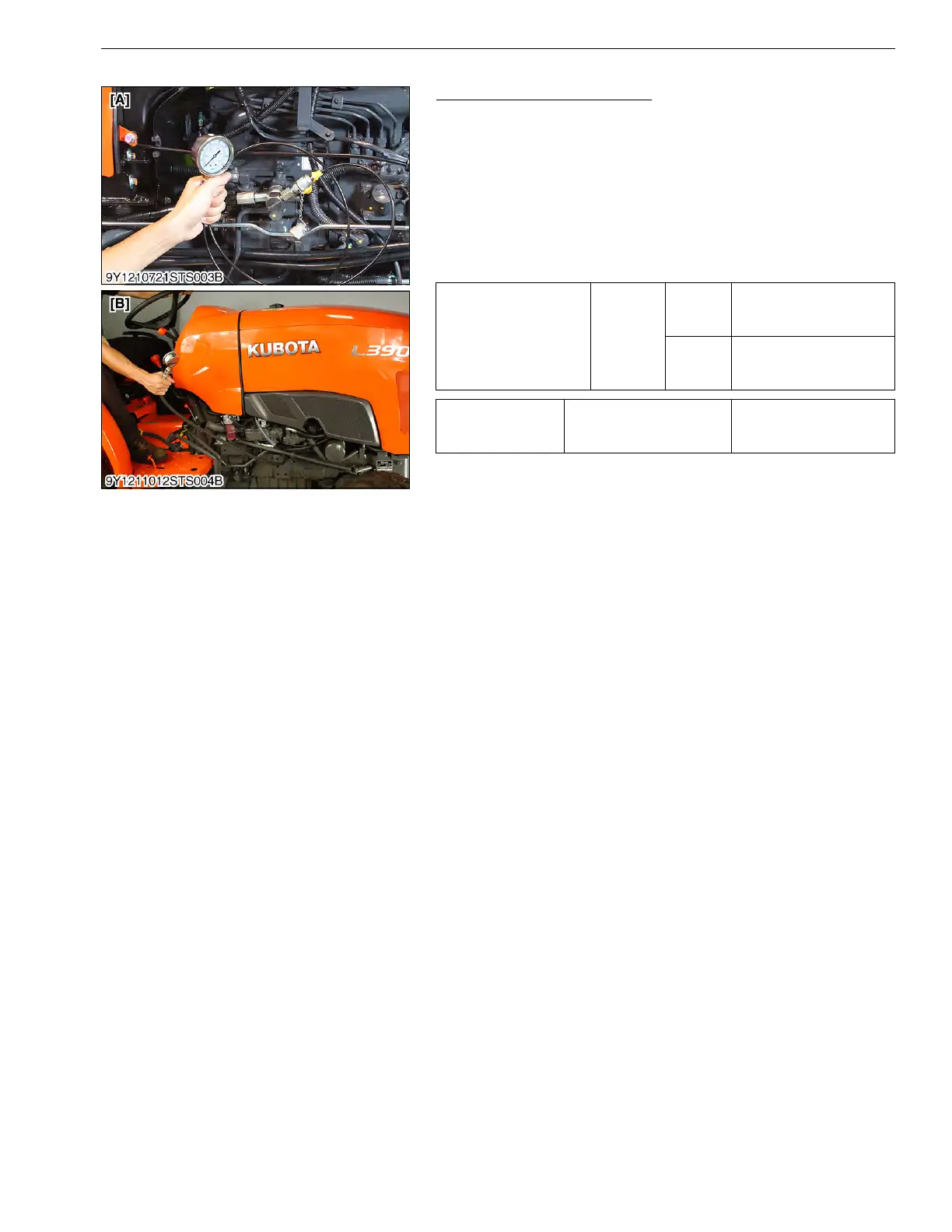

Relief Valve Setting Pressure
1. Disconnect the power steering delivery pipe joint bolt.
2. Install the adaptor E instead of joint bolt, and then set a thread
joint, cable and pressure gauge.
3. Start the engine and set the engine speed at max. speed.
4. Fully turn the steering wheel to the left or right and read the
pressure when the relief valve functions.
5. Stop the engine.
6. If the pressure is not within the factory specifications, check the
pump delivery line, or replace the power steering controller.
Condition
• Engine speed:
Maximum
• Oil temperature:
40 to 60 °C (104 to 140 °F)
9Y1211012STS0009US0
Relief valve
(power steering)
setting pressure
Factory
specifica-
tion
2WD
8.0 to 9.0 MPa
81 to 91 kgf/cm
2
1200 to 1300 psi
4WD
10.7 to 11.7 MPa
109 to 119 kgf/cm
2
1550 to 1690 psi
Tightening torque
Power steering delivery
hose joint bolt
49.0 to 58.8 N·m
5.0 to 6.0 kgf·m
37 to 43 lbf·ft
[A] Manual Transmission Model
[B] HST Model
