2-1
2. Unit Description
As shown in Figure 2.1 and Figure 2.2, the IPS back panel includes connectors,
LEDs and manual controls described below:

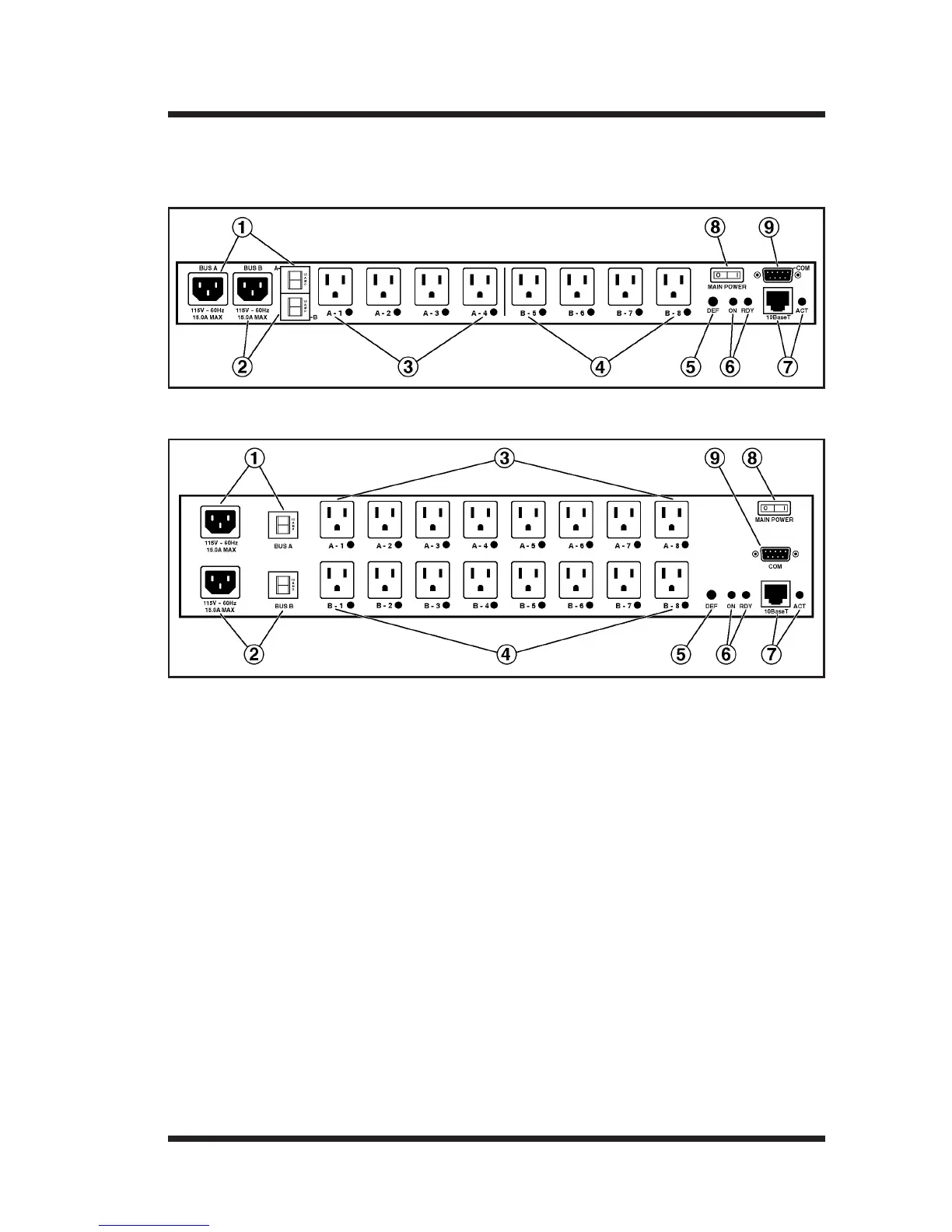

Figure 2.1: IPS-800 Back Panel (120 VAC Model Shown)
➀
Bus "A" Power Inlet and Circuit Breaker: An IEC-320-C14 AC inlet
and circuit breaker which supply power to the Circuit "A" outlets. Also
includes cable keeper (not shown.)
• Model RPS-820: 208 - 240 VAC Power Inlet, 10 Amp Circuit Breaker.
• Model RPS-830: 100 - 120 VAC Power Inlet, 15 Amp Circuit Breaker.
➁
Bus "B" Power Inlet and Circuit Breaker: An IEC-320-C14 AC inlet
and circuit breaker which supply power to the Circuit "B" outlets. Also
includes cable keeper (not shown.) Includes the same components listed
in Item 1 above.
Figure 2.2: IPS-1600 Back Panel (120 VAC Model Shown)
