Wunda E09 - Section C: Schematic - Danfoss FHV-R Kit to an existing radiator system

10
Radiators
Danfoss FHV-R
HWC
Combi or
System Boiler
ABV
Connections to existing
radiator flow & return

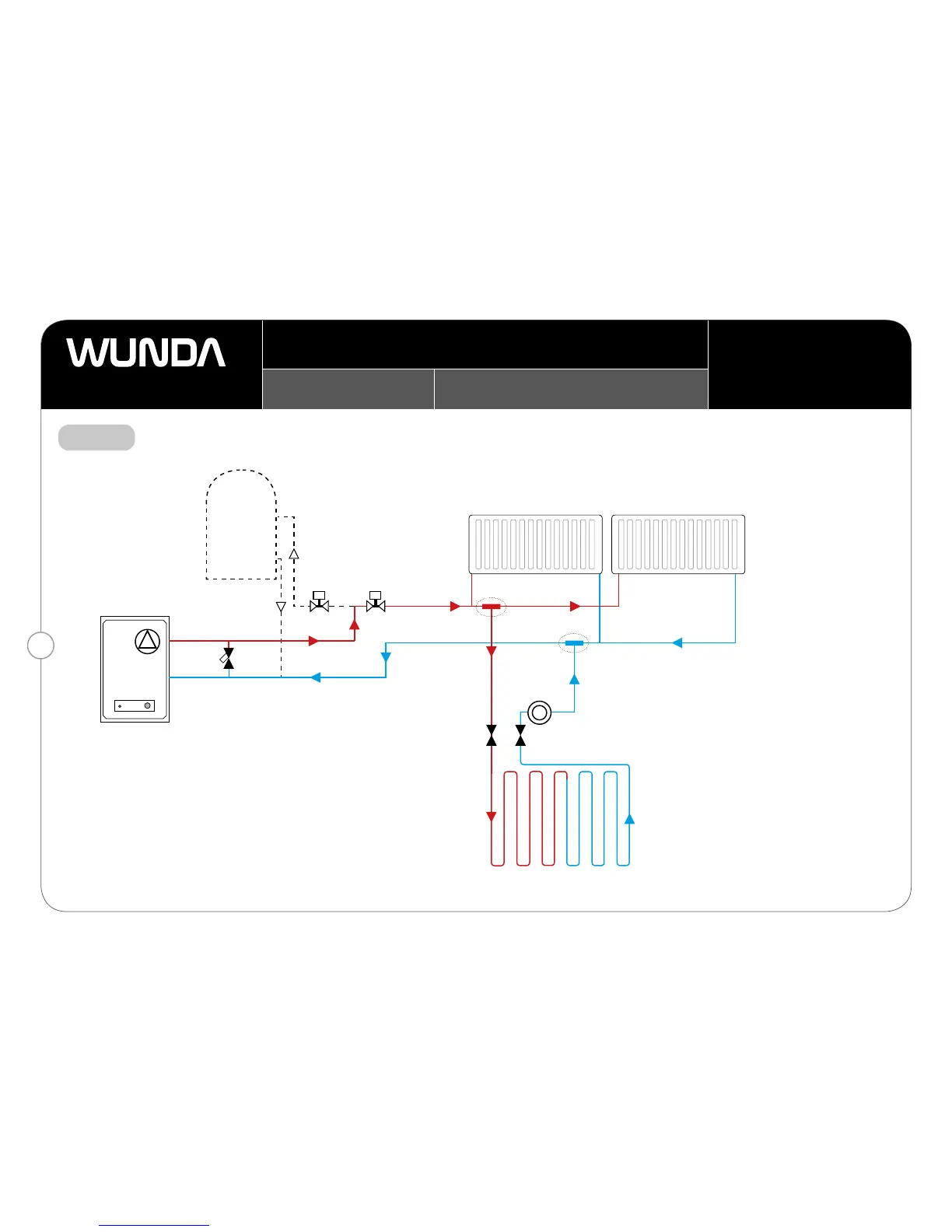

This diagram show how a Danfoss FHV-R is
connected to and existing radiator system.
Please note:
• The valve should be used with a maximum
of 100m of 16mm Wundapipe.
• The valve must be positioned on the return
from the heated floor.
• It is recommended that isolation valves are
used for filling and maintenance.
• The supply pipework must not be less than
15mm.
• The heating engineer must check that the
is adquate flow available from the heating
mains.
Section C 3C : Schematic - Danfoss FHV-R Kit to an existing radiator system
*
*
*
E09
Installation guide - wiring & plumbing
