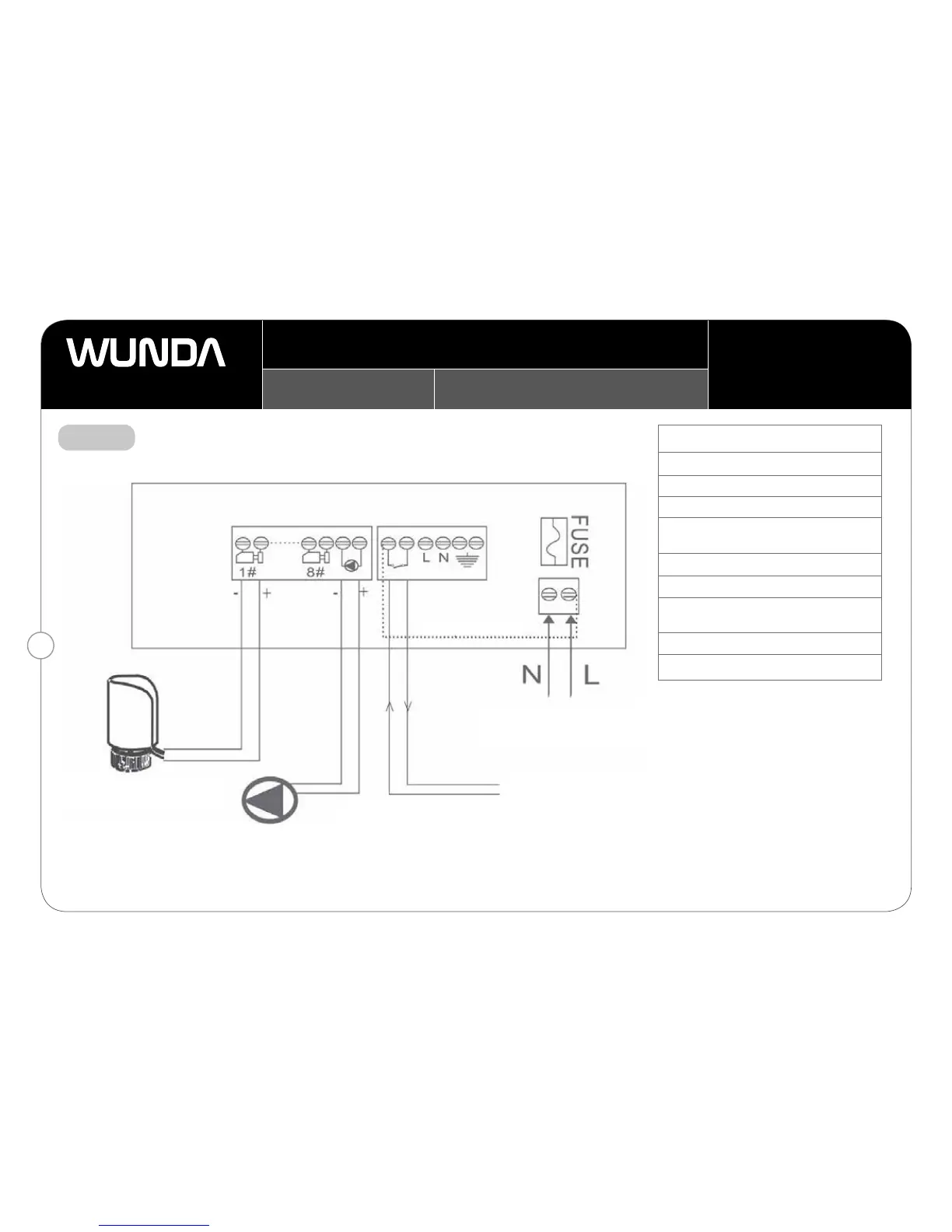

Wunda E09 - Section F: Schematic - Wireless Control Centre E8.583 RF

Section F Schematic - Wireless Control Centre E8.583RF
Manifold Pump
Max 3 actuators can be connected
to one channel
Boiler / zone valve switch Voltage free
OR with link 230v
*Optional Link
AC230V Input
*Voltage Free Switch
• With Optional Link fitted - Can be used as a 230v switch live
output to zone valve or boiler/heat source
• Without Optional Link fitted - Can be used as low voltage switching
for boiler/heat source
Wireless Control Centre E8.583RF
Parameters
Voltage : AC230V
Current : Max 3A
Wireless Frequency Output: 433Mhz
Effective Transmission Distance: 200m empty space
Ambient Temperature : -5~50°C
Pump Linkage: 230V sub-output
Boiler/Zone Valve Linkage: Volt free or 230V with link
Protective Housing: Ip40
Weight : 1 KG
E8.413RF/E8.423RF Wireless Receiver (Single Zone)
Technical Data
Voltage : AC230V
Current : Max 3A
Wireless Frequency Output: 433Mhz
Effective Transmission Distance: 200m
empty space
Ambient Temperature : -5~50°C
Pump Linkage: 230V sub-output
Boiler/Zone Valve Linkage: Volt free or
230V with link
Protective Housing: Ip40
Weight : 1 KG
* Voltage Free Switch
• With Optional Link fitted - Can be used as a 230v switch
live output to zone valve or boiler/heat source
• Without Optional Link fitted - Can be used as low voltage
switching for Boiler/heat source
AC230V Input
Boiler / zone valve switch Voltage free
OR with link 230v
Max 3 actuators can be connected
to one channel
Manifold Pump
*Optional link
14
NOTE:
Pump and switch relays have a 3 minute delay.
