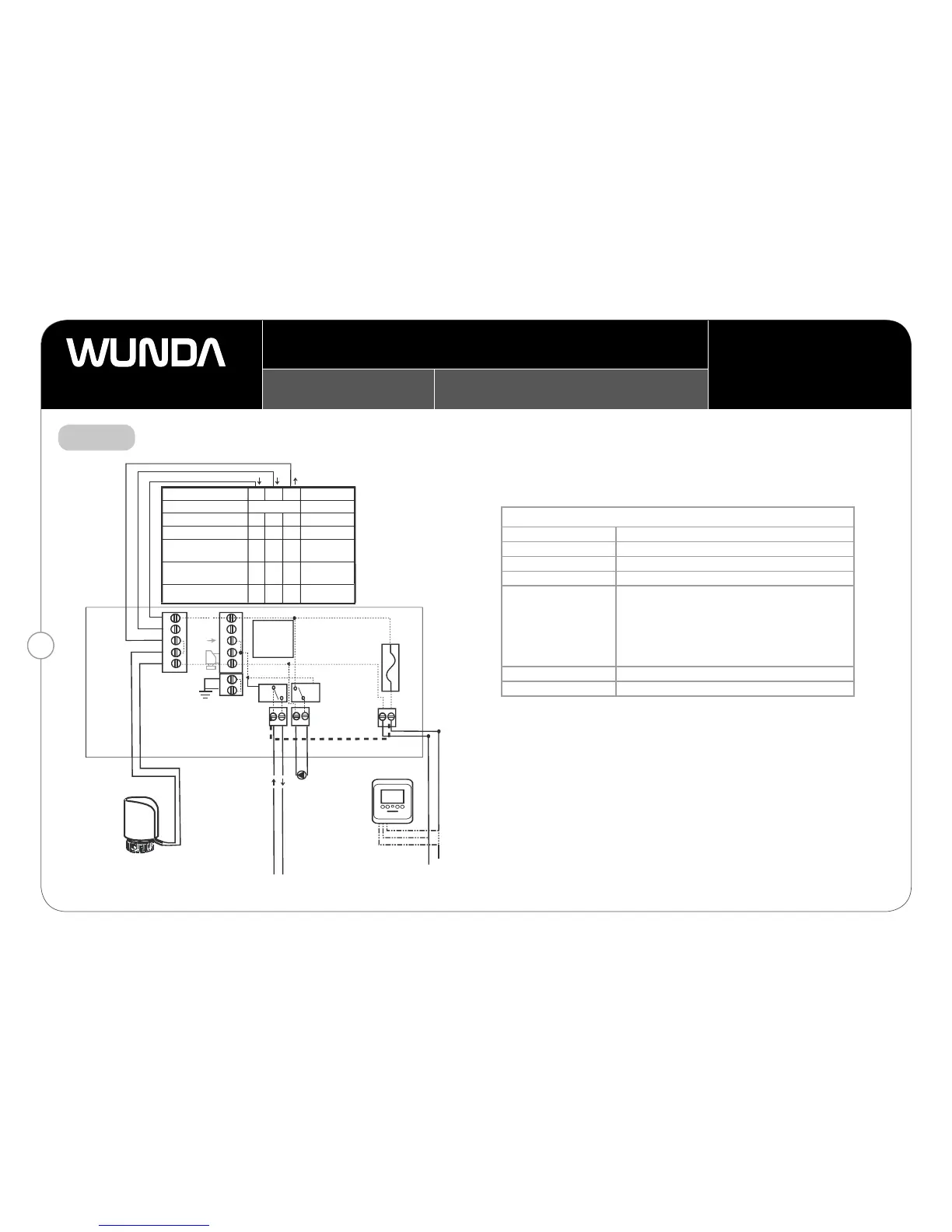

Wiring centre - H-Box-12
Technical Data.
Supply voltage 230V AC, 50/60Hz
Output voltage 230V AC,50/60Hz
Max.Load 4A
Number of zone outputs 12 zones
Left Hand: 1 x potential free relay output
Right Hand:1 x independent relay output
L
N
L1
L1
N
Transformer
Ground
FUSE (max. 10A) 2 x 5mm FAST BLOW
From main heating controls
Power input (230VAC, 50/60Hz)
L
N
N L
Manifold
pump
Max. 4 actuators can be
linked to one room stat
Timer
RTS 80.70
LIVE - 1
N - 2
SL - 4
Boiler / zone valve switch
Voltage free OR with link 230V
L
N
Optional Link*
Voltage Free Switch
With Optional Link fitted - Can be used as a 230v switch live output to zone valve or boiler/heat source
Without Optional Link fitted - Can be used as low voltage switching for Boiler/heat source
*
*
Dimension (mm) 310 W x 110 H x 55 D
Ambient temperature 0°C-50°C
Relay Output
(2 minutes delay)
(230V AC, 3A)
Two Relays will be engaged whenever one or more
thermostats call for heating.
The relays will be disengaged when all the zone
thermostats stop heating activity
Previous model
L N L1
Room thermostat Terminal Note
T6360C 2 6 3 Link 3-5
RTC86.13 1 2 4 Sensor 6 - 7
1 2 4 Sensor 6 - 7
RTC75.713T
Button room stat
E91.713
Touch screen room ‘stat
1 2 3 Sensor 6 - 7
RTC84.13 1 2 4
-
12
Wiring centre - H-Box-12
Technical Data.
Supply voltage 230V AC, 50/60Hz
Output voltage 230V AC,50/60Hz
Max.Load 4A
Number of zone outputs 12 zones
Left Hand: 1 x potential free relay output
Right Hand:1 x independent relay output
L
N
L1
L1
N
Transformer
Ground
FUSE (max. 10A) 2 x 5mm FAST BLOW
From main heating controls
Power input (230VAC, 50/60Hz)
L
N
N L
Manifold
pump
Max. 4 actuators can be
linked to one room stat
Timer
RTS 80.70
LIVE - 1
N - 2
SL - 4
Boiler / zone valve switch
Voltage free OR with link 230V
L
N
Optional Link*
Voltage Free Switch
With Optional Link fitted - Can be used as a 230v switch live output to zone valve or boiler/heat source
Without Optional Link fitted - Can be used as low voltage switching for Boiler/heat source
*
*
Dimension (mm) 310 W x 110 H x 55 D
Ambient temperature 0°C-50°C
Relay Output
(2 minutes delay)
(230V AC, 3A)
Two Relays will be engaged whenever one or more
thermostats call for heating.
The relays will be disengaged when all the zone
thermostats stop heating activity
Previous model
L N L1
Room thermostat Terminal Note
T6360C 2 6 3 Link 3-5
RTC86.13 1 2 4 Sensor 6 - 7
1 2 4 Sensor 6 - 7
RTC75.713T
Button room stat
E91.713
Touch screen room ‘stat
1 2 3 Sensor 6 - 7
RTC84.13 1 2 4
-
*Voltage Free Switch
• With Optional Link fitted - Can be used as a 230v switch live output to
zone valve or boiler/heat source
• Without Optional Link fitted - Can be used as low voltage switching for
Boiler/heat source
RTC75.713T
Button room stat
E91.713
Touch screen room stat
Sensor 6 - 7
1 2 3
