Wunda E09 - Section E: Installing Wet Room Thermostats

13

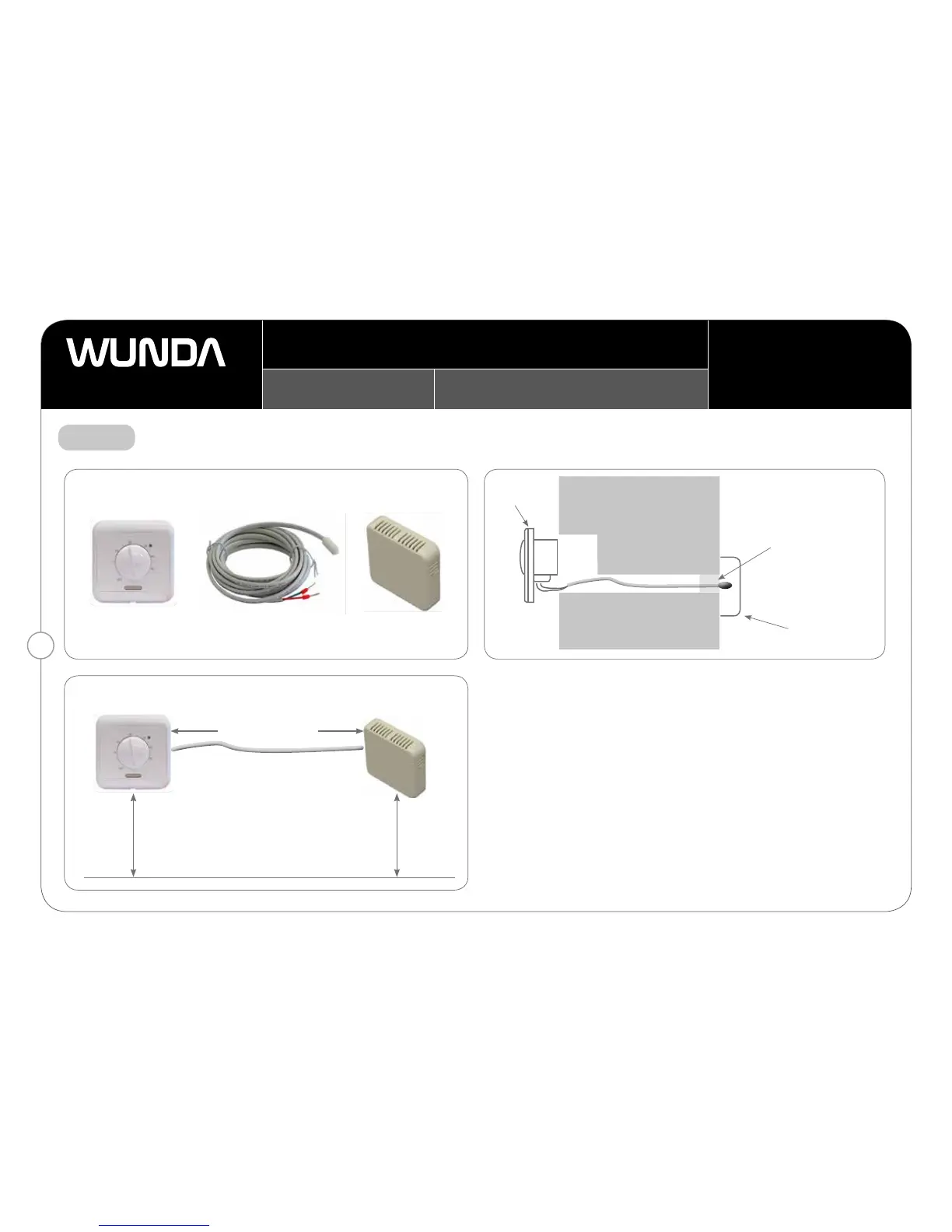

Section E Installing Wet Room Thermostats
For floor temperature sensing, place probe midway between pipe circuit runs to
monitor average floor temperature.
For air temperature, place unit on outside wall of wet room in desired location at
height of 1500 mm from floor level.
Check distance between thermostat’s terminal block and probe casing location of
wet room’s interior wall is no more than 3 metres.
Do not trim probe sensor to length to ensure the probe wire is long enough to
span the distance between the unit’s terminal block, to go through prepared hole
through wall and exit into supplied probe housing fixed onto interior wall of wet
room at 1500 mm from wet room floor level.
*Bathroom Stat
Unit can be used as a floor temperature sensor or an air temperature sensor.
Bathroom stat on outside
of wet room wall
Ensure hole is sealed
between wall space and
probe housing so that
only the wet room air
temperature is detected
Probe housing on inside
of wet room wall
1500mm 1500mm
* models: RTC86.13, RTC75.713T & E91.713 can be used with a probe
3000mm Probe
Probe Housing
Probe Housing
Stat
Max 3000mm distance
E09
Installation guide - wiring & plumbing
