Wunda E09 - Section C: Wiring schematic for single zone kit added to radiator system

9
10
This is when a single zone underfloor
heating kit is connected to an existing
radiator system without an individual zone
valve for the UFH and therefore unable to
call the boiler/heat source independently
for heat.
Although a room thermostat or program-
mable thermostat can be used to control
air temperature, this area can only be ON
when the existing heating system is ON.
When this is the case, a pipe thermostat
can be attached to the heating mains flow,
so that the new area of the underfloor
knows when hot water is available and
therefore stops the pump running when no
heat is available.
Underfloor
Heating pump
L N L1
E
L
N
Pipe thermostat
set at 35°C
L N E
230V
50Hz
1 2 3 4 5 6 7 8 9 10
Wundafloor Programmable
Thermostat
*A s
tandard dial thermostat
may be power from a time
clock.
*

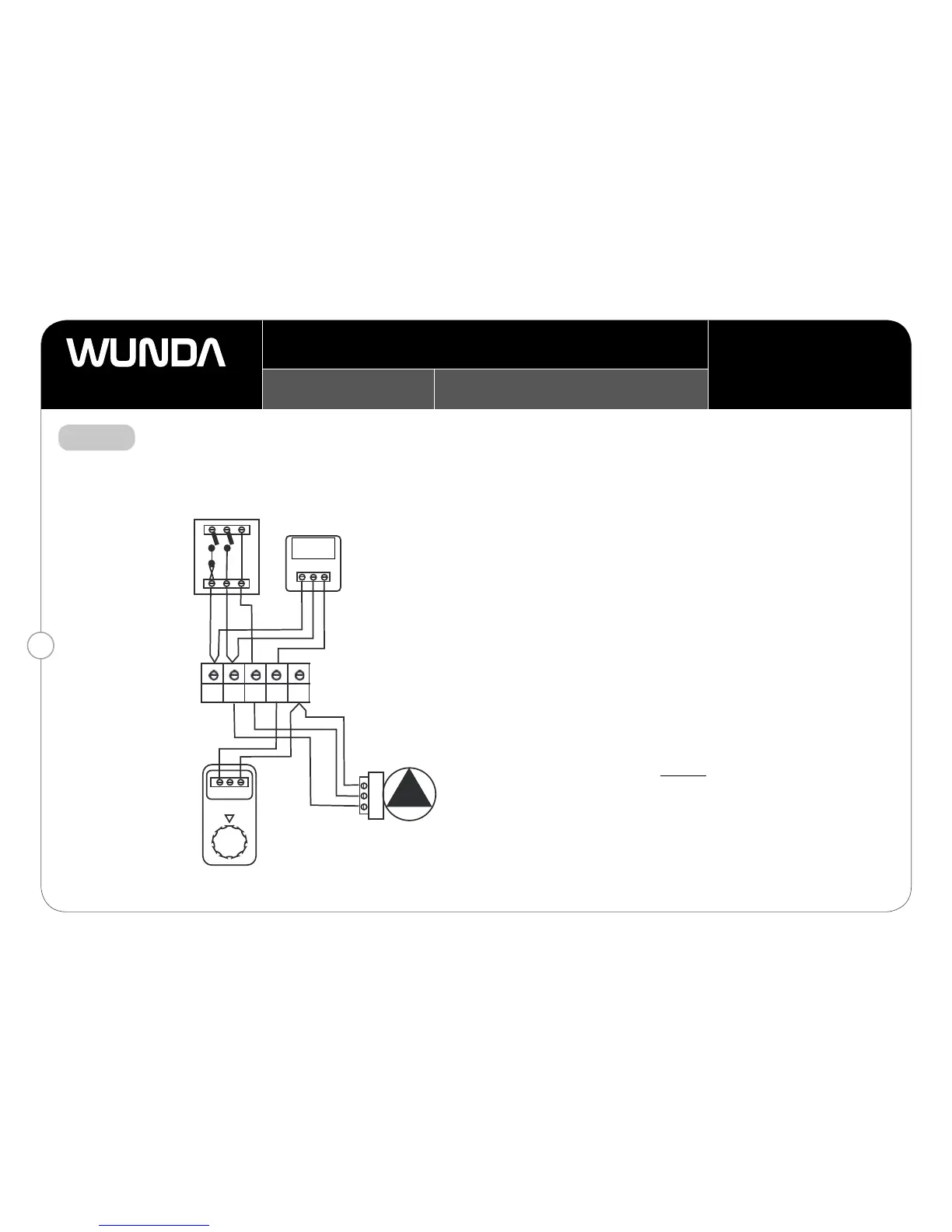

2C wiring schematic for single zone kit added to radiator system
Terminal Block
Section C 2C : Wiring schematic for single zone kit added to radiator system
This is when a single zone underfloor heating kit is
connected to an existing radiator system without an
individual zone valve for the UFH and therefore unable
to call the boiler/heat source independently for heat.
Although a room thermostat or programmable thermostat
can be used to control air temperature, this area can only
be ON when the existing heating system is ON.
When this is the case, a pipe thermostat can be attached
to the heating mains flow, so that the new area of the
underfloor knows when hot water is available and therefore
stops the pump running when no heat is available.
This drawing is for guidance only.
All installations should be undertaken
by a qualified person only.
E09
Installation guide - wiring & plumbing
