Instruction Manual
6mm/5mm
Hex Key
Base
Instruction manual
X-POLE
XPERT
LEADER IS POLE & AERIAL FITNESS
®
Product
X-POLE XPERT Height Chart
Fig. (1.1) Fig. (1.2)

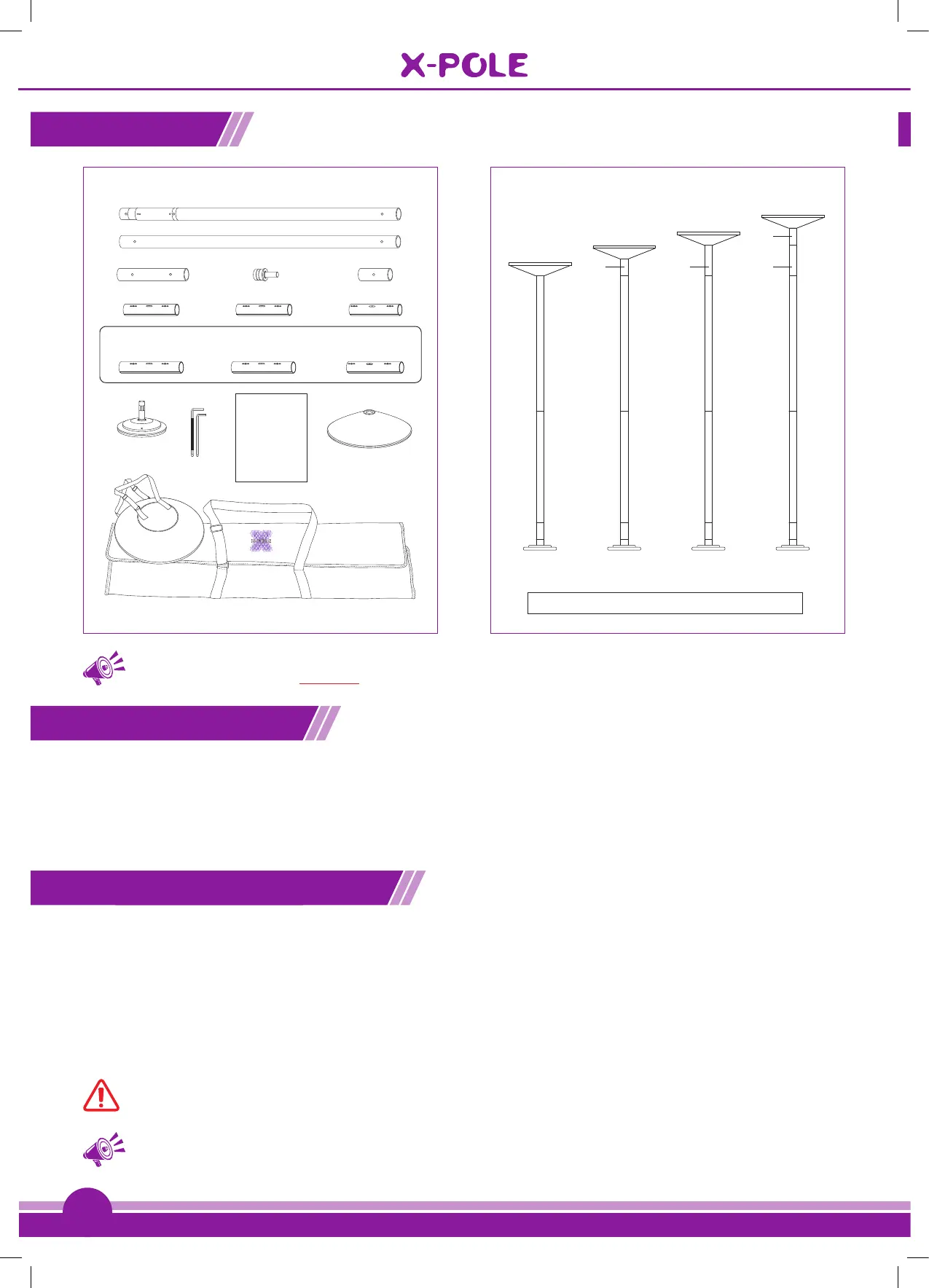

Box Contents
(40, 45, 48, 50 & 53mm) Pole set
What you need before you start:
1x Tape Measure & 1 x Spirit Level
TIP: Measurement Calculation: 100mm = 10cm = 3.94 inches (or divide the amount of millimetres
by 25.4 to get inches): ALWAYS use millimetres or inches for measurements (NOT cm & ft)
Checking the parts
Please check the contents of your XPERT pole with the contents diagram (Fig 1.1). If anything is missing or damaged,
please contact your point of purchase or call your local X-POLE office immediately (contact details on the back page).
Please study the contents and the part descriptions in the diagram [Fig 1.1] as these are used throughout the instruction
manual and are important for installation. Please also try using the parts before assembling, it is important that you
understand how they work.
X-Pole Xpert height chart
Using the full allowed length (125mm/5") of the Screw Adjuster (which adjusts the height of the pole) & both supplied
extensions (125mm/5" & 250mm/10") will allow the XPERT to fit ceilings between the ranges of 2235mm (88") to
2745mm (108"). If you have a ceiling which is higher than 2745mm (108"), you will need to purchase additional/optional
extensions from our website www.xpole.com (first select your region, then search for the 'Extensions' section) or from
your point of purchase. The Screw Adjuster has the capability of extending the XPERT pole by 125mm (5"). With the
Screw Adjuster closed (contracted) you will be able to achieve a height of 2235mm (7'4") & with it open (extended) using
both the supplied extensions, you will achieve a height of 2745mm (9').
CAUTION: You should NEVER use more than 125mm (5") of the Adjuster Unit.
TIP: Ceilings over 3.35m/11ft will require mounts or ceiling plates - please see pg.15. If you
have any doubts about the height you wish to reach, contact your local X-POLE office or
Point of Purchase.
Sizes achievable using the 125mm & 250mm extensions
2235 - 2375mm
88" - 93.5"
7' 4"- 7' 9½"
2360 - 2500mm
93" - 98.5"
7' 9"- 8' 2½"
2485 - 2620mm
98" - 103.25"
8' 2"- 8' 7¼"
2610 - 2745mm
102.75" - 108"
8' 6"- 9'
125mm
250mm250mm125mm
