XAC xCL AT-170 Series User Manual

RONT AREA
1 7” Touch Display
2 Printer Paper Cover & Contactless Card Tapping Area
3 Camera for barcode scanning (Optional)
4 Smart Card Reader (SCR) slot
5 Audio Jack
REAR AREA
6 Battery Compartment
7 Charging Contact
RIGHT SIDE
8 Magnetic Strip Reader (MSR) slot
9 Power Button (Press > 3 seconds to power on/off)
10 USB OTG port (type C)
■ AT-170 Power spec:
Input: 5V DC, 2A
■ Power Adapter spec:
Input: 100 ~240 Vac
Output: 5V DC, 2A
Caution: Use only the AC adapter approved and provided by XAC Automation
Corporation for use with this device. Use of any other AC adapter may cause a risk of
fire or explosion.
■ Operating Temperature:
0
o
C to 40
o
C

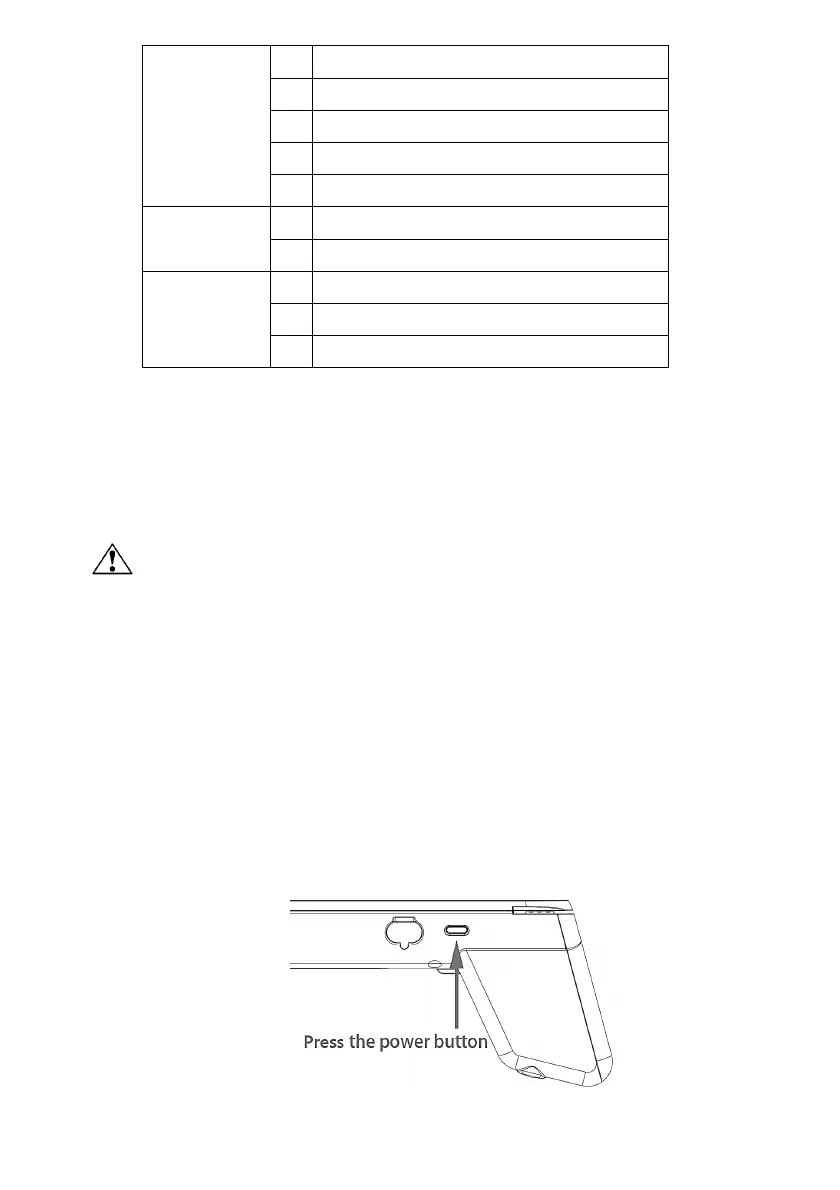

3. POWER ON/OFF THE DEVICE
Power ON – Press and hold the Power key for 3 seconds until the screen is activated.
(Figure 2)
Power OFF -- Press and hold the Power key for 3 seconds to shut down the device.
Figure 2

XAC xCL AT-170 Series Specifications

General

Brand	XAC
Model	xCL AT-170 Series
Category	Payment Terminal
Language	English
