Assembling of aircraft
Preparations before assembling
In order to facilitate transportation, the head cover, antenna frame components, center hatch cover
and arm fixing slider of P30 have been installed on the aircraft body before leaving the factory. User
will need to remove these parts temporarily before assembling the aircraft, and install them back to
their original position after installing the arms.

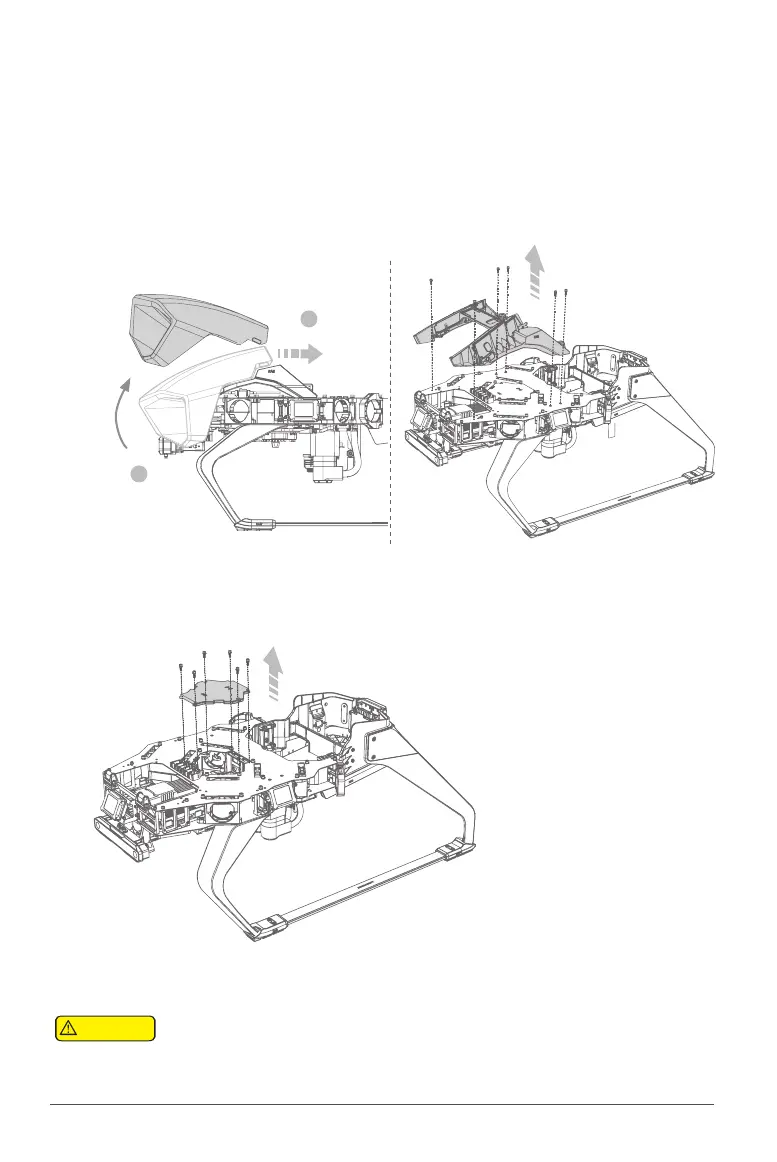

2.Disassemble the antenna frame
Disassemble the antenna frame fixing screws
and temporarily remove the antenna frame
from the airframe.
3.Disassemble the center hatch cover
Dismantle fixing screws of center hatch cover
and temporarily remove the hatch cover.
Before the reassembling the arm, please be certain to match the
corresponding markings on the upper plate of the fuselage to the markings on
aluminum sleeve of each arm. (Refer to Page 5). Incorrect assembly of the Arm
may will cause flight accident.
Attention
1.Disassemble the head cover
Lift the head cover from the front, and push the
head cover backward.
To Next Page
