Installation
Install SuperX Modules

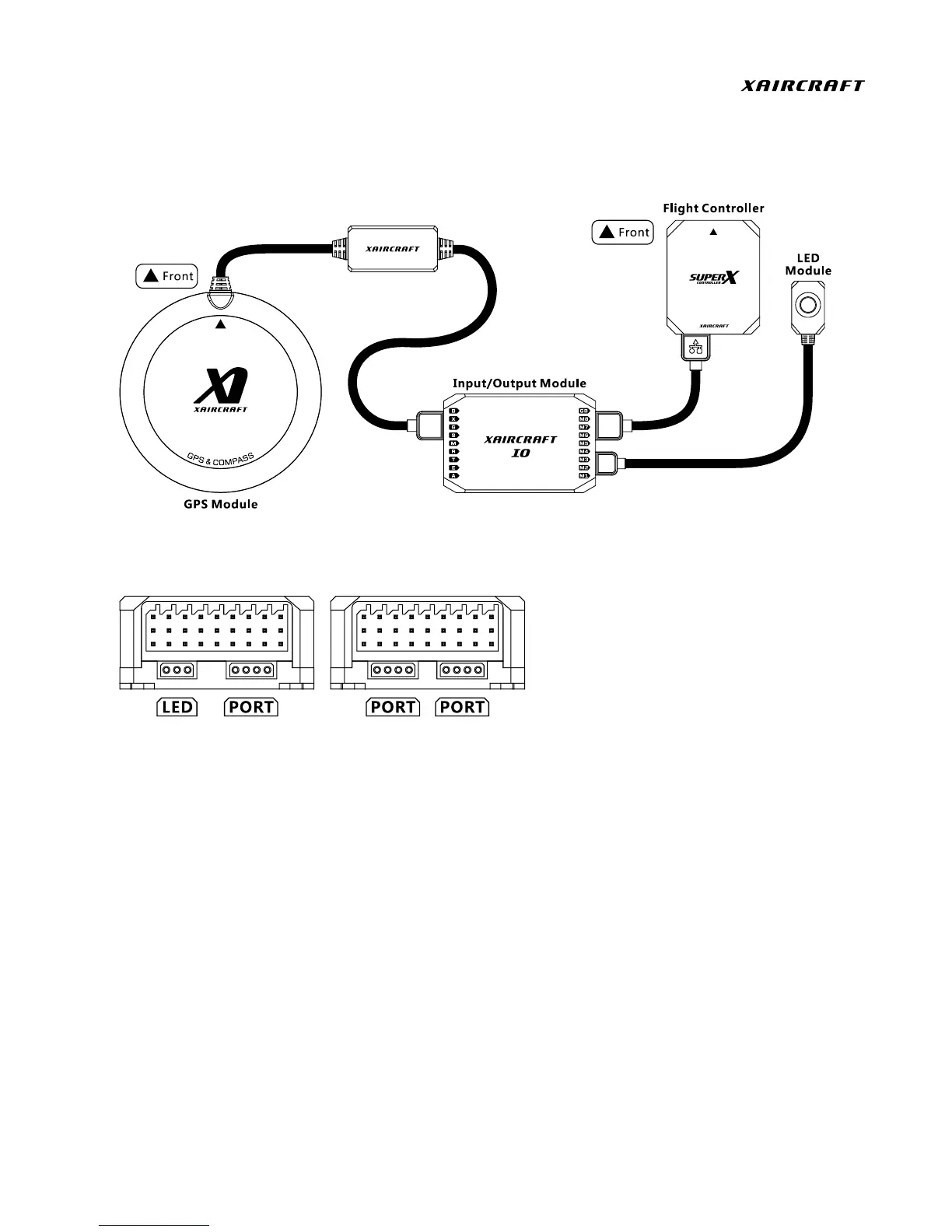

Connect Flight Controller, GPS Module, LED Module to IO Module as diagram shows.
Flight Controller and GPS can connect to any 4-pin port:
Flight Controller installation notice:
1. Should be installed in cg position on copter.
2. Should pay attention to install direction, the triangle points to the head of copter.
GPS module installation notice:
1. Horizontal install, higher than other electronic equipment.
2. Should pay attention to install direction, the triangle points to the head of copter.
3. Close to Flight Controller.
4. Far away from motor and other electric equipment.
