Xaircraft SuperX - SuperX System Interface; Module Connections

4
©2013 XAircraft All Rights Reserved.
Products
Electrical Features
Weight
Size
Flight Controller
Input Voltage: 5.7V ~ 6.0V
Power consumption:
 Max. : 3.5W（0.6A@5.8V）
 Normal: 0.6W（0.1A@5.8V）
65g
Long: 42.1mm
Width: 34.2mm
High: 27.9mm
GPS Module
4.8V ~ 6.0V
58 g
Diameter:74.4mm
High: 11.35mm
IO Module
Input Voltage: 11.1V~28V（3S ~ 6S LiPo）
Output Voltage: 5.8V，≤3A
Power Consumption:
 Max 3W(120mA@25.2V）
 Normal 0.13W(5mA@25.2V)
35g
Long: 56mm
Width: 37.5mm
High: 17.44mm
LED Module
Power Consumption: 3W
Long: 16.9mm
Width: 12.11mm
High: 7mm

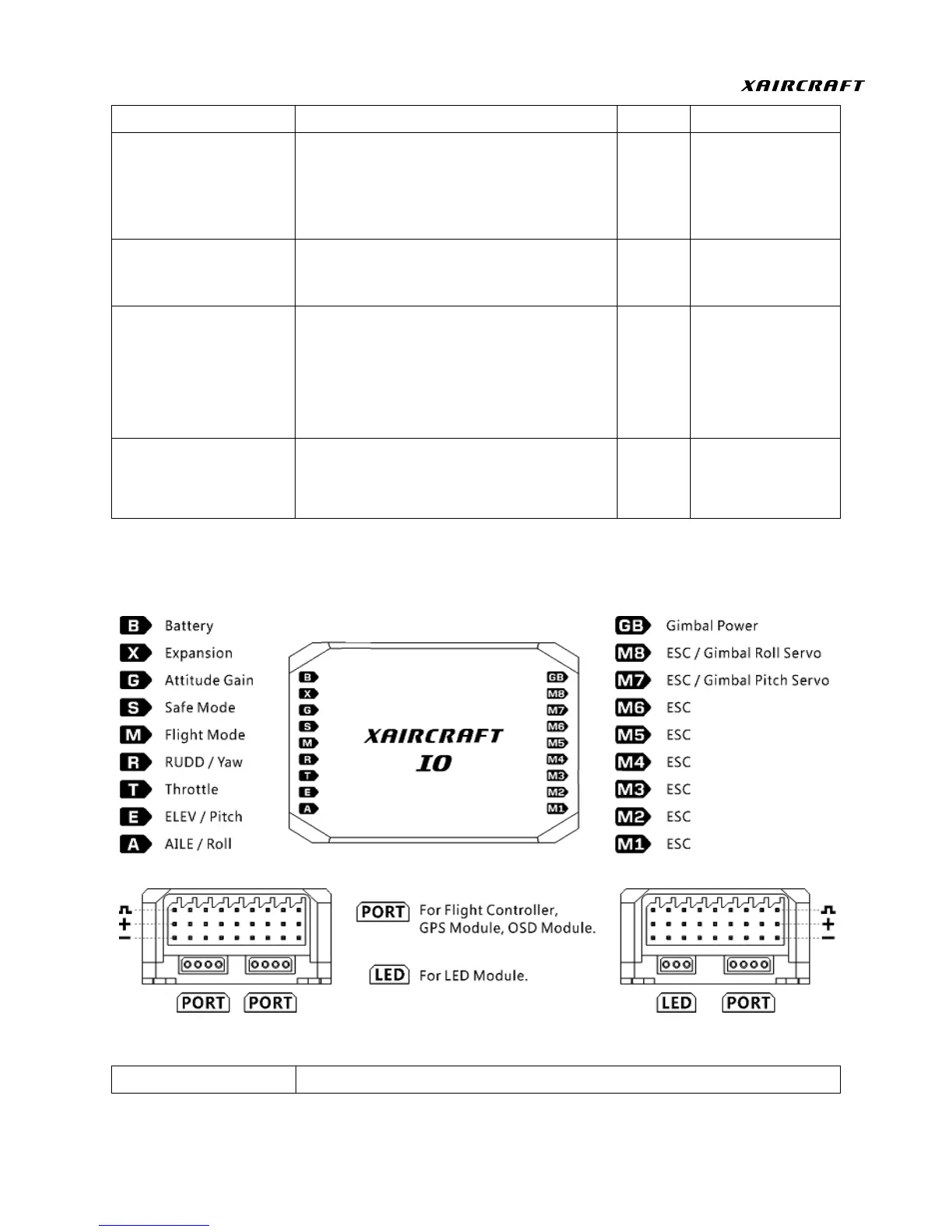

SuperX Interface
IO Module Input Ports
IO Ports
Functions
