Xantrex FREEDOM SW 3000 Installation Guide

975-0546-01-01 21
Installing the Inverter/Charger
This guide for use by qualified installers only.

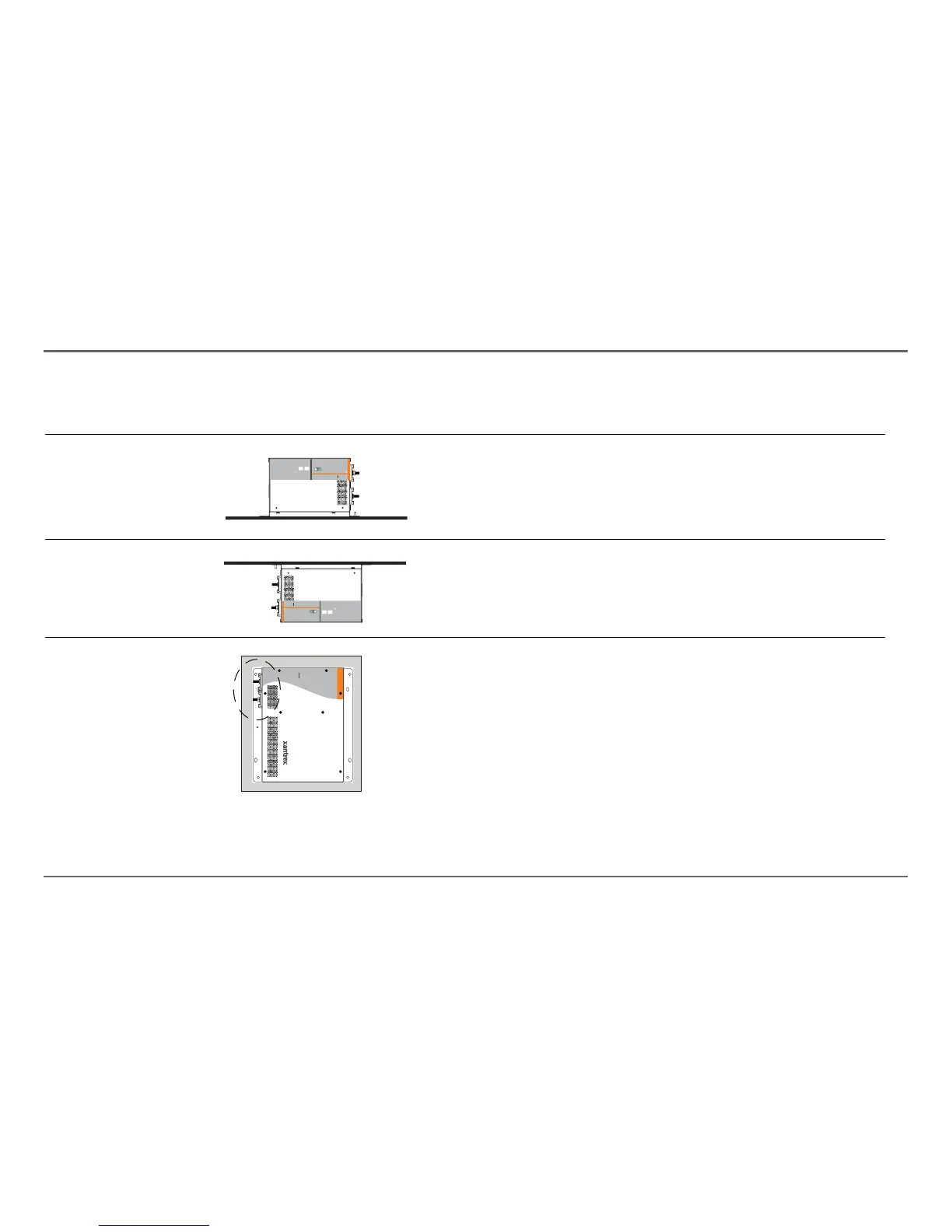

Figure 3 Mounting Orientations
Orientation
Approved Mounting
Orientation? Comment
Desktop Mount Yes Ideal.
Upside-down Mount Yes (for non-marine
applications only)
Suitable only for non-marine applications
with no risk of condensation or dripping
water.
Wall Mount DC on Left Yes (for non-marine
applications only)
On a vertical surface with DC terminals
facing left. This orientation is suitable only
for non-marine applications with no risk of
condensation or dripping water.
FREEDOM SW 3000
Inverter
Reset Enable
Inverter AC/
On Charge Fault
Xanbus Interface
FREEDOM SW 3000
Inverter
Reset Enable
Inverter AC/
On Charge Fault
Xanbus Interface
MODEERF SW 0003
