12

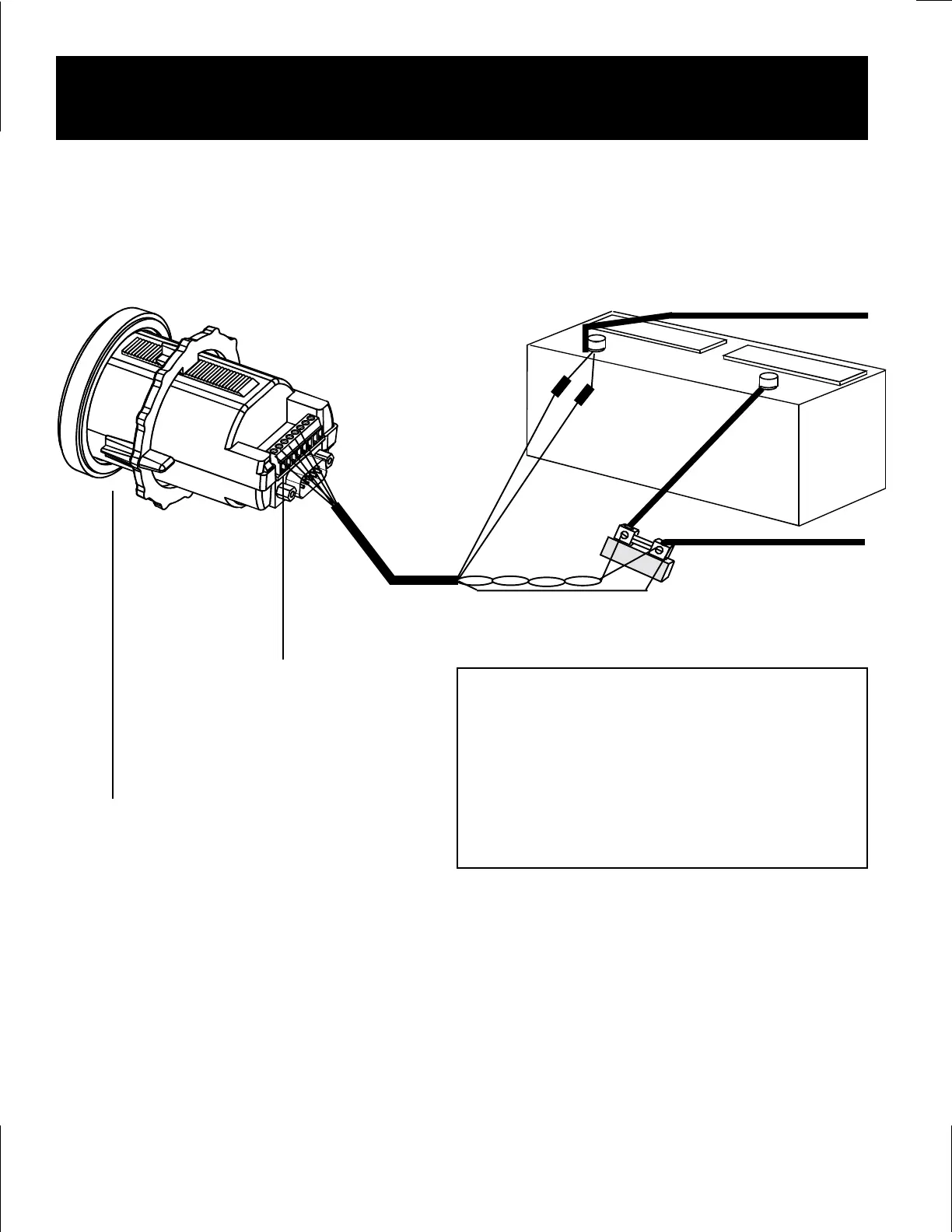

Wiring Overview
This drawing is for 12 V & 24 V systems.
For higher voltages see Prescaler use on page 44.
DC+
Twisted pair cable
Fuses
Terminal Strip
Connections
See Detail page 14
Mounting Page 10
Removing page 11
INSTALLATION TIP:
Use appropriate strain relief to
avoid damage to the connector
and terminal strip on the rear of
the Link 10.
DC-
(system ground)
See Detail page 13
Shunt
+
-
NOTE: To limit Voltage measurement error do not exceed wire lengths shown
below. Error assumes 16 AWG wire and max. power consumption.
0.5% Error 72 Feet Maximum
1.0% Error 150 Feet Maximum
3.0% Error 450 Feet Maximum
TIP:
For a neat and professional looking installation use plenty of:
* Nylon wire wraps
* Wire wrap anchor points.
To Next Page
