Xantrex SW Series User Manual

INSTALLATION
 2001 Xantrex Technology, Inc.
5916 - 195th Street N. E.
Arlington, WA 98223
Telephone: 360/435-8826
Fax: 360/435-2229
www.traceengineering.com
SW Series Inverter/Charger
Part No. 2031-5
Rev. C: February 2001
Page
21
120 VAC GROUND FAULT INTERRUPT OUTLETS (GFI’S)
Xantrex has tested the following 120 VAC GFI’s and found them to work satisfactorily with our inverters:
LEVITON 6599
PASS & SEYMOR 1591 4A957
ACE Hardware ACE 33238
WARNING LABEL
A warning label is provided to inform all personnel that an inverter is installed in your electrical system.
This label should be installed at the electrical panel that is being powered by the inverter. Be cautious until
the inverter is disconnected from your electrical system.

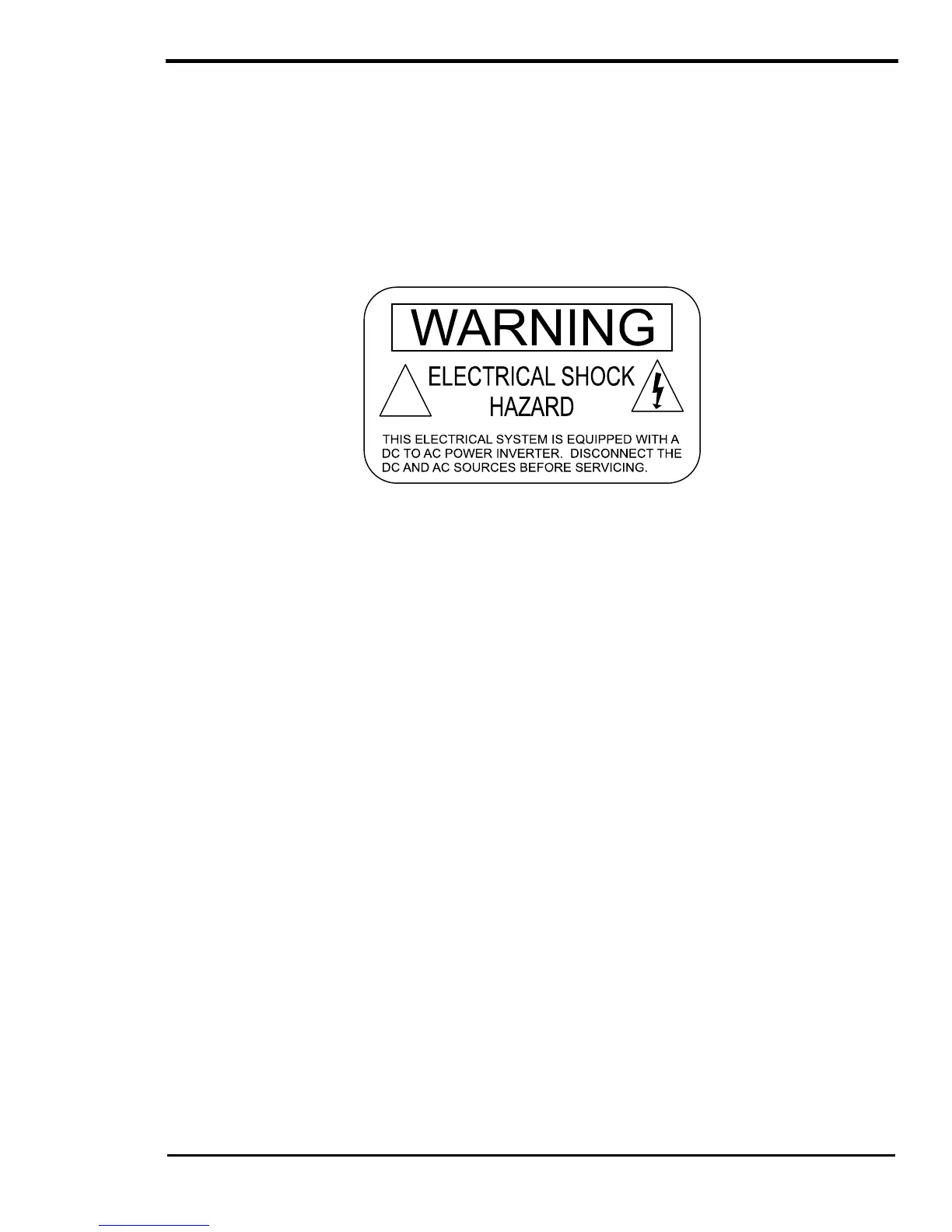

Figure 10, Warning Label
!

Xantrex SW Series Specifications

General

Input Voltage	12V, 24V, or 48V DC
Output Voltage	120V AC
Waveform	Pure Sine Wave
Output Frequency	60 Hz
Operating Temperature	-20°C to +50°C
Battery Charger	Yes
Protections	Overload, Over-temperature, Short Circuit
