Installing Truecharge+
2–9
Connecting DC Wiring For A Single Battery Or Multiple Batteries
The procedure for installing the DC wiring applies to a single battery or
multiple batteries or battery banks. Figure 2-3 shows the connection
order.

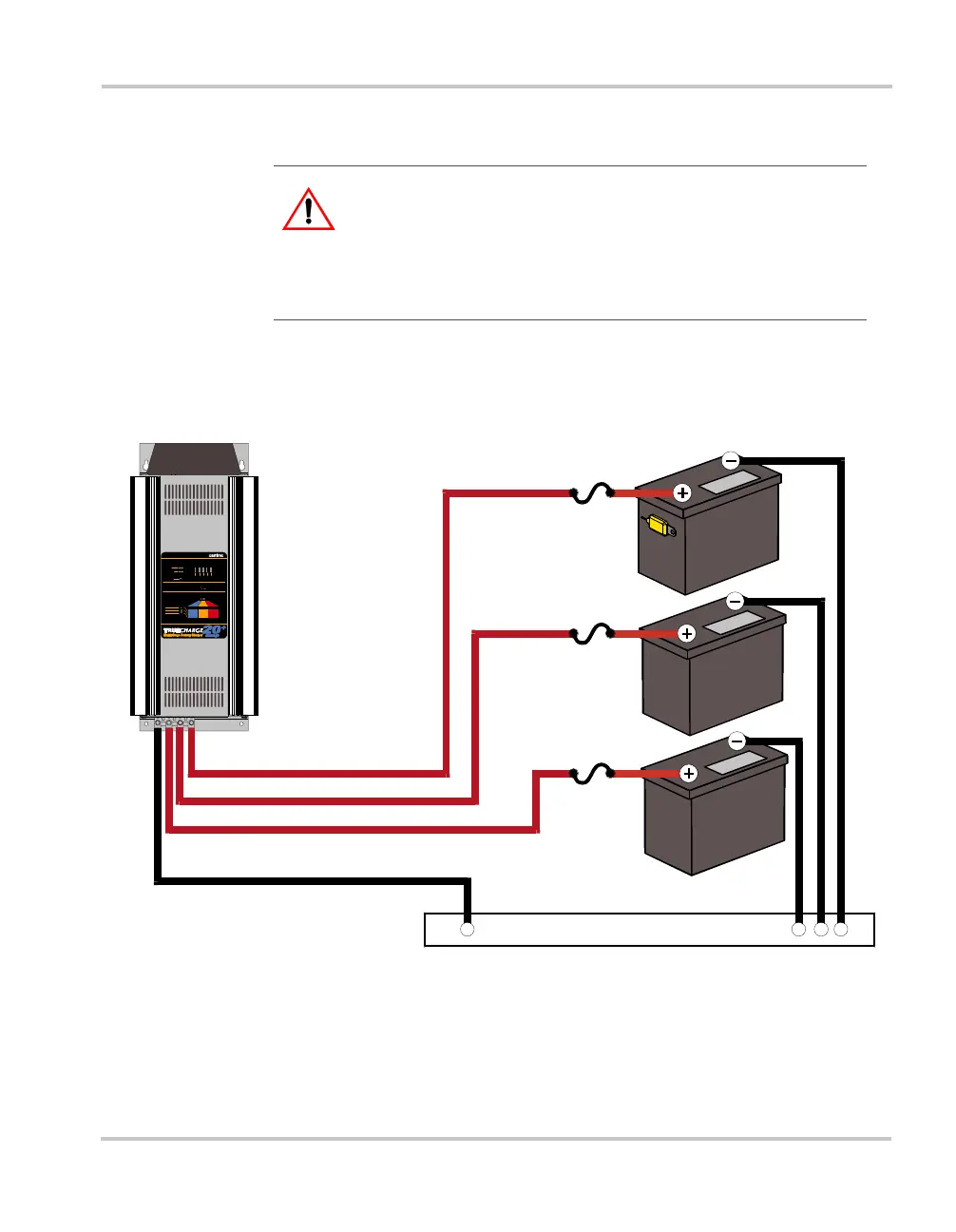

Figure 2-3 DC wiring connection order
WARNING
Truecharge+ cannot be set to deliver different charging
profiles at each output. Therefore all the batteries you are
charging must be the same type, that is, all should be flooded,
or all gel, or all AGM.
13.8/13.4
Cold Warm H ot
14.4/13.514.0/13.1
14.2/13.8
Output Volts
Absorption / Fl oat
Battery Type
Flooded
Ge l
Equalize
Charging
Ready
Bulk/Absorption/Float 13.5 V (fi xed)
14.6/14.2
TM
14.0/13.114.3/13.4
AGM
14.6/13.7
14.8/13.9
Bulk/Absorption
Battery Temperature
1 3 5 10 20
Status Charging Current (A)
Charger Mode
1 -red
14-black
2 -red
3 -red
4
5
6
10
11
12
789
13
DC Negative Bus
To Next Page
