This document describes the setup and initial configuration of an Xbox One console, covering physical connections, external devices, and digital setup steps.

Function Description

The Xbox One is a home video game console developed by Microsoft. It serves as an entertainment hub, allowing users to play video games, stream media content, and access various applications. The console is designed to integrate with a television and, optionally, a set-top box for cable or satellite TV, enabling control of live TV content through the Xbox One. It supports both wired and wireless internet connections for online gaming, updates, and streaming services. The system also supports external storage devices for expanding game and app storage.

Usage Features

Physical Setup:

The initial setup involves unboxing the console and its components, which typically include the Xbox One console, a Kinect sensor (optional), power supply, power cord, Xbox One Wireless Controller, two AA batteries, one HDMI cable, and documentation.

Protective Tape Removal:

Before positioning the console, a protective tape located over the disc tray opening on the front left side of the console must be removed.

Console Positioning:

Proper placement of the console is crucial for optimal performance and longevity. The console should be placed on a stable surface, in a well-ventilated, relatively cool area, away from direct heat sources. It must be uncluttered, meaning no other objects should be placed on, under, or directly next to it, as objects on the top right can block its heat vents. The Xbox One console is designed to be placed horizontally only.

Connecting to TV:

The Xbox One connects to an HDMI-compatible TV or HDTV using the included HDMI cable. Users need to locate the HDMI OUT port on the back of the console (the leftmost HDMI port) and connect one end of the HDMI cable there. The other end of the cable connects to an HDMI input on the TV. The video output for the Xbox One console is exclusively HDMI.

Connecting to a Set-Top Box (Optional):

For users with cable or satellite TV, the Xbox One can integrate with a set-top box (STB) to control live TV content. This involves disconnecting the HDMI cable from the TV that connects to the STB and then connecting that cable to the HDMI IN port on the back of the Xbox One console (the rightmost HDMI port). If a set-top box is not used, this step can be skipped.

Connecting to Router or Modem (Wired Connection Only):

For a wired internet connection, an Ethernet cable is used to connect the router or modem to the networking port on the right side of the back of the console. Users who prefer a wireless connection can skip this step, as they will be prompted to connect to a wireless network during the digital setup.

Connecting a Kinect Sensor (Optional):

If a Kinect sensor is part of the system, its cable is plugged into the dedicated Kinect sensor port on the back of the Xbox One console. The Kinect sensor cable is 3 meters (9 feet) long, so the console and sensor must be positioned close enough for the connection.

Connecting a USB 3.0 External Storage Device (Optional):

External storage drives can be used to save games, apps, and console settings. These drives must meet specific requirements: a USB 3.0 connection (including any USB hub used), at least 256 GB of storage, and a preformatted partition. Drives that do not meet these criteria will be treated as storage for media like music or video. The Xbox One recognizes up to three external drives at one time.

Powering On and Digital Setup:

After physical setup, the console is powered on by pressing the Xbox button on the front-right side of the console or the Xbox button in the center of the controller. The first power-on initiates the digital setup experience. If the console is powered on via the front button, the controller's Xbox button will flash, prompting the user to turn on the controller by pressing its Xbox button. Ensure controller batteries are properly installed if it doesn't power on.

Language Selection:

The first step in personalizing the console is selecting the desired language from a list of options. If the preferred language is not immediately available, users are advised to select a readable language to connect to the internet and perform a system update, after which more languages may become available.

Language Variety Selection:

Following language selection, users identify the specific regional variety of that language they use (e.g., United States English). This helps improve Voice Navigation understanding and adjusts on-screen spelling and grammar to match regional expectations.

Display Settings Adjustment (If Prompted):

In rare instances where the Xbox One cannot automatically determine the TV's resolution, a "Change your display" screen appears. Users must manually select their screen's resolution (e.g., 720p, 1080p) and confirm. If this screen does not appear, the console proceeds directly to the next step.

Internet Connection:

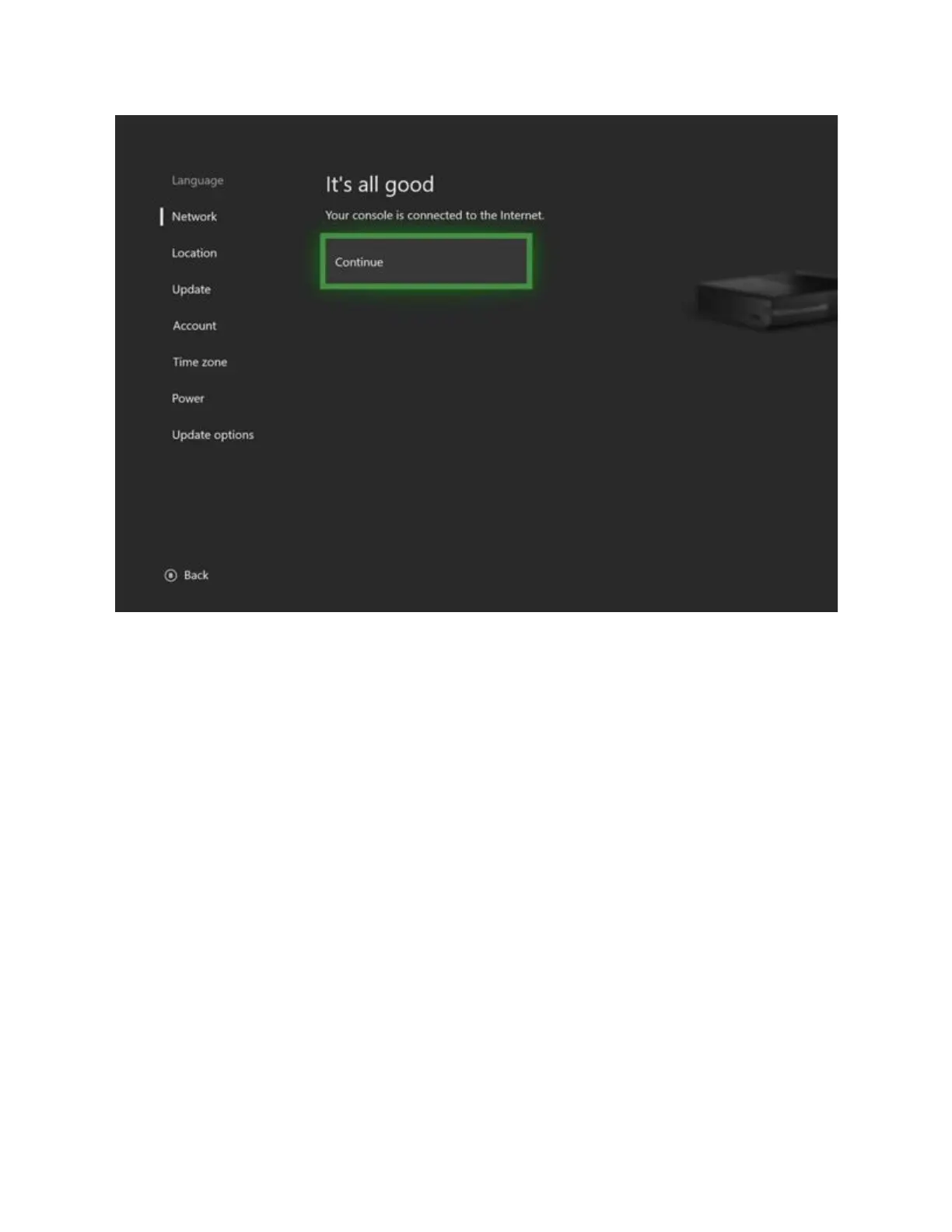

The console then connects to the internet. If a wired connection was established earlier, the system will proceed to a "You're Connected" screen. If no wired connection is detected, users are prompted to select a network, choosing between "Use wired connection" (which launches a troubleshooter if connection fails), "Select from the list of wireless networks" (ordered by signal strength), or "Add wireless network" (requiring manual entry of SSID, security type, and password).

Location Selection:

Once connected to the internet, users select their country of residence. This sets the console's location and store region, ensuring access to content available and playable in that specific region. This selection does not override the previously chosen language.

System Update:

A system update is required to use the Xbox One for the first time. The console will display the update size, and users can choose to "Start update" to begin the download immediately or "Turn off console" to defer the update (the setup will resume from where it left off when the console is powered back on). System updates can take 15 minutes to over an hour. Users can choose to complete digital setup on a mobile device via the Xbox app during the update or wait for the console to finish updating.

External Storage for New Users:

After digital setup, the Xbox One will prompt new users to format an external storage device if they intend to use it for Xbox games and apps. If the device is intended for personal media only, it can be kept as media storage without formatting. It's crucial to note that reformatting will erase all data on the drive. If not prompted or if formatting is canceled, it can be done later via System > All Settings > System > Storage, then selecting the device and "Format for games & apps."

External Storage for Upgrading/Adding Users:

Users upgrading or adding an additional Xbox One can use an external storage device to back up settings and copy games and apps from their original console, simplifying digital setup. Backups do not include console-specific settings like console name or TV/cable box/audio receiver control.

Maintenance Features

Ventilation and Heat Management:

Proper placement in a well-ventilated area, away from direct heat sources, is a key maintenance feature. Avoiding clutter around the console, especially on the top right where heat vents are located, prevents overheating and ensures optimal performance and longevity.

Cable Management:

As a best practice, all cables connected to the back of the console should be gathered and kept away from the console itself to prevent interference or damage.

System Updates:

Regular system updates are a critical maintenance feature, ensuring the console runs the latest software, which often includes performance improvements, bug fixes, and security enhancements. These updates are required for initial use and are essential for continued optimal operation.

External Storage Management:

The ability to connect and manage external USB 3.0 storage devices allows users to expand storage for games and apps. This helps in maintaining console performance by offloading data from the internal drive and provides flexibility for users with large game libraries. Understanding the requirements for external drives (USB 3.0, 256 GB+, partitioned) is important for effective use.

Troubleshooting Resources:

The manual references troubleshooting guides for common issues, such as "Troubleshooting system updates," "Troubleshoot external storage detection on Xbox One," and "Using the Display Troubleshooter." These resources empower users to resolve problems independently, contributing to the console's ongoing usability.

Battery Management:

The initial setup includes installing AA batteries in the wireless controller. The manual implicitly encourages checking battery installation if the controller does not power on, highlighting a basic maintenance aspect for peripherals.
