24

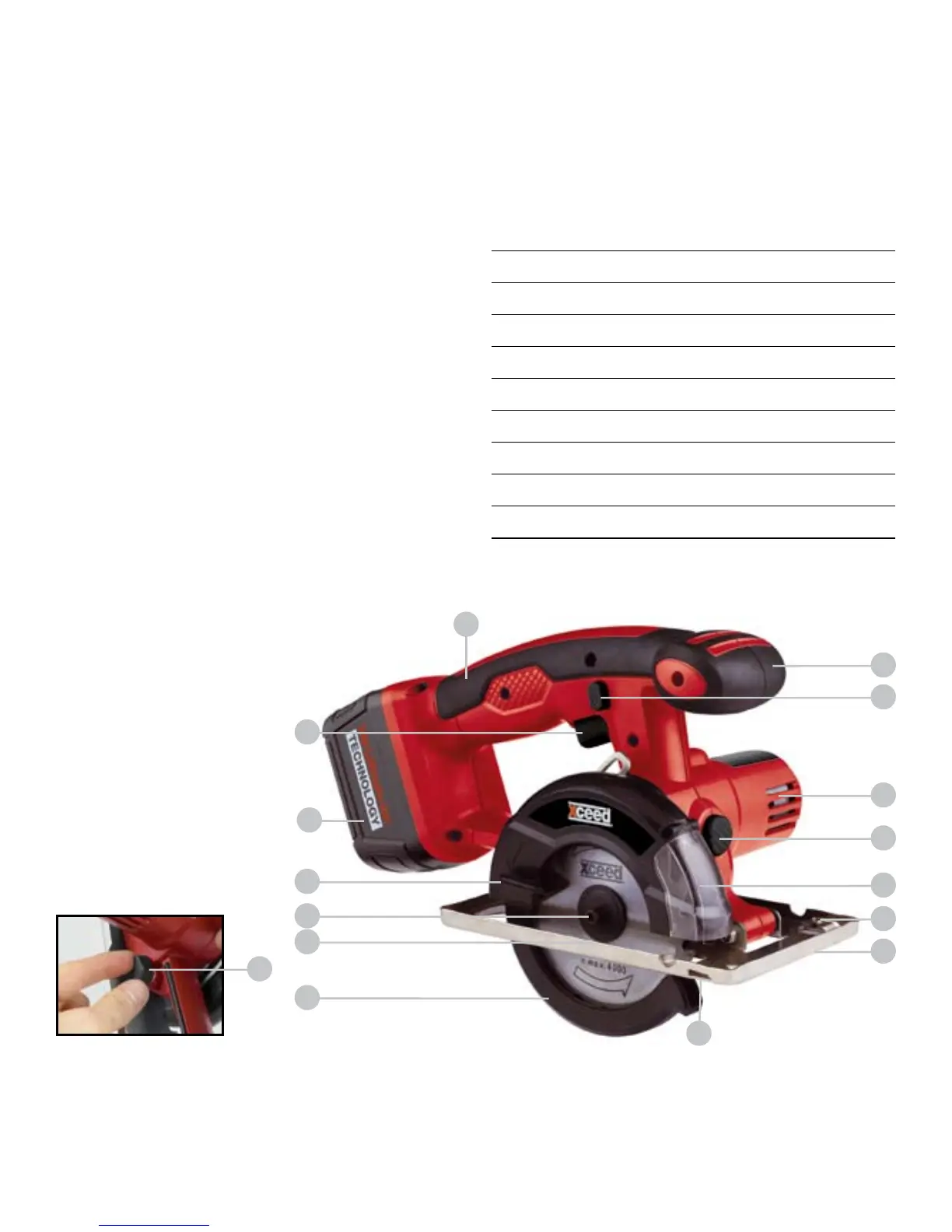

Know your product: Trim Saw
Before using the Trim saw, familiarise yourself with all the
operating features and safety requirements.
This trim saw is designed for light and short-term use
around the home and domestic applications. It is particularly
useful for trimming plywood and similar sheet material.
It is NOT suitable for metal cutting blades or discs.
1. Battery pack
2. Handle grip
3. Depth adjustment
locking knob
4. Lock-off button
5. Motor housing
6. Auxiliary handle
7. Parallel fence
attachment point
8. Spindle lock
9. Upper blade guard
10. Parallel fence (not shown)
11. Trigger switch
12. Base plate
13. Lower blade guard lever
14. Lower rotating blade guard
15. Fence locking knob
16. Outer blade flange
17. Blade locking screw
18. Hex Key
Specifications
Tool Model #: XK18TS
Voltage: 18Vdc
No-load speed: 2,000 min-1
Cutting depth at 0°: 38 mm
Blade diameter: 110 mm (4 5/16”)
Blade bore: 20 mm (25/32”)
Blade kerf: 2.0 mm
Weight (with battery): 1.75 kg
Charger Model #: XK18L1CH
Battery pack Model #: XK18LB
1
2
7
11
6
3
8
5
4
15
12
13
14
9
17
16
