Clearing
Main
Staple
Jams
in
the
Business
Ready
Finisher

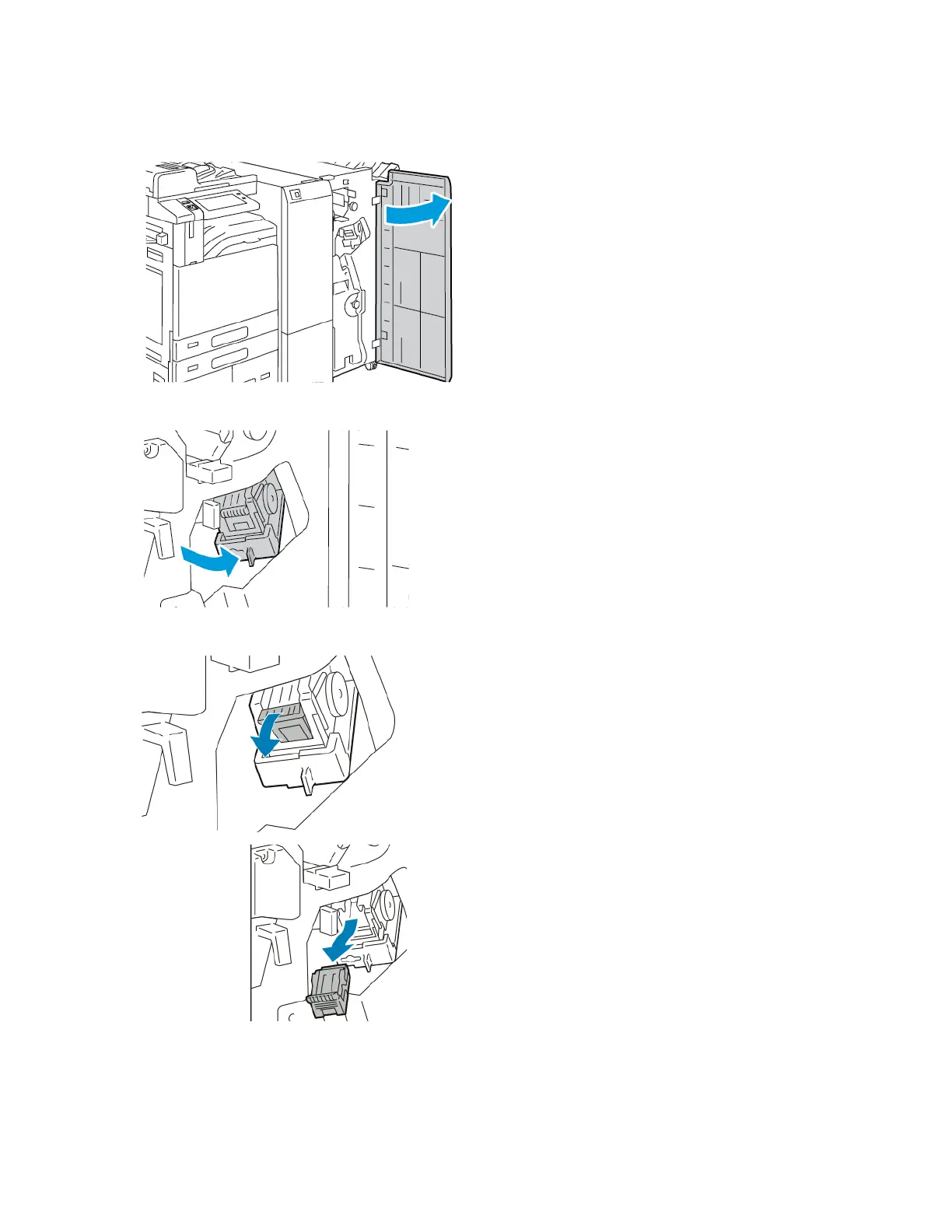

1.
Open
the
f
ront
door
of
the
Business
Ready
Finisher.
2.
Grasp
the
stapler
assembly
lever
R1,
then
move
the
lever
to
the
right.
3.
T
o
remove
the
staple
cartridge,
grasp
the
orange
handle,
then
pull
it
firmly
toward
you.
X
erox
®
AltaLink
®
C81XX
Series
Color
Multifunction
Printer
User
Guide
325
T
roubleshooting
324
326
