Xerox C8130 - Internal Parts

IInntteerrnnaall PPaarrttss

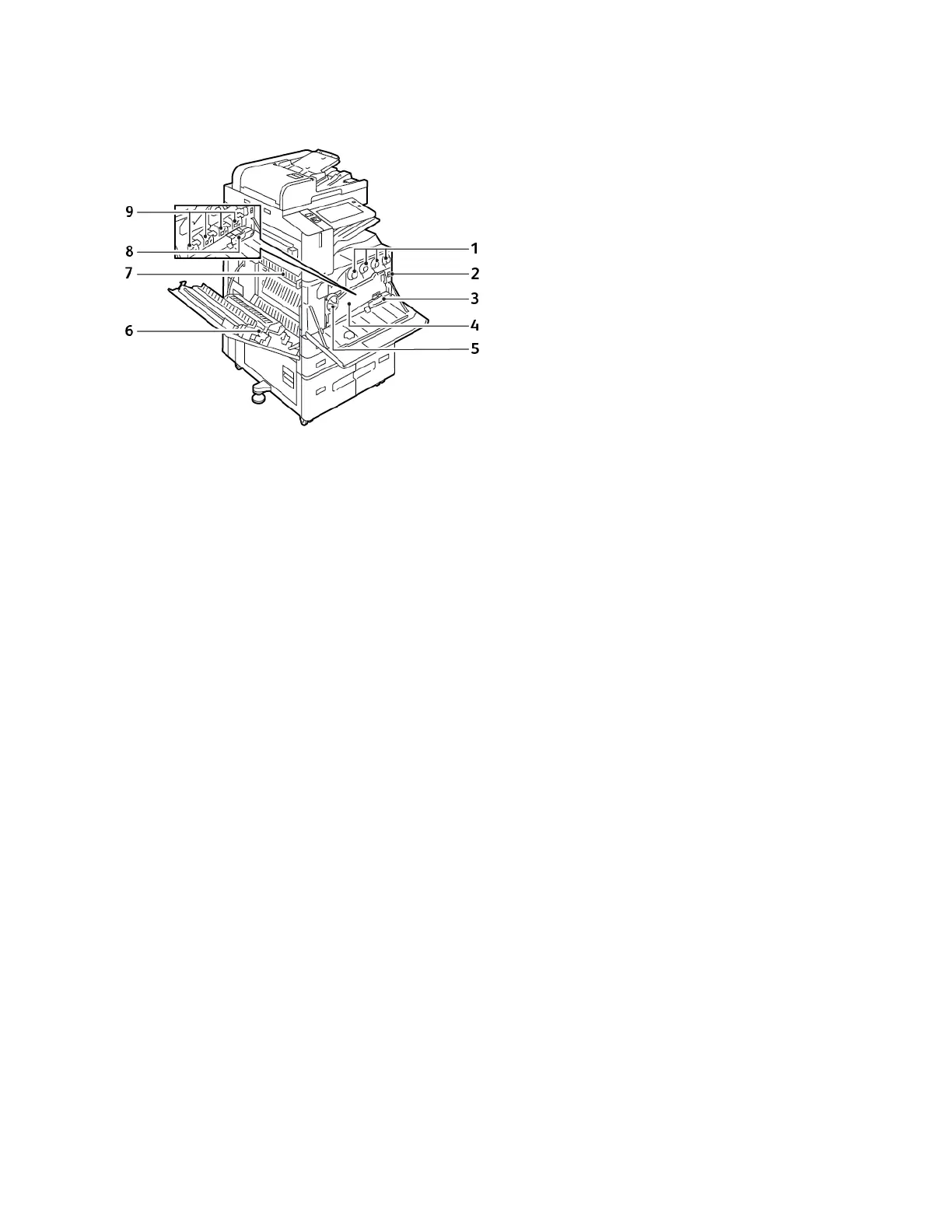

1. Toner Cartridges
2. Main Power Switch
3. Waste Container
4. Waste Toner Transport Assembly
5. Waste Toner Transport Release Switch
6. 2nd Bias Transfer Roll
7. Fuser Assembly
8. Transfer Belt Cleaner
9. Drum Cartridges
