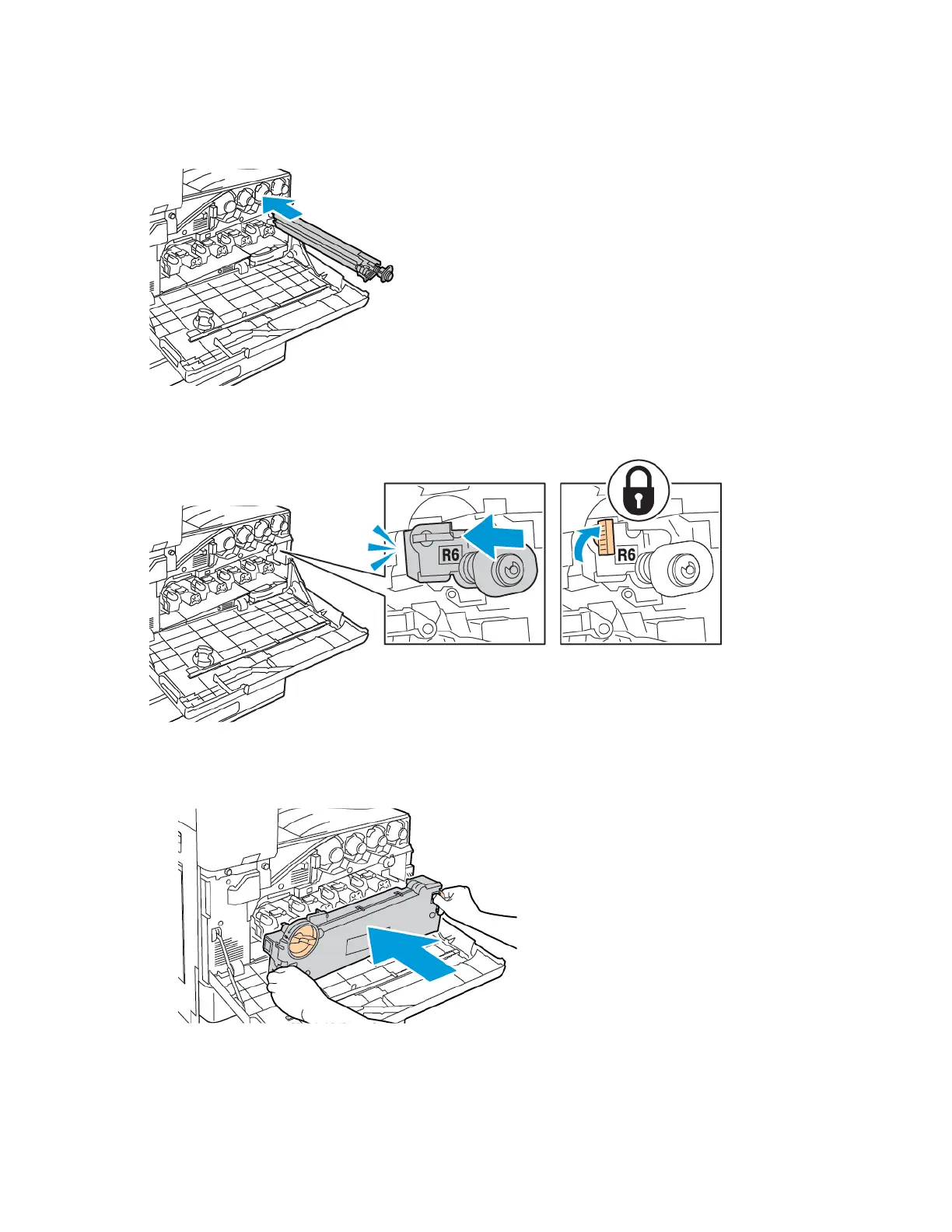

6.
Support
the
new
transf
er
belt
cleaner
with
your
left
hand
and
slide
it
straight
into
the
opening
until
it
stops.
7.
Push
the
belt
cleaner
until
it
clicks
into
place,
then
to
lock
the
belt
cleaner,
turn
the
orange
lever
to
the
right.
8.
T
o
insert
the
waste
toner
transport
unit:
a.
P
osition
the
waste
toner
transport
unit
as
shown.
