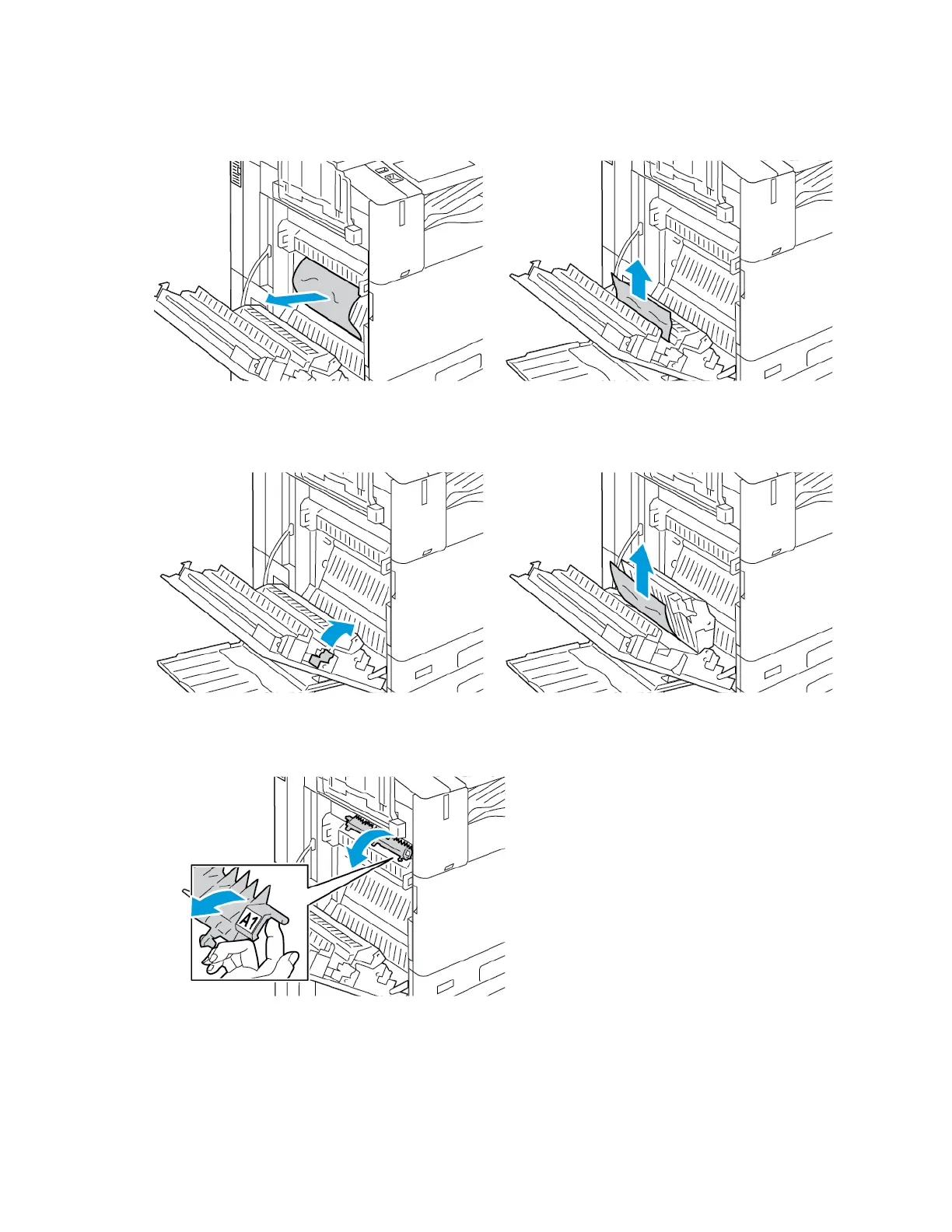

3.
R
emove
the
jammed
paper.
4.
If
paper
is
jammed
on
the
inside
of
door
A,
lift
handle
A3,
then
remove
the
jammed
paper.
R
eturn
handle
A3
to
the
original
position.
5.
If
paper
is
jammed
in
the
fuser,
remove
the
jammed
paper
from
areas
A1
and
A2.
a.
T
o
open
the
paper
guide,
pull
handle
A1
toward
you.
X
erox
®
AltaLink
®
C81XX
Series
Color
Multifunction
Printer
User
Guide
293
T
roubleshooting
292
