Clearing
Jams
Under
the
Office
Finisher
T
op
Cov
er

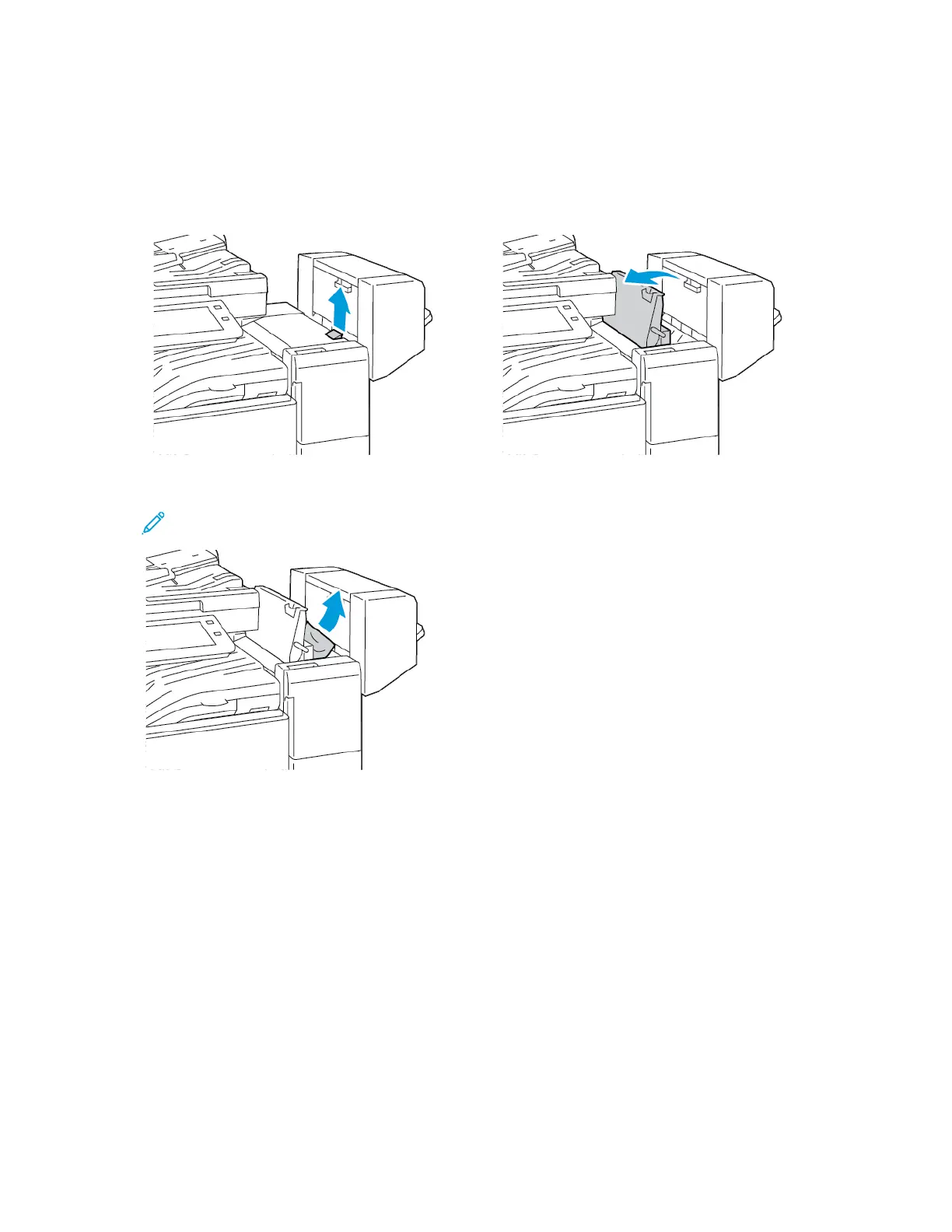

1.
Pull
up
the
lever
on
the
top
cover,
then
open
the
top
cover.
2.
R
emove
the
jammed
paper.
Note:
If
the
paper
is
torn,
remove
all
torn
pieces
of
the
jammed
paper
from
the
finisher.
3.
Close
the
top
cover
of
the
finisher.
X
erox
®
AltaLink
®
C81XX
Series
Color
Multifunction
Printer
User
Guide
303
T
roubleshooting
302
304
