Xerox D125 System Administration Guide

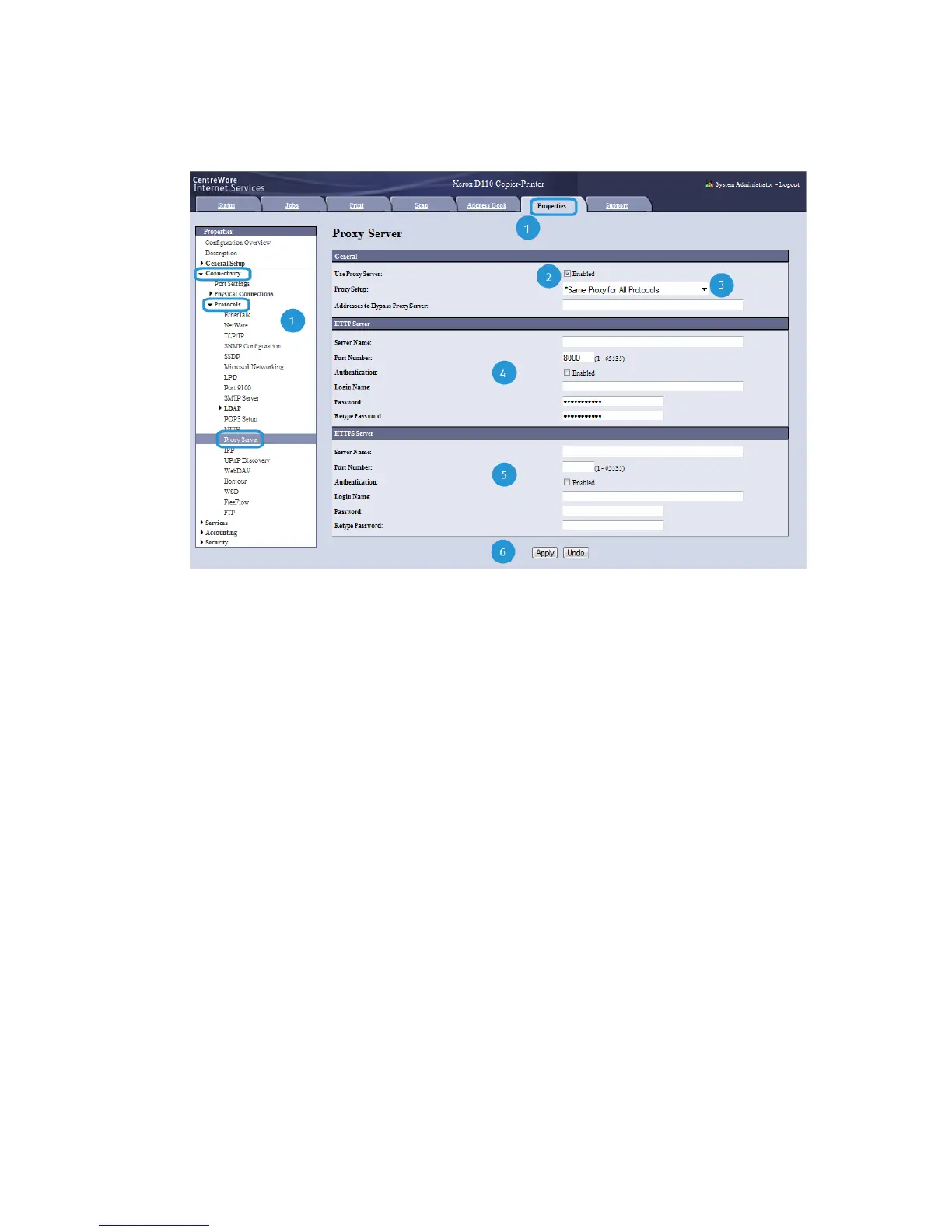

Update Proxy Server
1. In CWIS, click Properties > Connectivity > Protocols > Proxy Server. If prompted,
type the user name and password. The defaults are admin and 1111.
2. Under General, next to Use Proxy Server, select Enabled.
3. Next to Proxy Setup, select *Same Proxy for All Protocols to use the same proxy
settings for HTTP and HTTPS, or Different Proxy for each Protocol.
4. Under HTTP Server, perform the following steps:
a) Type the Server Name.
b) Type the Port Number. The default port number is 8080.
c) Next to Authentication, select Enabled if your proxy server is configured to require
authentication.
d) Type the Login Name and Password. Retype the password to confirm.
5. Under HTTPS Server, type the HTTPS proxy server information, if required.
a) Type the Server Name.
b) Type the Port Number. The default port number is 8080.
c) Next to Authentication, select Enabled if your proxy server is configured to require
authentication.
d) Type the Login Name and Password. Retype the password to confirm.
6. Click Apply.
7. Click Reboot Machine.
8-7Xerox
®
D95/D110/D125/D136 Copier/Printer
System Administration Guide
Remote services

Xerox D125 Specifications

General

Print Speed	Up to 125 ppm
Print Resolution	2400 x 2400 dpi
Standard Paper Capacity	4, 050 sheets
Maximum Paper Capacity	8, 050 sheets
Connectivity	Ethernet, USB
Duplex Printing	Standard
