Machine Description
3-2 Xerox Production Stacker
Operator Manual
Technical Specifications
Paper Capacity: maximum 11.6 inches (295 mm)
Entrance and exit height: 33.8 inches (860mm) Adjustable: +2.4 inches (60 mm) and -0.6 inches
(15 mm)
Stacker Tray range height: 8 inches to 24 inches (203 mm to 610 mm)
Paper Processing Direction:

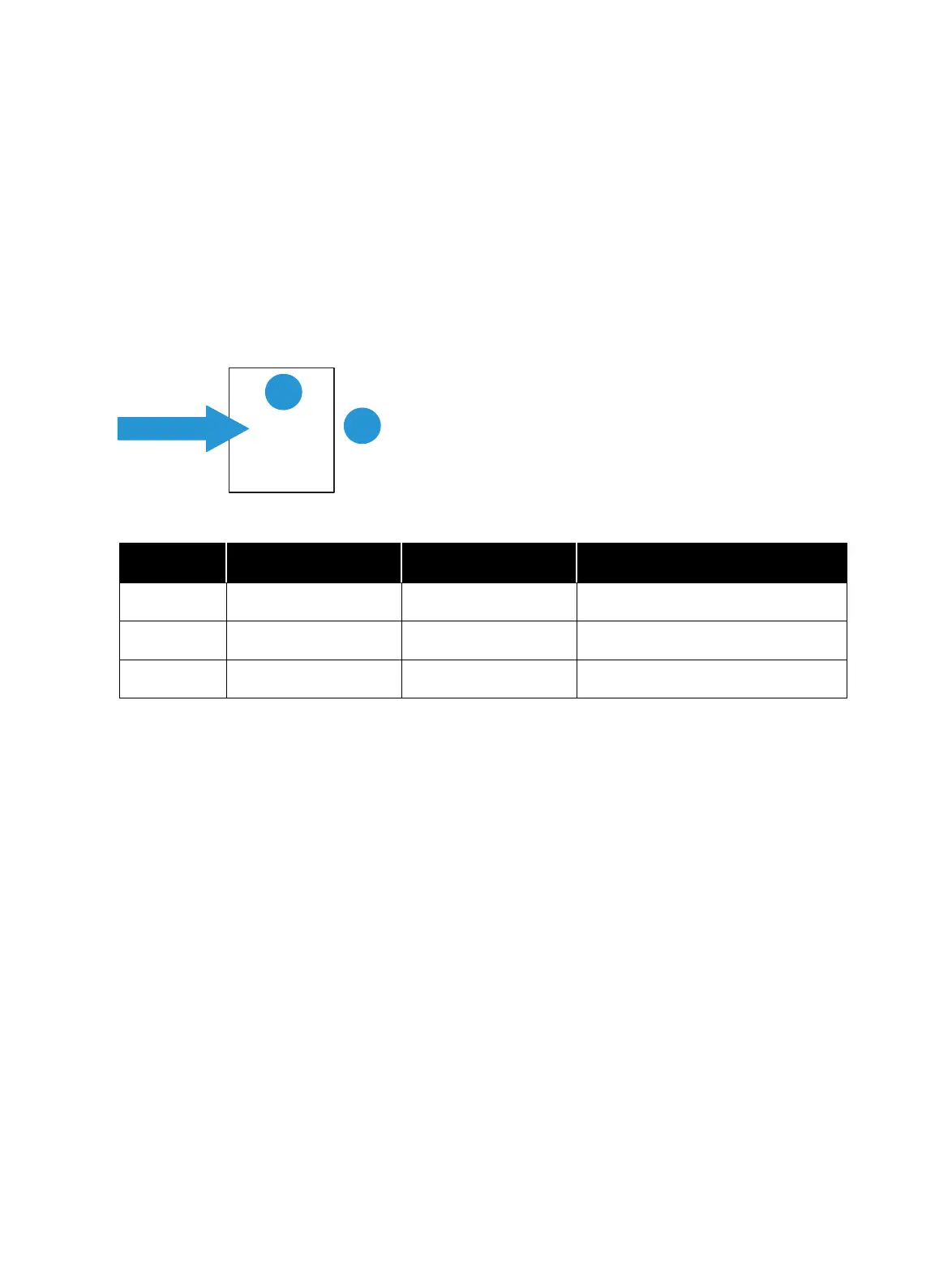

Paper Size Ranges:
Top Tray + Bypass
Stack + Offset Offset + Stack + Top Tray + Bypass
Dimension 1 1 2
Minimum 5.5 inches (139.7 mm) 7 inches (178 mm) 8 inches (203 mm)
Maximum 19.33 inches (491 mm) 19.33 inches (491 mm) 12.6 inches (320 mm)
For detailed information on paper media and optional stacker settings, refer to the Xerox
Nuvera User Guide and Training Aid CD.
Unload Operation
The XPS can automatically unload a finished stack from the stacker and present it to the
operator in front of the stacker. Once the finished stack is ejected, the Stacker Compiler can
continue stacking while still waiting for the operator to pick up the output. This is known as
“Unload While Run.”
When Xerox Nuvera needs to be unloaded, the attention light begins to flash and the shutter
doors open. Once open, the Stacker Tray moves out in front of the stacker. The Stacker Tray
raises or lowers to a height that can be preset at the Xerox Nuvera Control Console. The
attention light remains on continuously to signify that a stack is ready for pickup.
Caution: Stay clear of the Stacker Tray when it is in motion.
