Introduction
Xerox Production Stacker 1-3
Operator Manual

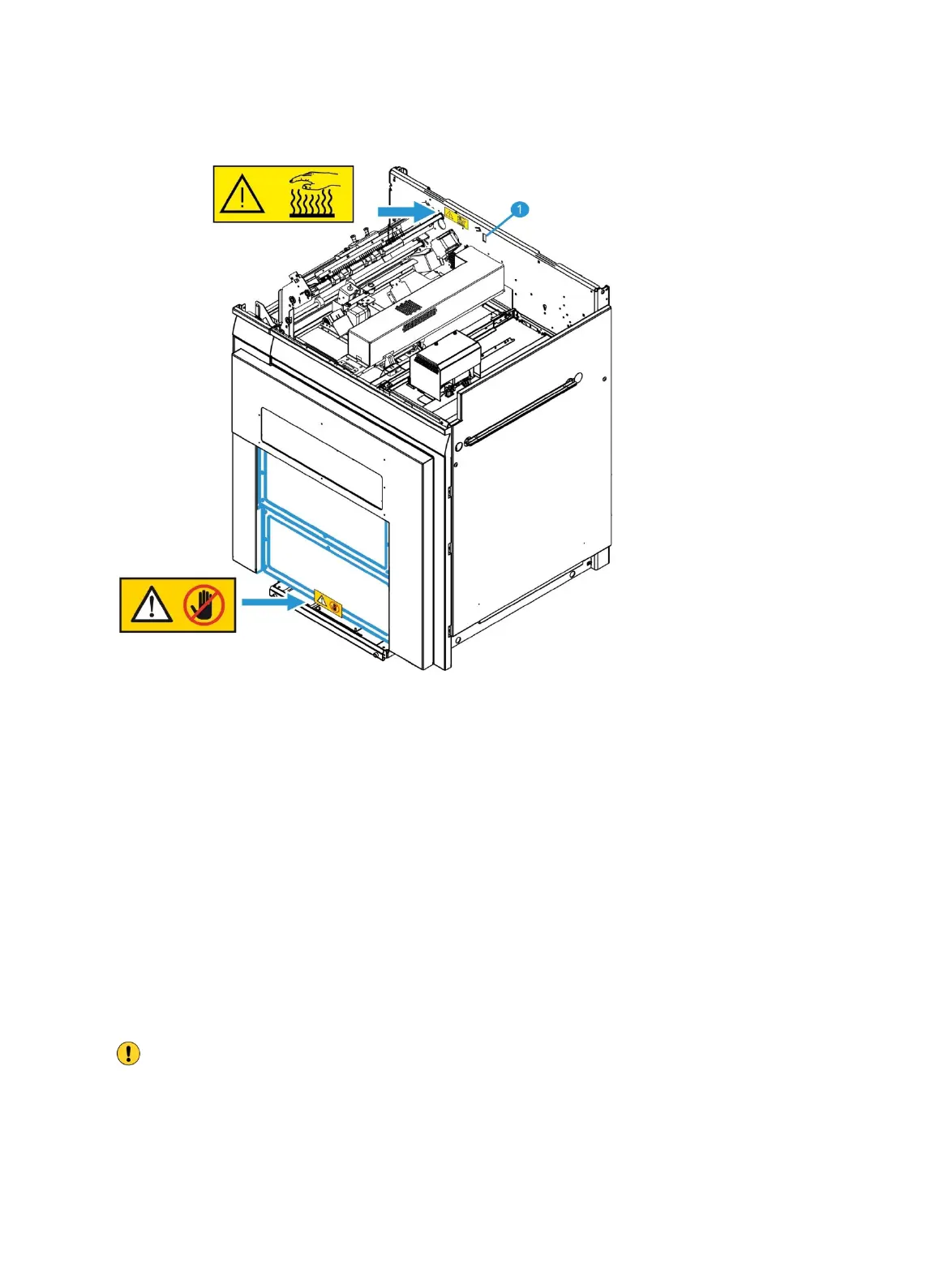

Warning Pictograms Location
1. Service Switch
Moving Parts during Stack Unloading
The XPS automatically unloads stacks of paper when the stacker reaches a full state or condition
specified by the operator. Keep the area in front of the stacker clear to allow for the unload
operation. Do not place hands or objects on or near the shutter doors when the stacker is in
operation. Observe the closed and open positions as shown below to insure enough space is
provided.
An attention light is provided on the top rear of the stacker. The light flashes as the Stacker Tray
goes in and out of the Ready-to-Unload position. The light remains on steady while the Stacker
Tray is in the unload position.
Caution: Be careful moving around the stacker. The stack may be ejected at a low height
waiting for an operator to remove the output.
