8-12 Phaser 8400/8500/8550/8560 Color Printer Service Manual
Service Parts Disassembly

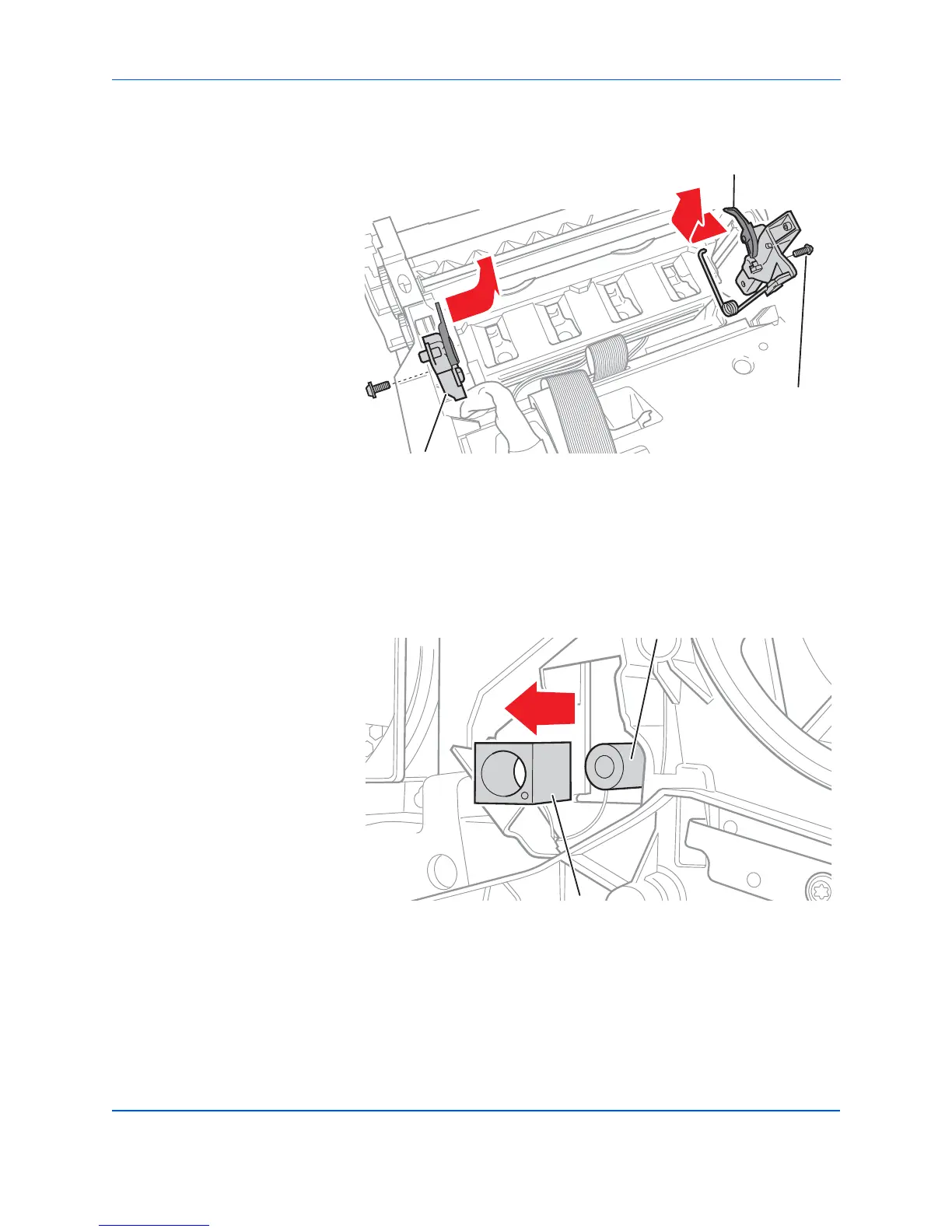

7. Remove Left and Right Printhead Restraints. First remove the screw, then
pull inward towards the Printhead, then lift up and slightly toward the rear
to remove.
N
o
t
e
Adjust Printhead position as required to remove the right restraint.
8. Remove the Roll Block on the left end of the Printhead shaft.
Caution
The Roll Block may be hot if the printer was just shut down.
s8500-075
Printhead Restraint
Printhead Restraint
When reassembling,
torque to 6 in/lbs (1 N-m)
Roll Block
Printhead Shaft
s8500-076

Xerox Phaser 8560 Specifications

General

Color	Yes
Duplex printing	No
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (color, normal)	5 s
Print speed (black, normal quality, A4/US Letter)	3 ppm
Print speed (color, normal quality, A4/US Letter)	30 ppm
Maximum internal memory	1 MB
Sound power level (standby)	33 dB
Sound pressure level (printing)	54 dB
Maximum duty cycle	85000 pages per month
Number of print cartridges	4
Page description languages	PCL 5c
Maximum input capacity	625 sheets
Paper tray 2 input capacity	525 sheets
Multi-Purpose tray input capacity	100 sheets
Power requirements	110 - 240 V, 50/60 Hz
Networking features	10/100BaseTX
Standard media sizes	140 x 216 mm - 216 x 356 mm
Power consumption (active)	230 W
Compatible operating systems	Linux, Mac OS X 10.2 +, Novell NetWare 3.x +, Windows 2000 +
Envelopes sizes	C5, DL
Maximum print size	216 x 356 mm
Paper tray media types	Bond paper, Envelopes, Glossy paper, Labels, Plain paper, Recycled paper, Transparencies
Non-ISO print media sizes	Executive (184 x 267mm), Legal (media size), Letter (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Supported network protocols (IPv4)	IPv6
Sustainability certificates	ENERGY STAR
Power consumption (PowerSave)	43 W
Storage temperature (T-T)	-30 - 60 °C
Operating temperature (T-T)	10 - 32 °C
Storage relative humidity (H-H)	10 - 95 %
Operating relative humidity (H-H)	10 - 80 %

Weight and Dimensions

Dimensions (WxDxH)	406 x 533.4 x 368 mm
