Press Components
Press Components

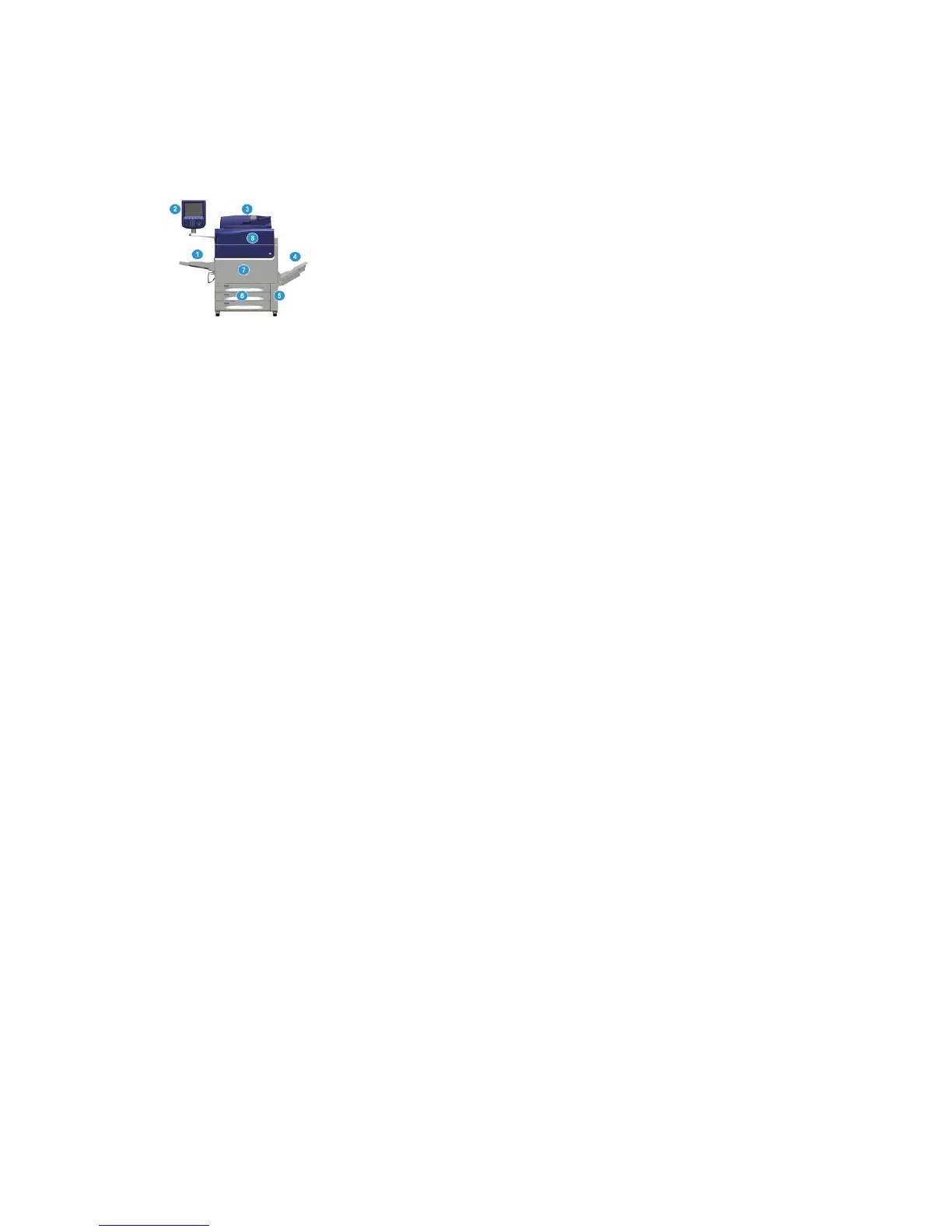

1 Bypass Tray
The Bypass Tray is also called Tray 5 or Multisheet Inserter; the tray accommodates
all types of stock in various sizes and weight ranges.
Note
The mounting location for the Bypass tray varies when optional feeding devices are
added to the machine configuration.
2 User Interface (UI)
The User Interface (UI) consists of the touch screen and control panel with the buttons
and keypad.
3 Duplex Automatic Document Feeder (DADF)
Automatically feeds 1- and 2-sided original documents. A maximum of 250 two-sided
documents can be scanned at one time.
4 Offset Catch Tray (OCT)
This tray receives the completed print job. Output print sheets can be offset for easy
separation. The maximum capacity of the OCT is determined by the tray sensor as well
as stock weight, but is approximately 500 sheets of 24 lb. (90 gsm) paper.
Note
Offsetting per set in the stack continues up to the point when the tray reaches the
maximum height or weight allowed.
5 Dry Ink/Toner Waste Bottle Door
Open this door to access the waste bottle when replacement of the bottle is required.
6 Trays 1-3
Trays 1, 2, and 3 accommodate a variety of paper sizes and weights; refer to the
Technical Specifications chapter for detailed information.
7 Front Door
Open this door to clear paper jams and to replace various Customer Replaceable Units
(CRUs).
Xerox
®
Versant
®
180 Press2-2
Quick Start Guide
Product Overview
